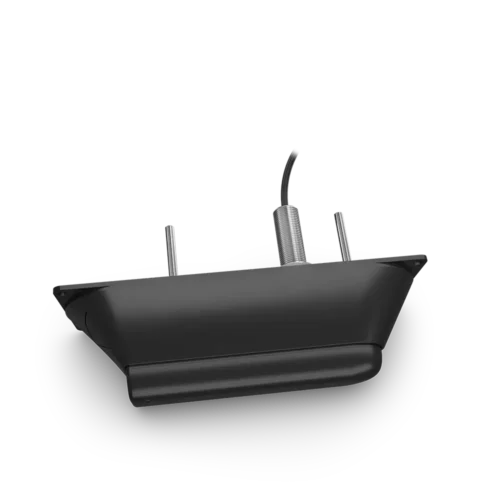

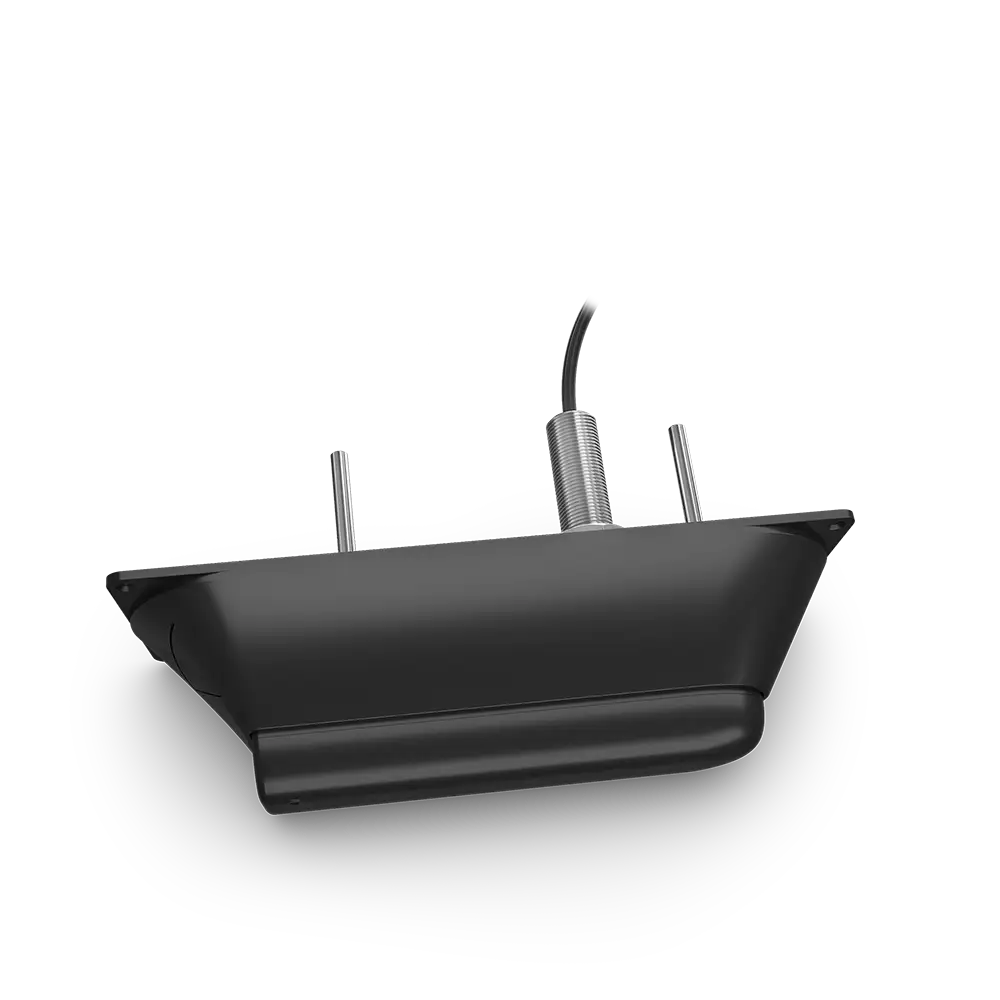

Garmin GT56UHD-TH Transducer
Price range: $1,099.99 through $2,099.99
This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.
Out of Stock (On Order)
- Description
- Additional information
- Product Specifications
- Package Includes
- Product Compatibility
- Product Guides & Documentation
- Accessories
LESS TIME FINDING. MORE TIME FISHING.

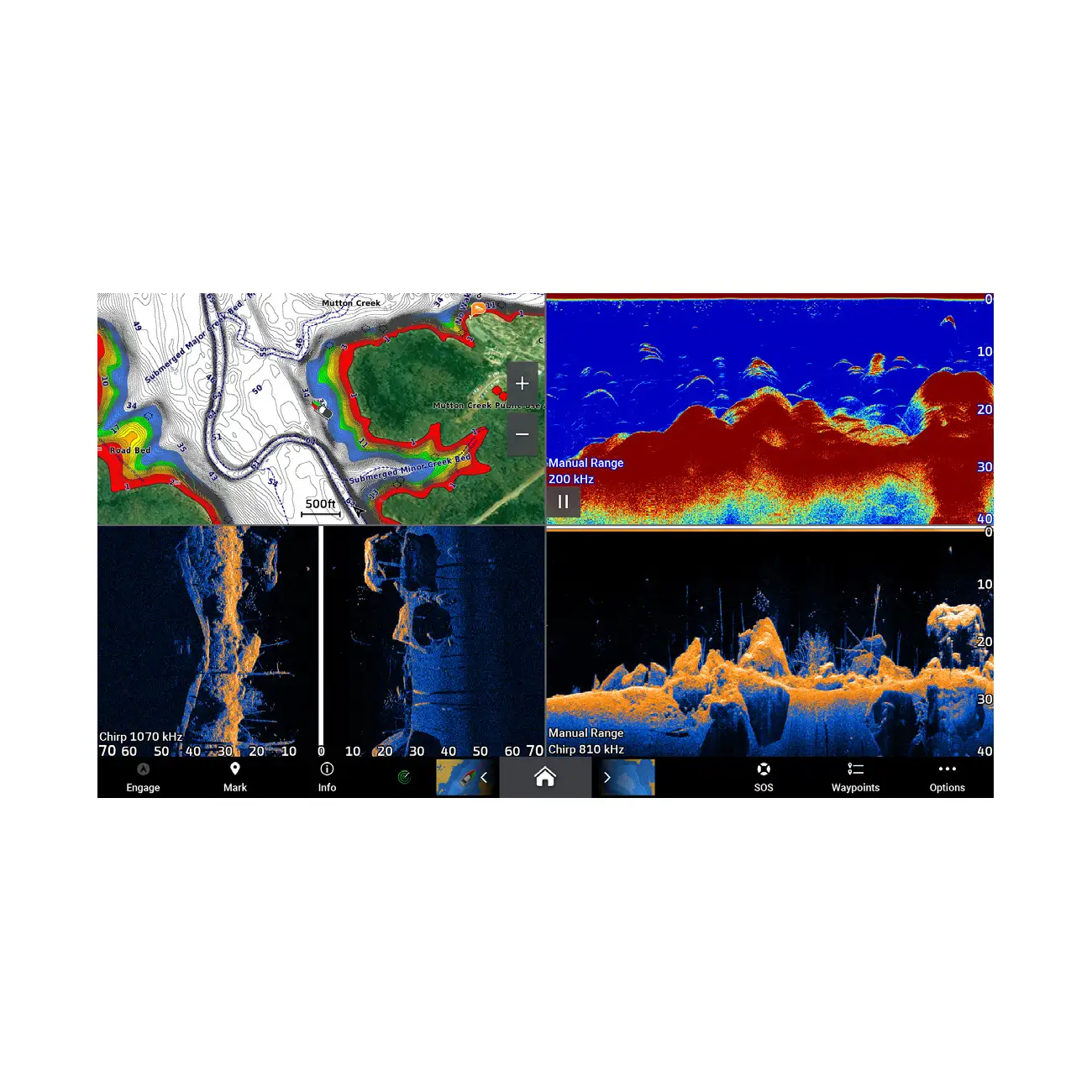

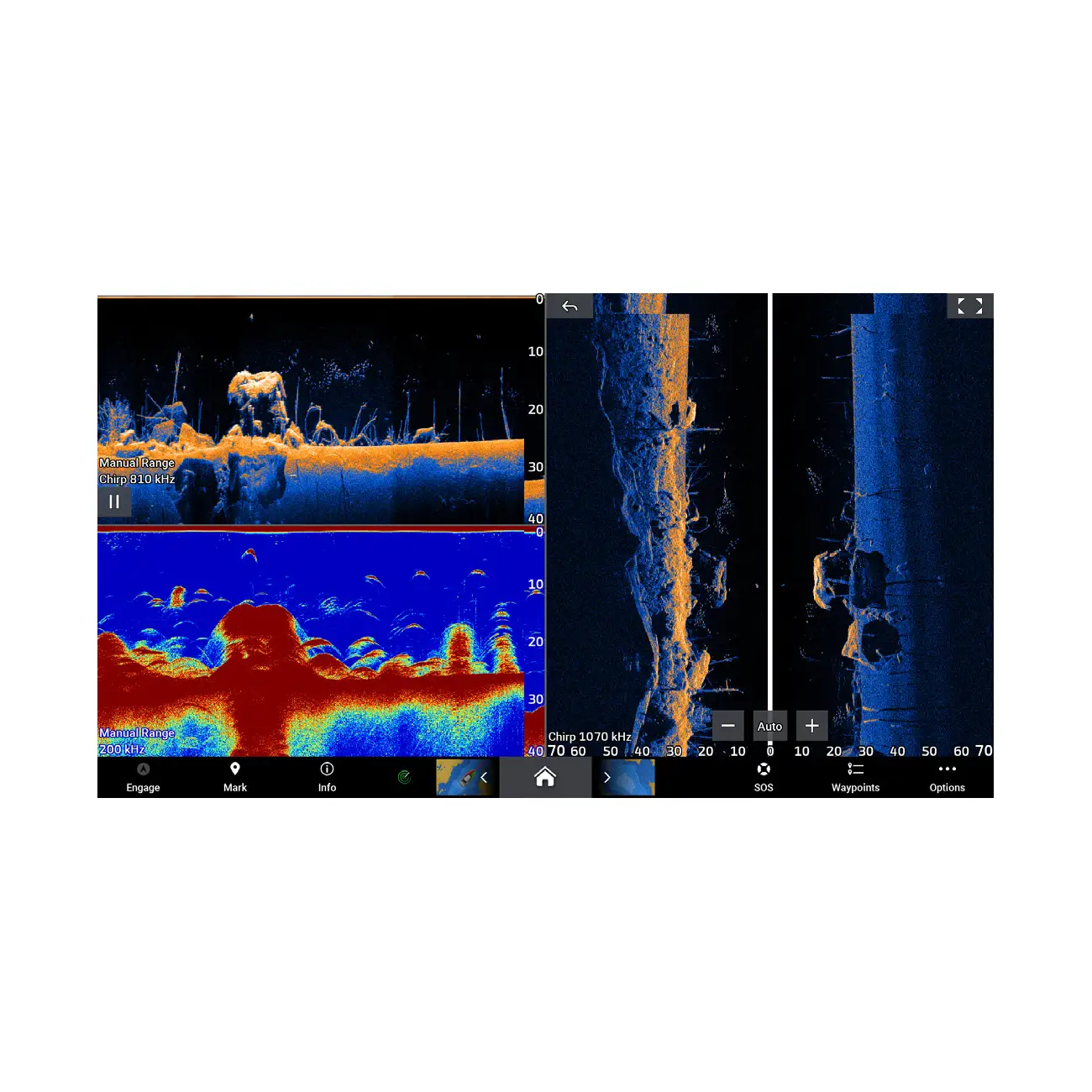

The GT56 transducer is the ultimate all-in-one sonar solution, featuring Ultra High-Definition SideVü™ scanning sonar with 20% greater range at 1000 kHz, Ultra High-Definition ClearVü™ scanning sonar and amazingly clear high wide CHIRP traditional sonar. With three scanning sonar frequencies, you’ll get top performances at all depths. High wide CHIRP traditional sonar shows crisp fish arches with minimal noise for incredible clarity. Vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
ULTRA HIGH-DEFINITION SIDEVÜ SCANNING SONAR
Get Ultra High-Definition SideVü scanning sonar with 20% greater range at 1000 kHz, Ultra High-Definition ClearVü scanning sonar and amazingly clear high wide CHIRP traditional sonar.

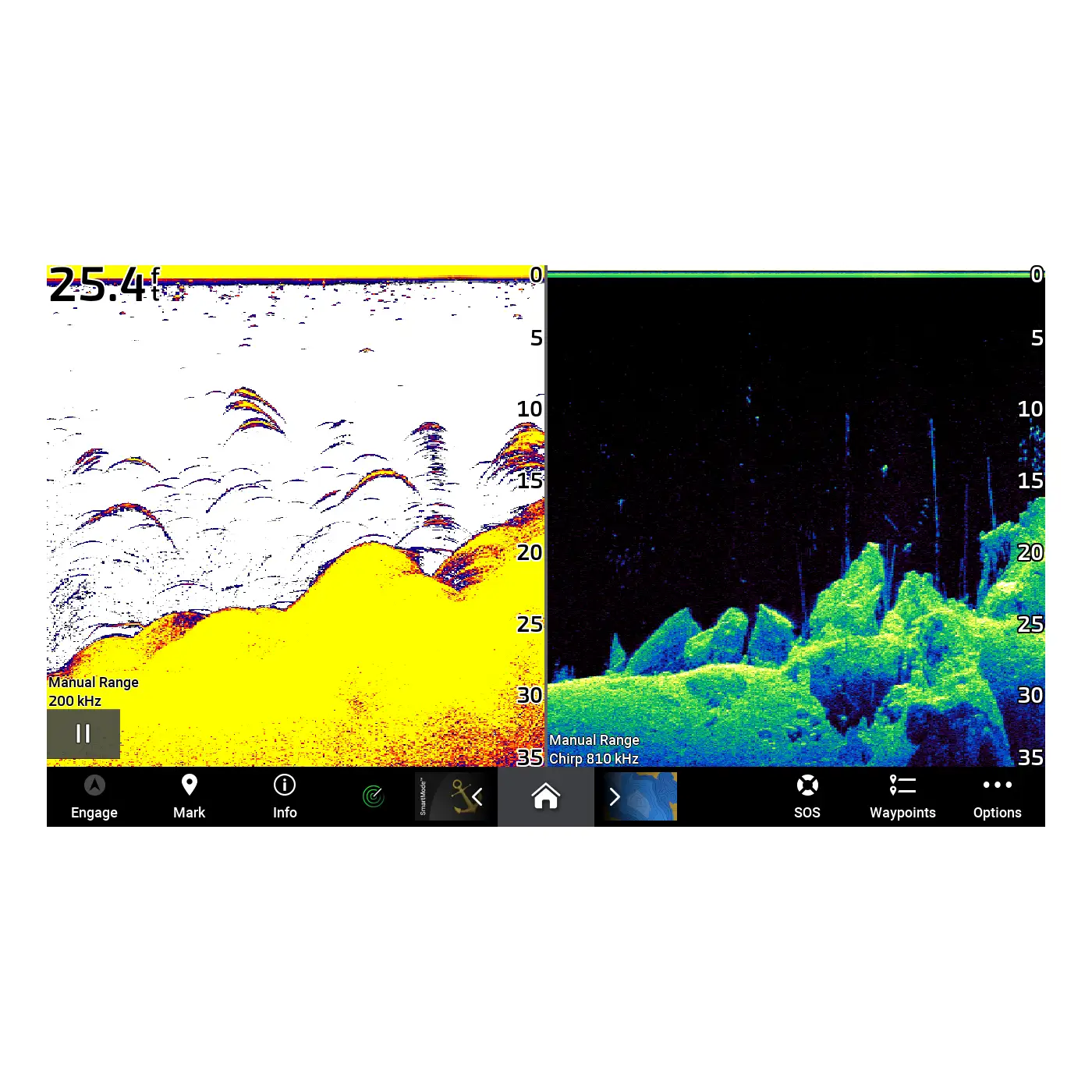

HIGH WIDE CHIRP TRADITIONAL SONAR
High wide CHIRP traditional sonar provides remarkably clear target separation and definition up to 800’ below your boat.

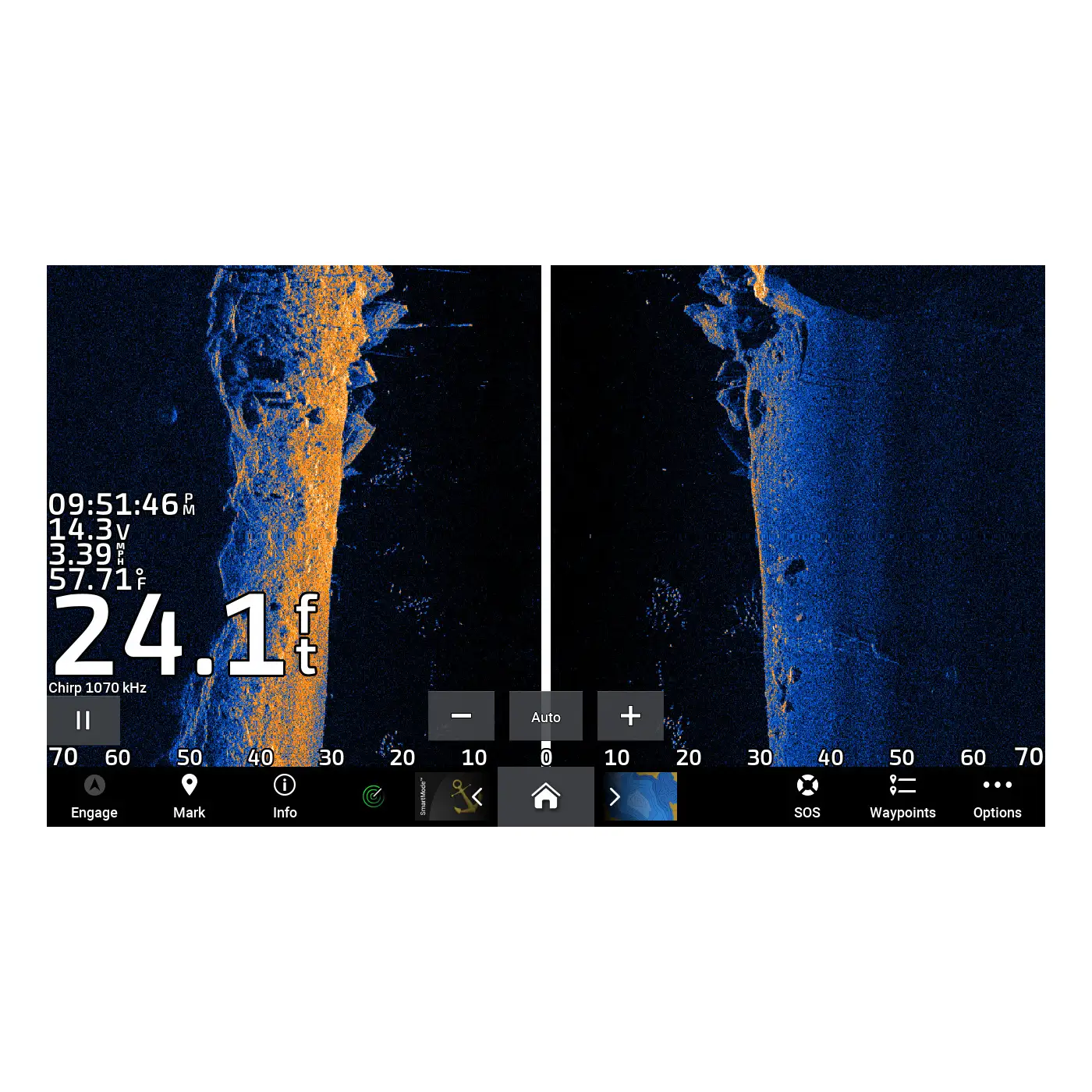

SIDEVÜ SCANNING
455 kHz SideVü scanning sonar lets you see up to 500’ on each side of your boat.
SCANNING SONARS
Three scanning sonar frequencies — 455 kHz, 800 kHz and 1000 kHz — and 500 watts of power deliver top performances at all depths.
VIVID COLOR
Vivid scanning sonar color palettes make it easy to distinguish targets and structure.
THRU-HULL MOUNTING
Thru-hull mounting options offer users better sonar readings at speed.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Garmin |
| Model | Garmin GT56UHD-TH Transducer, Garmin GT56UHD-THP Transducer Pair |
Product Specifications
Garmin GT56UH-TH Specifications:
|
FREQUENCY
|
Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
|
|---|---|
|
POWER
|
Traditional 350 W; ClearVü/SideVü 500 W
|
|
BEAMWIDTH
|
Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
|
|
MAXIMUM DEPTH
|
Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft
|
|
DEPTH/SPEED/TEMPERATURE
|
Depth and temperature
|
|
NUMBER OF PINS
|
12
|
|
CABLE LENGTH
|
25 ft
|
|
Dimensions (without mount):
|
218.5 mm x 51.8 mm x 27.7 mm
|
Package Includes
Garmin GT56UHD-TH (010-02732-10):
- GT56UHD-TH transducer
- Stainless steel stem

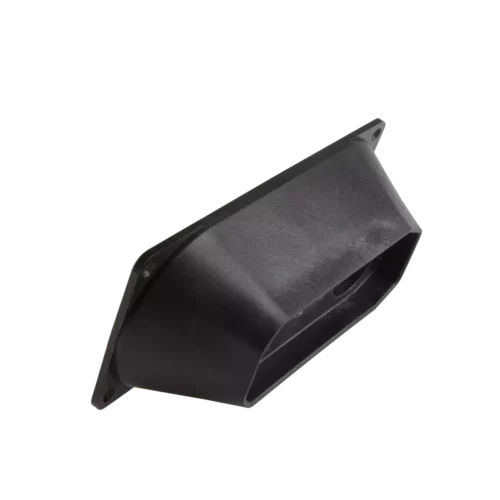

- Fairing block
- Isolation plate and bushings
- Extension cable
- Mounting hardware
- Documentation

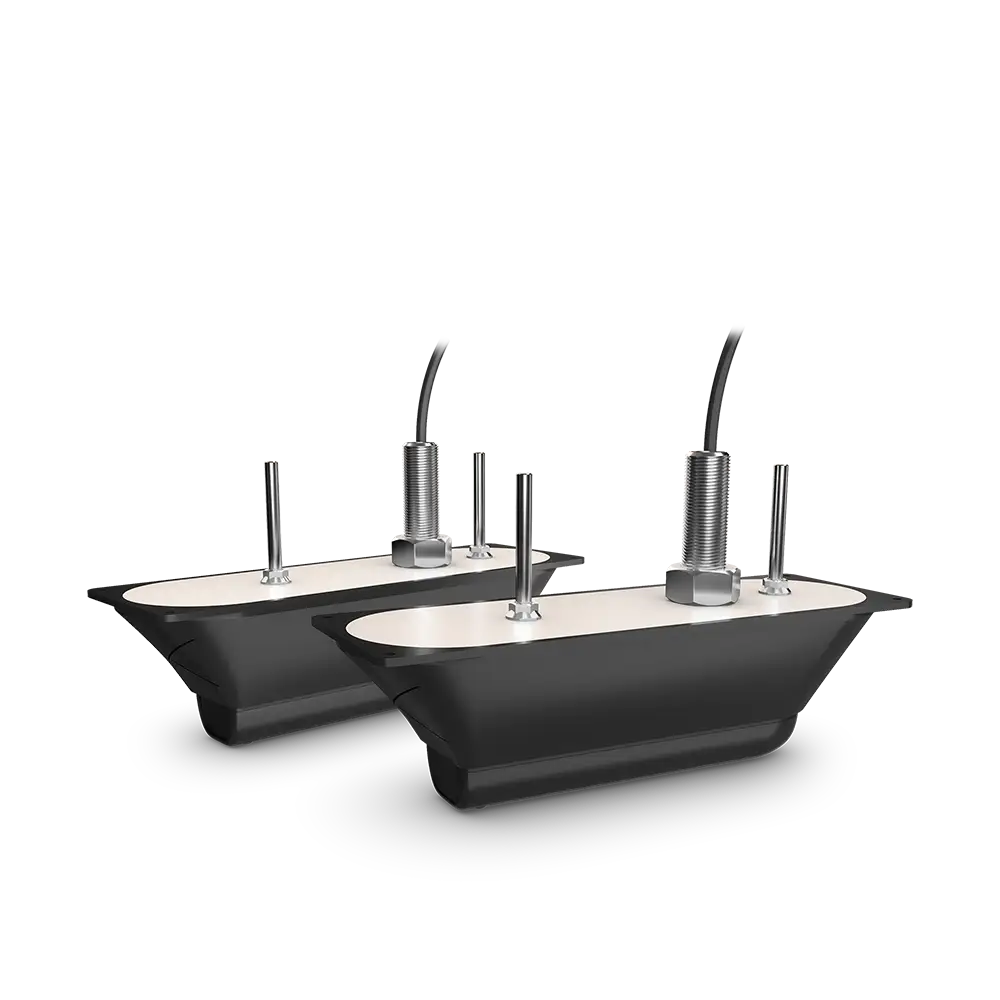

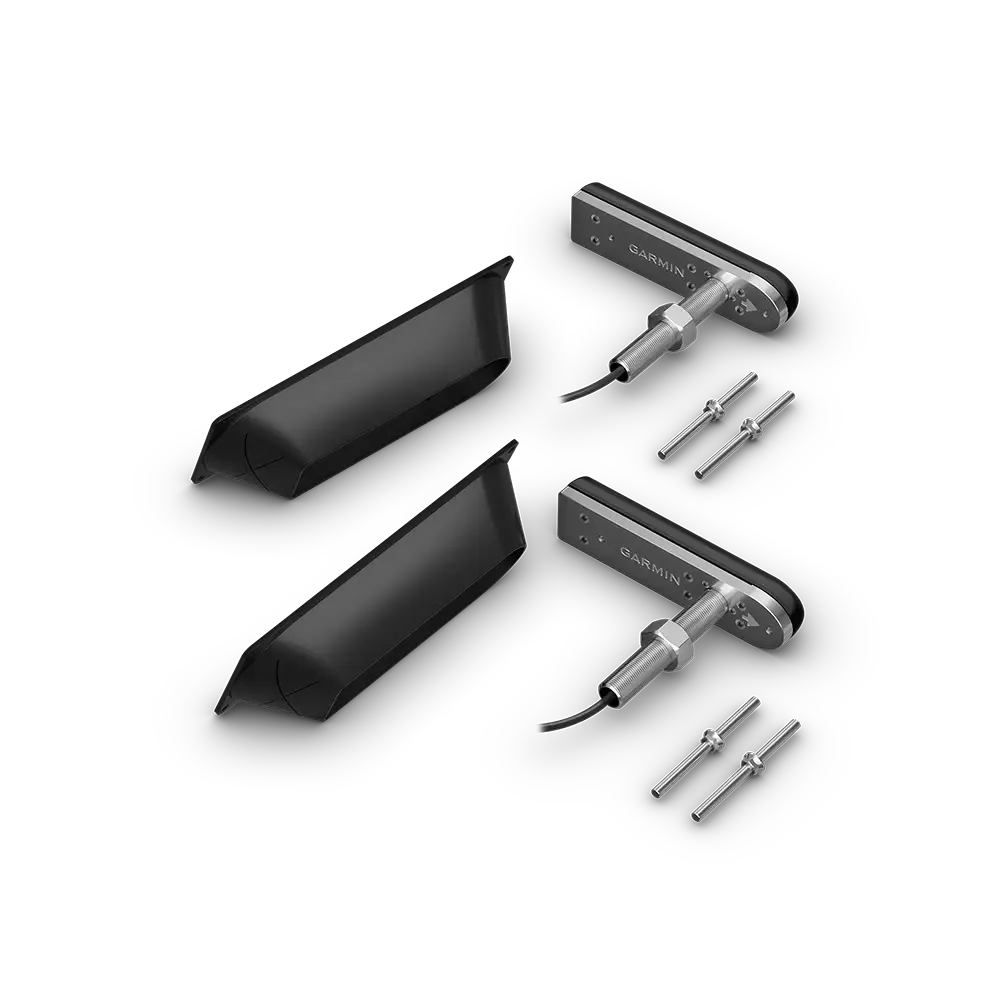

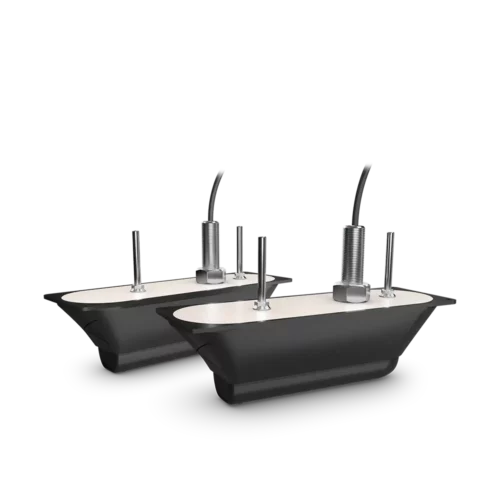

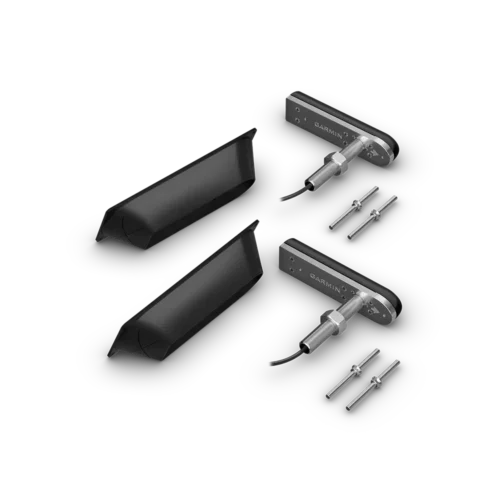

Garmin GT56UHD-THP (010-02732-11):
- 2 x GT56UHD-TH transducers
- Stainless steel stems
- Fairing blocks
- Isolation plate and bushings
- Y-cable
- Mounting hardware
- Documentation
Product Compatibility
The GT56 is compatible with the following chartplotters:
- GPSMAP® 8400xsv and 8600xsv chartplotters
- GPSMAP 7×3, GPSMAP 9×3 and GPSMAP 12×3
- ECHOMAP Ultra chartplotters
- ECHOMAP UHD sv chartplotters
