Garmin GT30-THP – Stainless Steel Thru-hull Pair DownVü/SideVü 500W

MPN: 010-01961-11

$1,789.99

(CHIRP 455/800 kHz) Scanning Transducers with Temp, for Hull Deadrises from 5° to 25° (12-pin)

Out of Stock (On Order)

Get notified when this product is back in stock

SKU: GAR-0196111 Categories: ,

(CHIRP 455/800 kHz) Scanning Transducers with Temp, for Hull Deadrises from 5° to 25° (12-pin)

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat.

These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz¹; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™ 10 scanning sonar module.

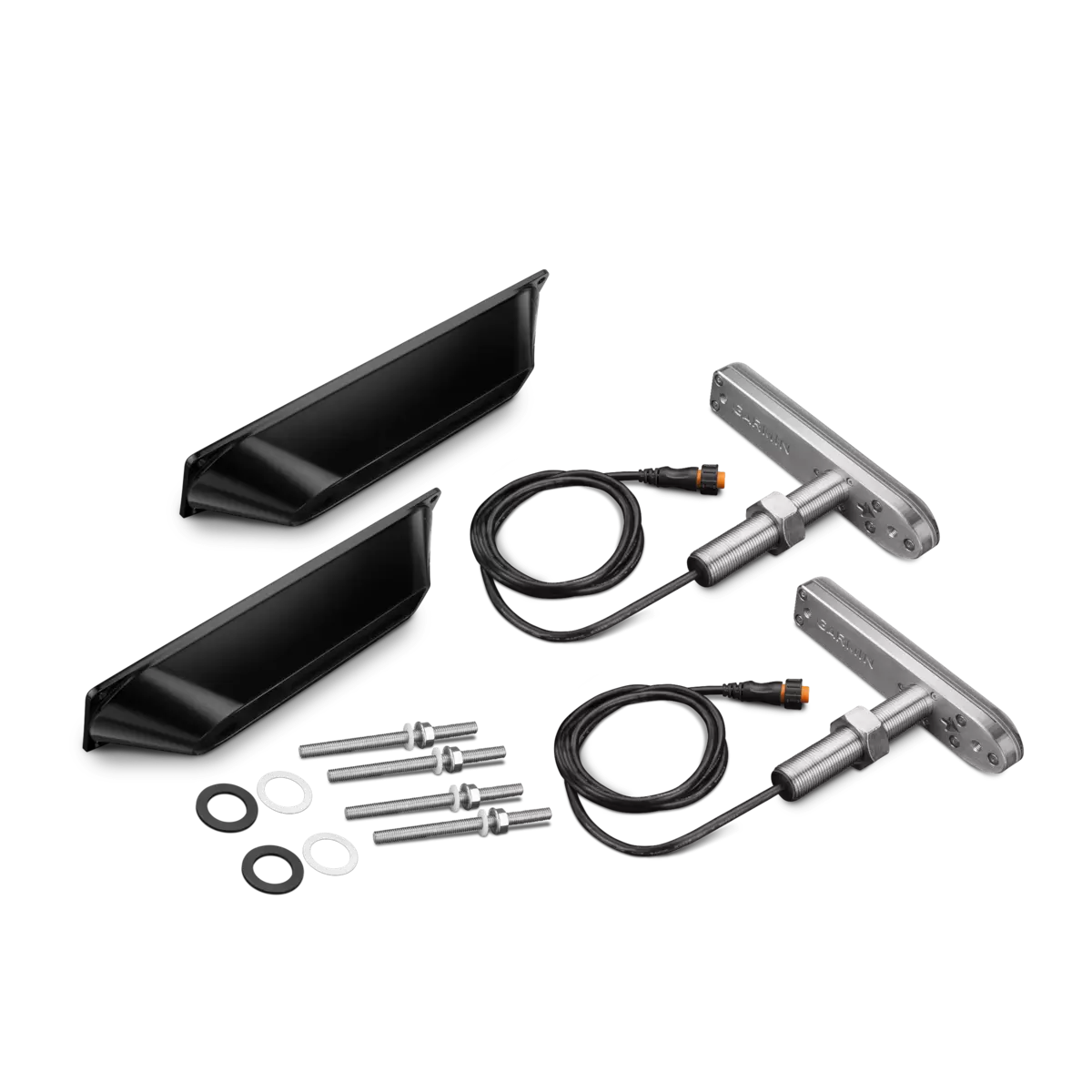

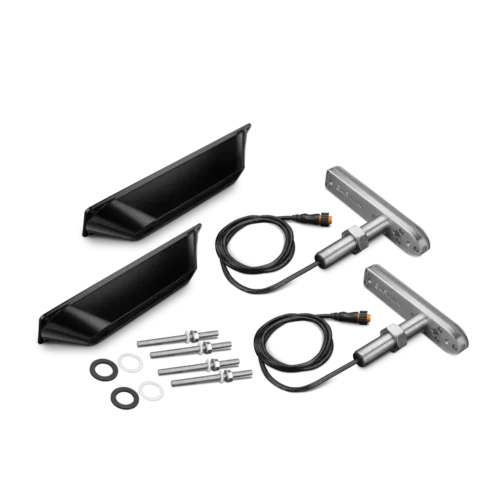

Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Weight 2.08 lbs
Dimensions 11.5 × 3.2 × 2.1 in
Brand

Garmin
Manufacturer Part Number 010-01961-11

Product Specification

Specifications
Frequency
ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Power
ClearVü/SideVü 500 W
Beamwidth
ClearVü (1.4 @ 455 kHz) & (0.8 @ 800 kHz); SideVü (1.1 @ 455 kHz) & (0.7 @ 800 kHz)
Maximum depth
ClearVü: 750 ft.; SideVü: 500 ft.
Depth/Speed/Temperature
Depth and Temperature
Number of pins
12-pin
Cable length
5 ft. + 30 ft. y-extension cable
Supported deadrise/Transom angles
Up to 25° deadrise
