Garmin GT20-TM Transducer (4-pin)
$129.99

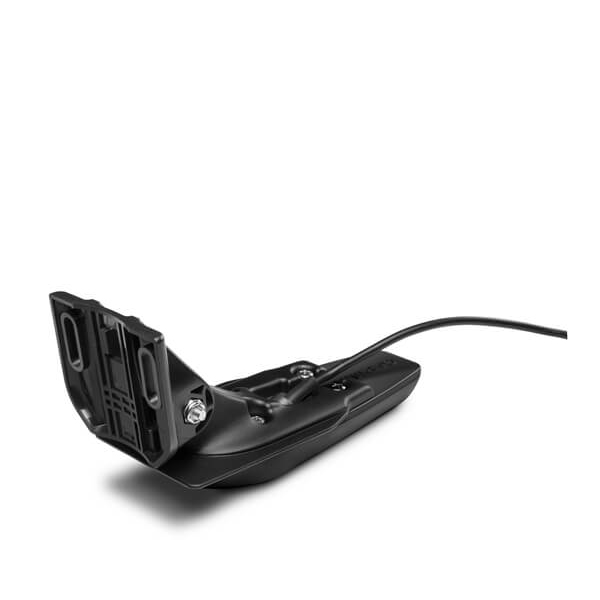

Perfect for the shallow water fisherman who want traditional and CHIRP ClearVü scanning sonar, this transom or trolling motor mounted transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below your boat.
Out of Stock (On Order)
Get notified when this product is back in stock
Perfect for the shallow water fisherman who want traditional and CHIRP ClearVü scanning sonar, this transom or trolling motor mounted transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below your boat.
The 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (ClearVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (ClearVü); and a 0 to 70 transom angle.

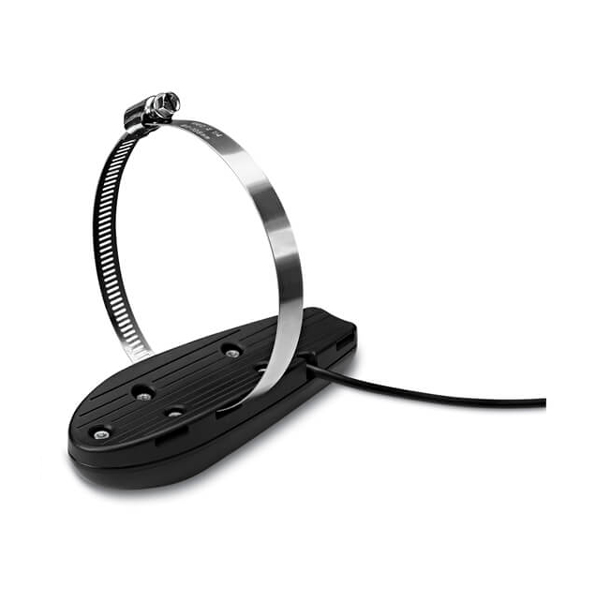

Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.
| Weight | 1.24 lbs |
|---|---|
| Dimensions | 7.5 × 6 × 3 in |
| Brand | Garmin |
Product Specifications
| FREQUENCY | Traditional 77/200; ClearVü CHIRP 455 kHz (435-475 kHz) & 800kHz (800-840 kHz) |
|---|---|
| POWER | Traditional 500 W; ClearVü 500 W |
| BEAMWIDTH | Traditional: 45°/15° ClearVü: 2.5°x53°@ 455 kHz and 1.6°x29° @ 800 kHz |
| MAXIMUM DEPTH | Traditional: 1,900 ft.; ClearVü: 750 ft. |
| DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| NUMBER OF PINS | 4-pin |
| CABLE LENGTH | 20 ft. |
| SUPPORTED DEADRISE/TRANSOM ANGLES | 0°-70° degree transom |
Compatible Devices
Compatible Devices:
- Garmin echo 151dv, 201dv, 301dv, 551dv
- Garmin echoMAP 42dv, 43dv, 44dv
- Garmin echoMAP 53dv, 54dv
- Garmin echoMAP 73dv, 74dv
- Garmin echoMAP 73sv, 74sv
- Garmin echoMAP 93sv, 94sv
- Garmin echoMAP CHIRP 4dv series
- Garmin echoMAP CHIRP 5dv series
- Garmin STRIKER 4dv
- Garmin STRIKER 5dv
- Garmin STRIKER 7dv
- Garmin STRIKER 7sv
- Garmin STRIKER Plus Series
- Garmin STRIKER Vivid 7sv
- Garmin echoMAP Plus cv Series
