Garmin GPSMAP 943xsv & 1243xsv
These items have been discontinued. They are no longer available.

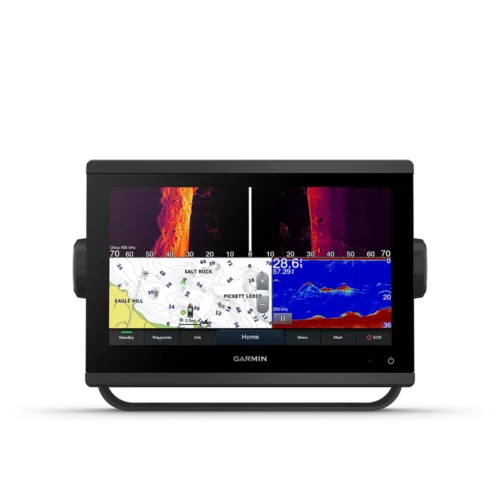

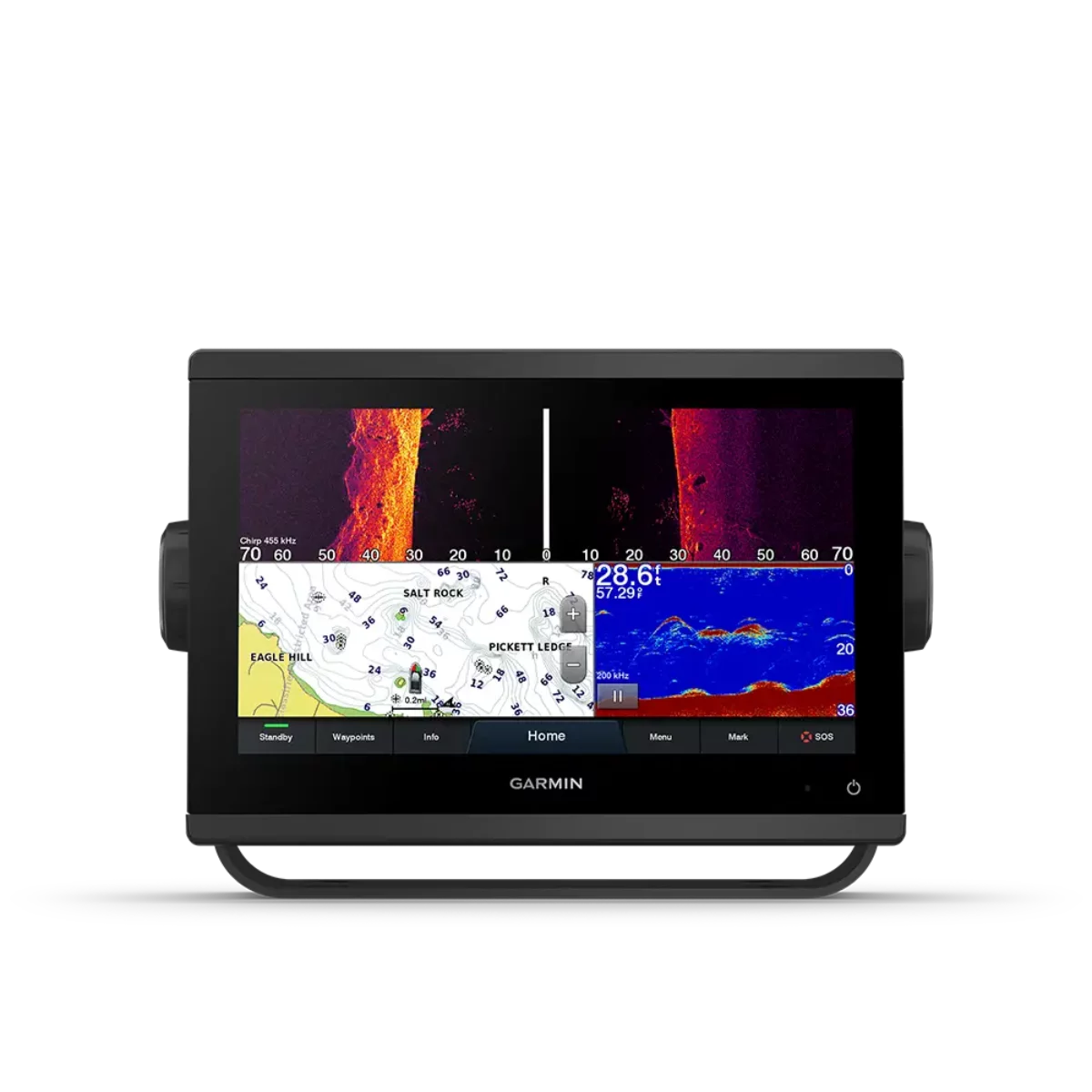

The GPSMAP 943xsv and 1243xsv chartplotter series have higher resolution displays with more pixels than previous generation GPSMAP devices.
Out of Stock (On Order)
- Description
- Additional information
- Product Video
- Specifications
- Product Comparison
- Package Includes
- Product Guides & Documentation
- Accessories
SideVu, ClearVu and Traditional CHIRP Sonar with BlueChart g3 (U.S., Canada and Bahamas) and U.S. LakeVu g3 Mapping
The new GPSMAP 743xsv, 943xsv and 1243xsv chartplotter series have higher resolution displays with more pixels than previous generation GPSMAP devices. With a compact footprint and higher processing power, they seamlessly integrate into your Garmin marine ecosystem.
These chartplotters also feature built-in Ultra High-Definition SideVĂĽ and ClearVĂĽ scanning sonar in new vivid sonar color palettes and support 1 kW
CHIRP traditional sonar.

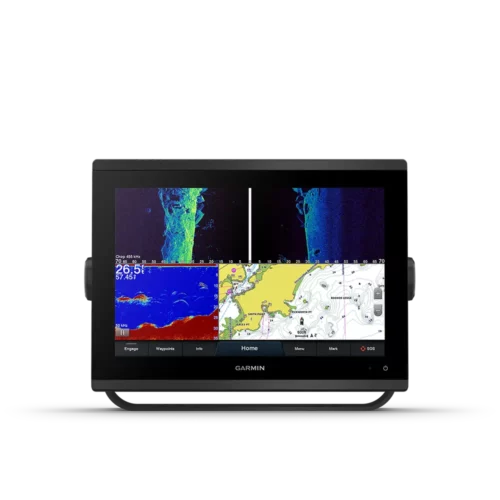

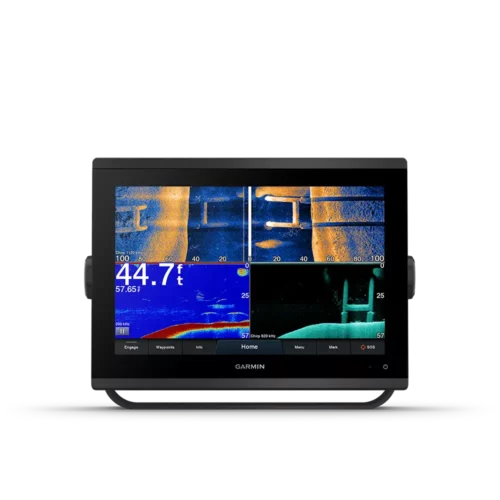

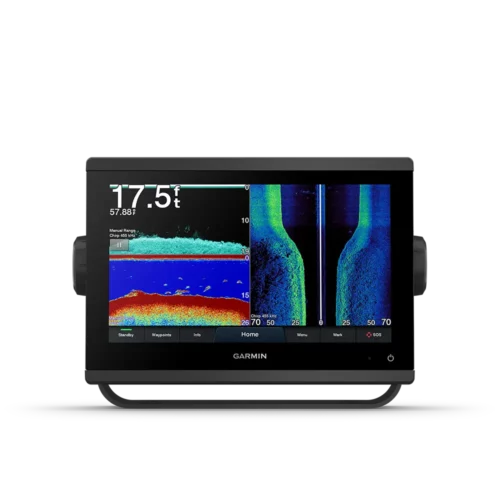

ULTRA HIGH-DEFINITION SCANNING SONAR
Get built-in Ultra High-Definition SideVĂĽ and ClearVĂĽ scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 743xsv, 943xsv & 1243xsv also support 1 kW CHIRP traditional sonar capabilities.
PANOPTIX™ SONAR SUPPORT
Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
FASTER, SHARPER, SMARTER
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit these plotters in a wider range of dash configurations.
IMPROVED DISPLAY OPTICS
On GSPMAP 743xsv: New higher-resolution 7” displays offer improved sunlight readability with 60% more pixels than previous-generation 7” GPSMAP devices. – Discontinued.
On GPSMAP 943xsv: New higher-resolution 9” displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9” GPSMAP devices.
On GPMAP 1243xsv: New 12” IPS displays offer improved sunlight readability and wide-angle visibility over previous-generation GPSMAP 12” Plus devices.
GARMIN SAILASSISTÂ SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and moreÂł.

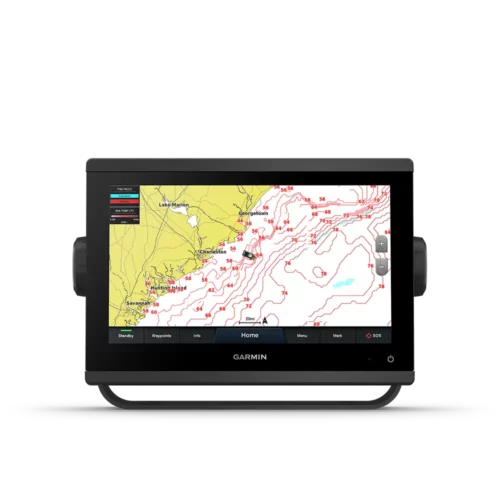

PRELOADED MAPPING
Experience unparalleled coverage and detail with preloaded BlueChart g3 coastal charts of U.S., Canada and Bahamas and U.S. LakeVĂĽ g3 inland maps featuring integrated Garmin and Navionics content and Auto GuidanceÂł technology.
OPTIONAL BLUECHARTÂ G3 VISIONÂ CHARTS
These optional charts offer the best of Garmin and Navionics data, Auto Guidance4 technology and other premium navigation features.
OPTIONAL RADAR BUNDLE
To help you avoid weather and traffic on the water, the compact 4 kWÂ GMRÂ 18 HD+Â dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.
GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
NMEA 2000Â AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.
ACTIVECAPTAIN® APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more4.
INTEGRATED ANT TECHNOLOGY
Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.

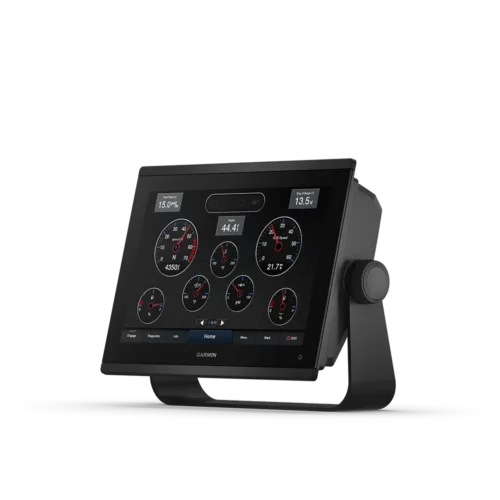

J1939 CONNECTIVITY
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
ONEHELMÂ FEATURE
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Garmin |
| Model | Garmin GPSMAP 743xsv, Garmin GPSMAP 943xsv, Garmin GPSMAP 1243xsv |
Product Video
Specifications
Garmin GPSMAP 743xsv, 943xsv & 1243xsv Specs
GPSMAP 743xsv |
GPSMAP 943xsv |
GPSMAP 1243xsv |
|
|---|---|---|---|
General |
|||
| Dimension | 7.6″ x 5.5″ x 2.9″ (19.2 x 14.0 x 7.4 cm) | 9.2″ x 6.4″ x 3″ (23.3 x 16.2 x 7.6 cm) | 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm) |
| Touchscreen | âś” | âś” | âś” |
| Input | Touchscreen | Touchscreen | Touchscreen |
| Display Size | 6.1″ x 3.5″; 7.0″ diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) | 7.8″ x 4.4″; 9.0″ diagonal (19.9cm x 11.2cm; 22.9 cm diagonal) | 10.3″ x 6.4″; 12.1″ diagonal (26.2 x 16.3 cm; 30.7 cm diagonal) |
| Display Resolution | 1024 x 600 pixels | 1280 x 720 pixels | 1280 x 800 pixels |
| Display Type | WSVGA | WXGA | WXGA |
| Weight | 2.8 lbs (1.3 kg) | 3.6 lbs (1.6 kg) | 6.6 lbs (3.0 kg) |
| Waterproof | IPX7 | IPX7 | IPX7 |
| Mounting Options | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
Maps & Memory |
|||
| Accepts Data Cards | 2 microSD cards (back of unit) | 2 microSD cards (back of unit) | 2 microSD cards (back of unit) |
| Waypoints | 5000 | 5000 | 5000 |
| Track points | 50,000 | 50,000 | 50,000 |
| Tracks | 50 saved tracks | 50 saved tracks | 50 saved tracks |
| Navigation Routes | 100 | 100 | 100 |
Sensors |
|||
| Has built-in receiver | âś” | âś” | âś” |
| Receiver | 10 Hz | 10 Hz | 10 Hz |
| NMEA 2000 Compatible | âś” | âś” | âś” |
| NMEA 0183 Compatible | âś” | âś” | âś” |
| GPS | âś” | âś” | âś” |
| GLONASS | âś” | âś” | âś” |
| Galileo | âś” | âś” | âś” |
| Supports WAAS | âś” | âś” | âś” |
Built-in Maps |
|||
| Built-in Auto Guidance | âś” | âś” | âś” |
| BlueChart (coastal) | âś” | âś” | âś” |
| LakeVu (inland) | âś” | âś” | âś” |
| (Sounder) Tide tables | âś” | âś” | âś” |
Optional Map Support |
|||
| LakeVĂĽ g3 | âś” | âś” | âś” |
| LakeVĂĽ g3 Ultra | âś” | âś” | âś” |
| Garmin Navionics+™ | ✔ | ✔ | ✔ |
| Garmin Navionics Vision+™ | ✔ | ✔ | ✔ |
| (Sounder) TOPO | âś” | âś” | âś” |
| Standard Mapping | âś” | âś” | âś” |
| Garmin Quickdraw Contours | âś” | âś” | âś” |
| Raster chart support | âś” | âś” | âś” |
Chartplotter Features |
|||
| Smart Mode Compatible | âś” | âś” | âś” |
| AIS | âś” | âś” | âś” |
| DSC | âś” | âś” | âś” |
| Supports Fusion-Link™ compatible radios | ✔ | ✔ | ✔ |
| GSD Black Box Sonar Support | âś” | âś” | âś” |
| GCV Black Box Sonar Support | âś” | âś” | âś” |
| ActiveCaptain® compatible | yes | yes | yes |
| GRID (Garmin Remote Input Device) compatible | âś” | âś” | âś” |
| Wireless Remote Compatible | âś” | âś” | âś” |
| Sailing Features | âś” | âś” | âś” |
| Spoken audio alerts | âś” | âś” | âś” |
| OneHelm support | âś” | âś” | âś” |
Sonar Features & Specifications |
|||
| Displays sonar | âś” | âś” | âś” |
| Power output | 1 kW | 1 kW | 1 kW |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVĂĽ | built-in 260/455/800/1000/1200 kHz | built-in 260/455/800/1000/1200 kHz | built-in 260/455/800/1000/1200 kHz |
| (Sounder) SideVĂĽ | built-in 260/455/800/1000/1200 kHz | built-in 260/455/800/1000/1200 kHz | built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | ✔ | ✔ | ✔ |
| LiveScope | âś” | âś” | âś” |

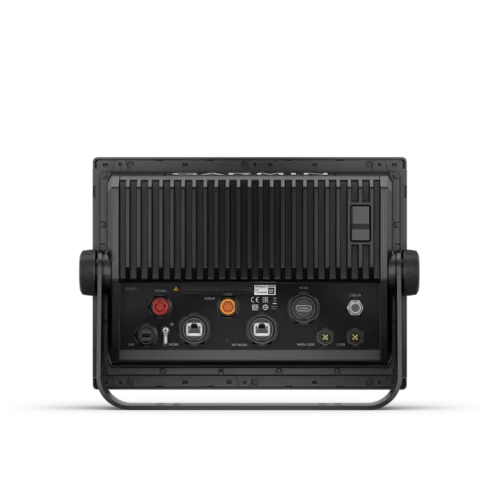

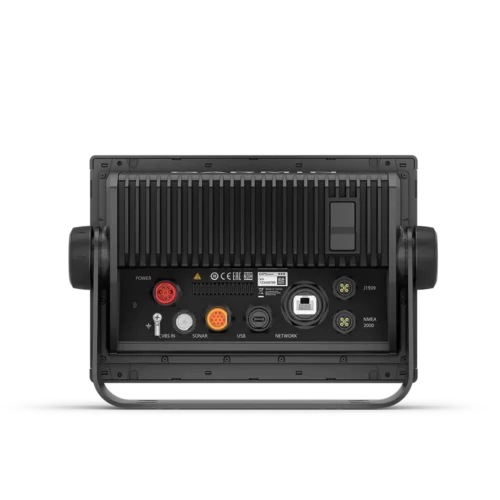

Connections |
|||
| NMEA 2000 ports | 1 | 1 | 1 |
| Connections NMEA0183 Input Ports | 1 | 1 | 1 |
| NMEA 0183 input (Tx) ports | 1 | 1 | 1 |
| Video input ports | 1 (BNC composite) | 1 (BNC composite) | 1 (BNC composite) |
| Video output ports | x | x | 1 HDMI |
| J1939 ports | 1 | 1 | 1 |
| Garmin Marine Network Ports | 1 | 1 | 2 |
| 12-pin transducer ports | 1 | 1 | 1 |
| USB ports | âś” | âś” | âś” |
| BNC external GPS antenna port | âś” | âś” | x |
| BLUETOOTH® calling | ✔ | ✔ | ✔ |
| ANT+ (Connectivity) | âś” | âś” | âś” |
| Garmin Wi-Fi network (local connection) | âś” | âś” | âś” |
Electrical Features |
|||
| Power Input | 10 to 32 Vdc | 10 to 32 Vdc | 10 to 32 Vdc |
| Typical current draw at 12 Vdc | 1.18 A | 1.37 A | 1.68 A |
| Maximum current draw at 12 Vdc | 2.96 A | 3.20 A | 3.56 A |
| Maximum power usage at 10 Vdc | 35.9W | 40.2W | 43.0W |
Product Comparison
How are the new Garmin GPSMAP 743xsv, 943xsv & 1243xsv different from previous models?
- DISPLAY: GPSMAP 743xsv and 943xsv include new higher-resolution touchscreen displays compared to previous chartplotters; GPSMAP 743xsv offers 60% more pixels and the GPSMAP 943xsv offers 50% more
- IPS DISPLAY: GPSMAP 943xsv and 1243xsv offer IPS displays with touchscreen for wider viewing angles and superior clarity
- IMPROVED PROCESSOR: GPSMAP 743xsv and 943xsv offer nearly twice the processing power of previous-generation GPSMAP 742xs Plus and 942xs Plus devices
- DESIGN: Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations
- SONAR CAPABILITIES: Built-in Ultra High-Definition SideVĂĽ and ClearVĂĽ scanning sonars with high-contrast vivid color palettes to help distinguish fish from structure as well as 1 kW CHIRP traditional sonar and more
Package Includes
GPSMAP 743xsv (010-02365-03) Package Includes:
- GPSMAP 743xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
GPSMAP 943xsv (010-02366-03) Package Includes:
- GPSMAP 943xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
GPSMAP 1243xsv (010-02367-03) Package Includes:
- GPSMAP 1243xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
