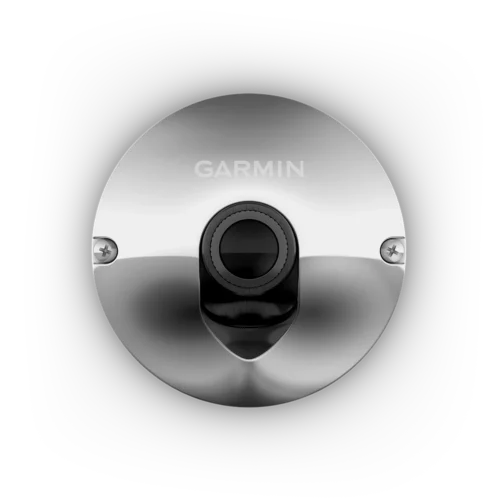

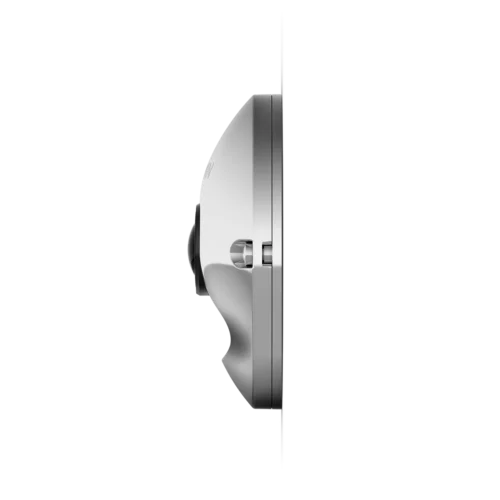

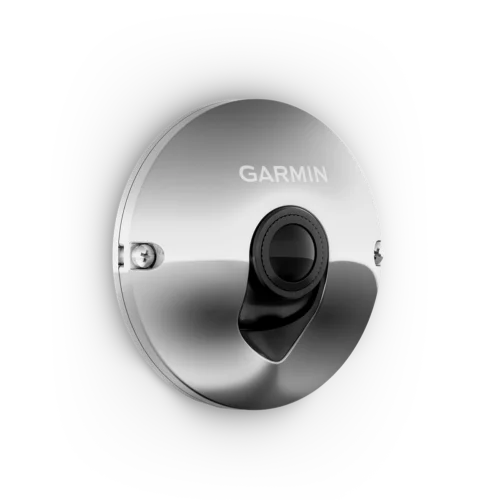

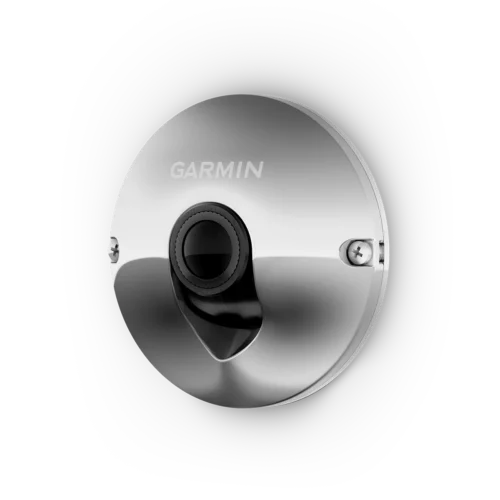

Garmin GC 255 Flush-Mount Marine Camera
$1,349.99
Take the stress out of docking your boat with a high-resolution marine camera. Enhance proximity awareness and confidence at the dock and in close quarters with the low-profile GC 255 flush-mount camera.
Out of Stock (On Order)
Get notified when this product is back in stock
Enhance proximity awareness and confidence at the dock with the GC 255 flush-mounted camera. Use the distance markers (professional calibration required) or user-defined guidance lines to help avoid obstacles in the marina. See video feeds in high definition from multiple views, including FishEye and standard views with low-light capabilities. The GC 255 can even display a BirdsEye camera view (professional calibration required). GC 255 comes in a rugged stainless steel low-profile housing. Installation and setup are easy on the Garmin Marine Network or Garmin BlueNet™ network. See up to 4 camera feeds simultaneously on your compatible chartplotter, or view the video on multiple chartplotters connected to your marine network. Take a closer look at the video with digital zoom, or get a different perspective with digital pan.
GUIDANCE LINES
Set up your own guidance lines for more confidence avoiding obstacles in the marina.
DISTANCE MARKERS
Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects.
RUGGED INSTALLATION
Thru-hull flush mounting ensures sleek and rugged installation.
THREE CAMERA VIEWS
Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view¹.
MULTIPLE CAMERA FEEDS
See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.
SEE WHAT YOU WANT
Take a closer look with digital zoom, or get a different perspective with digital pan.
¹Professional calibration required
²1080p resolution available on select chartplotters only
| Weight | 4.1 lbs |
|---|---|
| Dimensions | 12.5 × 7.2 × 4.9 in |
| Brand | Garmin |
Specifications
Garmin GC 255 Specs
- Unit dimensions: 3.2” x 3.2” x 3.3” (8.1 x 8.1 x 8.38 cm), body; 3.2″ x 3.2″ x 0.95″ (8.1 x 8.1 x 2.4 cm)
- Weight: 22.9 oz (650 g)
- Hardwire power: 12V/24V
- Operating current: 300 mA at 12VDC; 200 mA at 24VDC
- Power consumption: 4.5 W
- Connection to chartplotter: IP
- Versatile mounting options: thru-hull installation
- Rugged housing: yes (high impact)
- Install below rub rail: yes
- Setup: plug-and-play
- Water rating: IPX7
- Video resolution: 1920 x 1080 pixels*
- Video output: H.264 over GMN and BlueNet™
- Images: Standard and reverse
- Selectable views: FishEye, standard, BirdsEye (OEM calilbrated)
- Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
- Viewing angle (H/V): 160°H/90°V
- Operating temperature: -20°C to +60°C
- Scanning system: progressive scan
- Day/night operation: RGB mode full-time
*1080p resolution available on select chartplotters only
Package Includes
In the Box:
- GC 255 flush mount camera
- GVA 10 with integrated power and network cables
- Network adapter cable (500 mm)
- Video coaxial cable (8 m)
- Mounting hardware
- Documentation
Compatible Devices
Compatible Garmin Chartplotters
- GPSMAP 1022, 1022xsv, 1042xsv
- GPSMAP 1222, 12222xsv, 1242xsv
- GPSMAP 1223, 1223xsv, 1243, 1243xsv
- GPSMAP 1623, 1623xsv, 1643, 1643xsv
- GPSMAP 723, 723xsv, 743, 743xsv
- GPSMAP 8410, 8410xsv, 8412, 8412xsv, 8416, 8416xsv
- GPSMAP 8610, 8610xsv, 8612, 8612xsv, 8616, 8616xsv
- GPSMAP 8417 MFD, 8422 MFD, 8424 MFD
- GPSMAP 8700 Black Box
- GPSMAP 9000 Series
- GPSMAP 9019, 9022, 9024, 9027, 9219, 9222, 9224, 9227
- GPSMAP 923, 923xsv, 943, 943xsv
- GPSMAP 9500 Black Box
