Garmin ECHOMAP Ultra 2 Ice House System with LiveScope Plus
$8,819.99
Out of Stock (On Order)
Get notified when this product is back in stock
- Description
- Additional information
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories

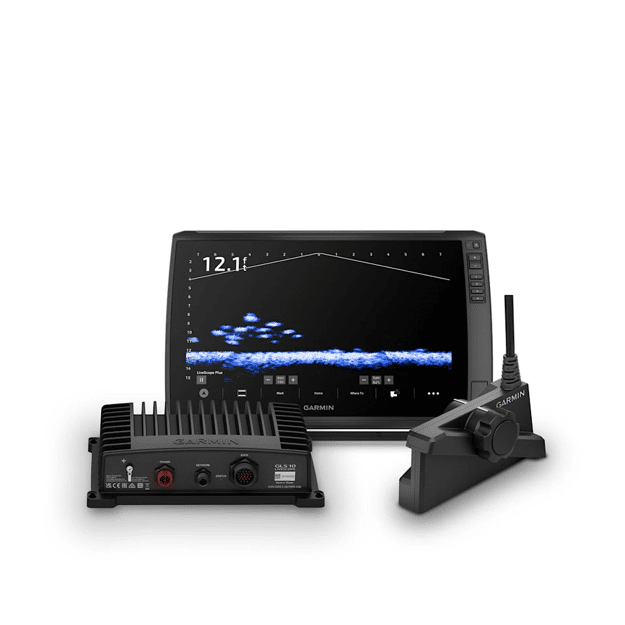

Outfit your ice house with the ECHOMAP Ultra 2 Ice House System. Featuring the ECHOMAP Ultra 2 166sv chartplotter, this device has a 16″ touchscreen with keyed assist and an HDMI output, so you can display live sonar on your compatible TV or external display. The bundle includes an ice fishing pole mount, the LiveScope™ Plus System with a GLS™ 10 sonar black box, and an LVS34- IF transducer which has a silicone cable that remains flexible in the cold. Use built-in BLUETOOTH® technology for voice control of LiveScope sonar settings and chartplotter favorite keys. With built-in Garmin Navionics+™ coastal and inland mapping for more than 25,000 lakes, you’ll have coverage whether you’re on the ice or fishing in the open water.
ECHOMAP Ultra 2 Ice House System Features

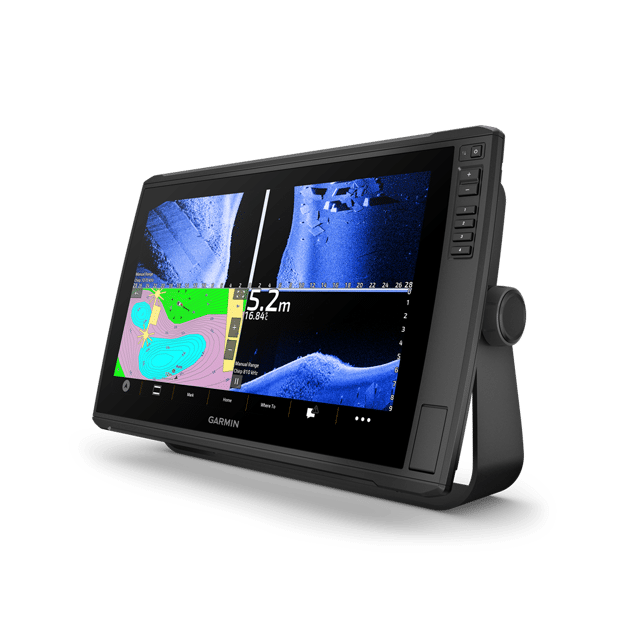

ECHOMAP ULTRA 2 16″ CHARTPLOTTER
This chartplotter features a 16″ full HD IPS display with touchscreen, mapping and HDMI output, so you can display sonar on your TV or external display.
ICE HOUSE SYSTEM
Get a GLS 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.
LIVESCOPE™ MODES
With an included 0-degree pole mount, the transducer can quickly switch between LiveScope™ Forward and LiveScope™ Down modes to adapt to your fishing technique.
GARMIN NAVIONICS+™ MAPPING
Get coverage for more than 25,000 lakes with preloaded coastal and inland mapping.
CUSTOM COMBOS
Create custom pages that combine sonar and maps on your display.
BUILT-IN SONAR
See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.
| Weight | 37.7 lbs |
|---|---|
| Dimensions | 18.5 × 21.7 × 16.5 in |
| Brand | Garmin |
Specifications
Garmin ECHOMAP Ultra 2 Ice House System Specs
General |
|
| Dimension | 16.9″ x 10.5″ x 3.14″ (43.0 x 26.6 x 8.0 cm) |
|---|---|
| Weight | 9.5 lbs (4.31 kg) |
| Water rating | IPX7 |
| Touchscreen | âś” |
| Display Type | FHD, IPS |
| Display Size | 13.6″ x 7.7″; 15.6″ diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal) |
| Display Resolution | 1920 x 1080 pixels |
| Input | Touchscreen with Keyed Assist |
Maps & Memory |
|
| Accepts Data Cards | 2 microSD™ cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Ice Fishing Details |
|
| Bag size | None |
| Included transducer | LiveScope™ Plus System with LVS34-IF |
| Transducer holding feature | Pole mount |
Sensors |
|
| GPS | âś” |
| GLONASS | âś” |
| Galileo | âś” |
| Has built-in receiver | âś” |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | âś” |
| Supports WAAS | âś” |
| Supports multi-band, multi-constellation GPS | âś” |
Built-in Maps |
|
| Built-in Auto Guidance+ | âś” |
| Garmin Navionics+ Inland & Coastal | âś” |
Optional Map Support |
|
| BlueChart g3 | âś” |
| BlueChart g3 Vision | âś” |
| LakeVĂĽ g3 | âś” |
| LakeVĂĽ g3 Ultra | âś” |
| Garmin Navionics+™ | ✔ |
| Garmin Navionics Vision+™ | ✔ |
| TOPO 100K | âś” |
| Garmin Quickdraw Contours | âś” |
Chartplotter Features |
|
| ActiveCaptain® compatible | yes |
| Supports voice commands | âś” |
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
Sonar Features |
|
| Displays sonar | |
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVĂĽ | Built-in 260/455/800/1000/1200 kHz |
| SideVĂĽ | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | ✔ |
| LiveScope | âś” |
Connections |
|
| NMEA 2000® ports | 1 |
| Video output ports | 1 HDMI |
| Garmin Marine Network Ports | 2 |
| 12-pin transducer ports | 12-pin scanning sonar |
| BLUETOOTH® pairing | ✔ |
| ANT® (Connectivity) | ✔ |
| Garmin Wi-Fi network (local connection) | âś” |
Package Includes
In the Box:
- ECHOMAP™ Ultra 2 166sv with preloaded Garmin Navionics+™ Inland, Coastal and Offshore Mapping for U.S. or Canada
- LiveScope™ Plus LVS34-IF transducer
- GLS™ 10 black box sonar module with power and network cables
- Ice fishing pole mount
- 0° shaft mount
- Power and network cables
- Hardware
- Documentation
