Maximize your time on the water with the ECHOMAP Ultra 2 chartplotter. Offering built-in tools to help you find and catch fish, this version features a 16″ touchscreen with keyed assist, full HD in-plane switching display and an HDMI output so you can display live sonar on your TV or external display. Plus, there’s support for the full line of LiveScope™ sonars as well as Ultra High-Definition ClearVü™ and SideVü™ scanning sonars, and select models include the Garmin GT56UHD-TM high wide CHIRP traditional sonar.
The chartplotter includes Quickdraw Contours software and select models come preloaded with Garmin Navionics+™ mapping with integrated coastal and inland lake coverage plus Auto Guidance+™ technology1 . Add premium Garmin Navionics Vision+™ mapping for high-resolution relief shading and satellite imagery (sold separately).
Wirelessly network with another ECHOMAP Ultra 2 or ECHOMAP™ UHD2 chartplotter to easily share sonar, waypoints and routes2. Plus, wirelessly connect to your Force® trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more. Or use BLUETOOTH® wireless technology to give a variety of voice commands to your chartplotter or compatible trolling motor (headset with BLUETOOTH is required; sold separately). Multi-band GPS technology with fast 10 Hz updates gives superior position accuracy.
Garmin ECHOMAP Ultra 2 166sv Features

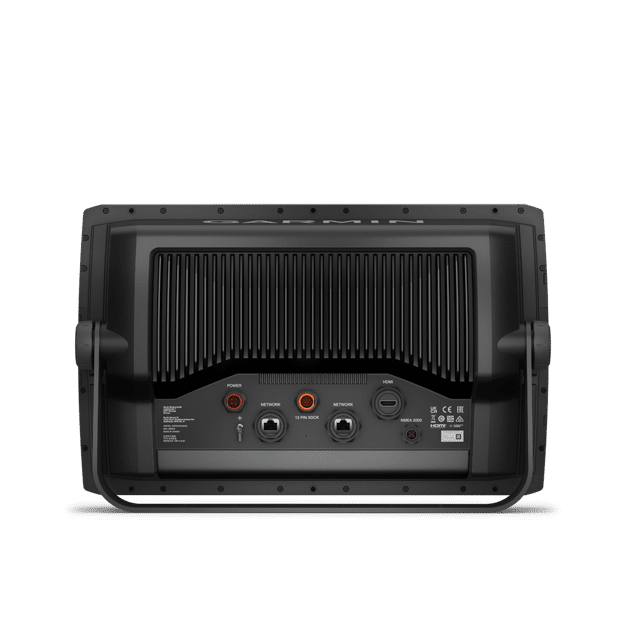

NEW! HDMI OUTPUT
In addition to recording and capturing what’s showing on sonar, the chartplotter’s HDMI output connectors also allow ice anglers to share their screens with their TVs or other external displays.
LIVESCOPE™ SONAR SUPPORT
The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar3 products with a vivid full HD IPS display.
PRELOADED CHARTS
This unit comes with built-in Garmin Navionics+™ mapping, which includes a 1-year subscription for daily updates, depth range shading and more. For added features, Garmin Navionics Vision+™ premium mapping is optionally available (sold separately).
MULTI-BAND GPS
Get superior position accuracy with multi-band GPS technology with fast 10 Hz updates.
WIRELESS NETWORKING
Share sonar4, waypoints and routes with another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on board.
VOICE CONTROL
Built-in BLUETOOTH® technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.
VIVID COLOR PALLETTES

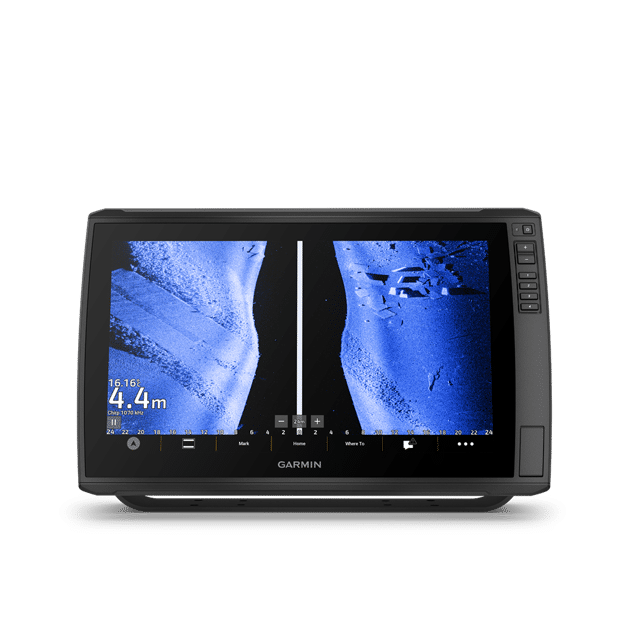

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
NMEA 2000 ® NETWORK COMPATIBILITY
Connect to your heading sensors, autopilots, Fusion-Link™ audio systems and more.
FORCE TROLLING MOTOR
Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes5, and more.
SCREEN RECORDING
Use the recording feature through the ActiveCaptain® app on your smartphone to share images from your chartplotter.
1Auto Guidance is for planning purposes only and does not replace safe navigation operations
2LiveScope™ sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters
3LiveScope sonar transducer sold separately
4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter
5 Via one-to-one unit wireless connection only
