Garmin ECHOMAP Ultra 2 126sv LiveScope Plus LVS34 Arclab Bundle with 50AH Battery & Bag
Original price was: $8,111.91.$6,599.99Current price is: $6,599.99.
Due to the included lithium ion battery, this product can only ship via Ground through all couriers.

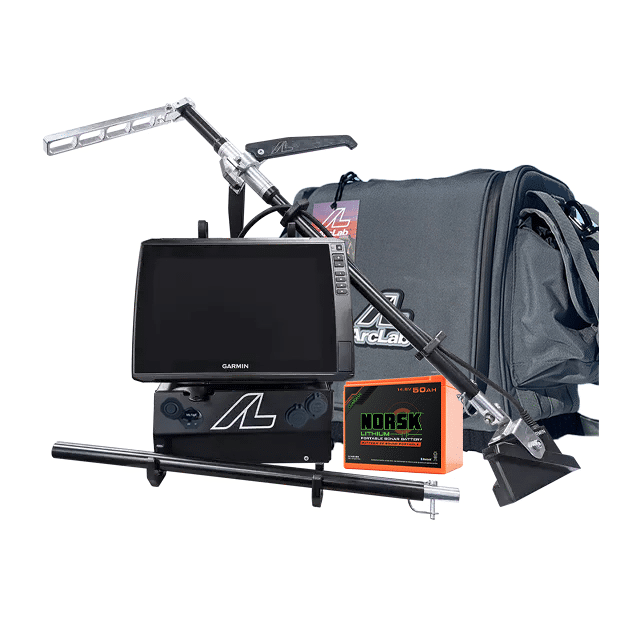

This custom ice fishing bundle offers you the Garmin ECHOMAP Ultra 2 126sv, including the LVS34 LiveScope with the Premium ArcLab 5200 Shuttle, ArcLab 5200 Series Shuttle Bag  and Norsk Lithium 14.8V 50AH battery for your ultimate ice fishing experience.
Out of Stock (On Order)
Get notified when this product is back in stock
Due to the included lithium ion battery, this product can only ship via Ground through all couriers.
ArcLab & Garmin LiveScope Ice Fishing Bundle
This custom ice fishing bundle offers you the Garmin ECHOMAP Ultra 2 126sv, including the LVS34 LiveScope with the Premium ArcLab 5200 Shuttle, ArcLab 5200 Series Shuttle Bag and Norsk Lithium 14.8V 50AH battery for your ultimate ice fishing experience.
ALL THE TOOLS YOU NEED FOR SUCCESSFUL ICE FISHING IN ONE BUNDLE
With big, crisp, sunlight-readable touchscreen displays, this versatile chartplotter put a world of fishfinding capability at your fingertips. The Garmin ECHOMAP Ultra 2 126sv comes with built-in Garmin Navionics+ mapping, and the LiveScope transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
Suitable for any size Garmin, the Arclab 5200 series electronics shuttle is designed to be compact, lightweight and extremely tough. Its the ultimate vessel to house your electronics investment while in use or while travelling. This ice fishing kit also includes the most rugged and versatile transducer pole available for Garmin LiveScope Plus, the ArcLab LVS34 Garmin LiveScope Pro series transducer pole bundle.
LIVESCOPE SONAR INCLUDED
The ECHOMAP Ultra 2 106sv LiveScope Plus LVS34 Bundle includes the LVS34 Transducer and GLS10 Sonar Module
UHD SONAR
The ECHOMAP Ultra 2 106sv supports Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface. (transducers sold separately)
VIVID COLOR PALETTES
The ECHOMAP 10” screen with high-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
PRELOADED CHARTS
Experience unparalleled coverage and detail. This ECHOMAP chartplotter and LiveScope transducer bundle comes with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more.
PREMIUM MAP UPGRADES
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.
WIRELESS NETWORKING
If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information with this ECHOMAP Ultra 2 106sv — such as sonar³, waypoints and routes — with them.
MULTI-BAND GPS
Get improved position accuracy with multi-band GPS
NMEA 2000® NETWORK COMPATIBILITY
Connect to heading sensors, autopilots, Fusion-Link™ audio systems and more.
ACTIVECAPTAIN® APP
Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data and more4.
FORCE® TROLLING MOTOR
Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.
TAKE IT WITH YOU
The quick-disconnect bail mount lets you quickly install and remove your Garmin ECHOMAP 106sv unit.
¹LiveScope™ System sonar transducer included.
²Via one-to-one unit wireless connection only
ÂłLiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters
4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter
| Weight | 50 lbs |
|---|---|
| Dimensions | 21 × 22 × 31 in |
| Brand | Garmin |
Video
Garmin ECHOMAP Ultra 2 10” and 12” Touchscreen Chatplotters
Tell a new fish story with Garmin ECHOMAP Ultra 2 106sv 10” touchscreen. Screen record your best catch and share with friends. Wirelessly connect two marine chartplotters to share sonar and user data. Get greater position accuracy, sonar views with vivid color, Garmin Navionics+, and more! See this Garmin ECHOMAP Ultra 2 in action.
Specifications
Garmin ECHOMAP Ultra 2 126sv Specs
General |
|
| Dimension | 13.4″ x 9.0″ x 3.9″ (34.1 x 22.9 x 9.8 cm) |
|---|---|
| Weight | 5.5 lbs (2.5 kg) |
| Waterproof | IPX7 |
| Touchscreen | âś” |
| Display Type | WXGA, IPS |
| Display Size | 10.3″ x 6.4″; 12.1″ diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) |
| Display Resolution | 1280 x 800 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with Keyed Assist |
Maps & Memory |
|
| Accepts Data Cards | 2 microSDÂ cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | âś” |
| GLONASS | âś” |
| Galileo | âś” |
| BeiDou | âś” |
| Has built-in receiver | âś” |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | âś” |
| NMEA 0183 Compatible | âś” |
| Supports WAAS | âś” |
| Supports multi-band, multi-constellation GPS | âś” |
Built-in Maps |
|
| Built-in Auto Guidance+ | âś” |
| Garmin Navionics+ Inland & Coastal | âś” |
| Tide tables | âś” |
Optional Map Support |
|
| BlueChart g3 | âś” |
| BlueChart g3 Vision | âś” |
| Garmin Navionics+™ | ✔ |
| Garmin Navionics Vision+™ | ✔ |
| TOPO 100K | âś” |
| Standard Mapping | âś” |
| Garmin Quickdraw Contours | âś” |
Chartplotter Features |
|
| AIS | âś” |
| DSC | âś” |
| Supports Fusion-Link™ compatible radios | ✔ |
| ActiveCaptain® compatible | yes |
| Sailing Features | âś” |
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 2.5 A |
| Maximum current draw at 12 Vdc | 5.0 A |
| Maximum power usage at 10 Vdc | 36 W |
Sonar Features |
|
| Displays sonar | âś” |
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVĂĽ | built-in 260/455/800/1000/1200 kHz |
| SideVĂĽ | built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | ✔ |
| LiveScope | âś” |
Connections |
|
| NMEA 2000® ports | 1 |
| Garmin Marine Network Ports | 2 (large connector) |
| 12-pin transducer ports | 12-pin scanning sonar |
| ANT+ (Connectivity) | âś” |
| Garmin Wi-Fi network (local connection) | âś” |
Package Includes
This ice fishing kit combines two bundles into the ultimate ArcLab & Garmin LiveScope package.
In the ECHOMAP Ultra 2 126sv Box:
- ECHOMAP Ultra 126sv 12” chartplotter with Garmin Navionics+
- LVS34 LiveScope+ Transducer
- GLS10 Sonar Module
- Power/data cable
- 20ft Marine Network cable
- Cable grommet
- Bail mount with quick release cradle
- Protective sun cover
- 8-pin transducer to 12-pin sounder adapter cable
- Hardware
- Documentation
In the ArcLab 12V Deluxe Shuttle LVS34 Pole Bundle and Garmin Cables Box:
- ArcLab 5200 Series 12V Deluxe Electronics Shuttle (ALM100045)
- ArcLab LVS34 Garmin LiveScope Ice Bundle (ALM100058)
- ArcLab 5200 12V Deluxe Wire Harness (ALM10084)
- ArcLab 5200 Series Shuttle Cable Cleat (ALM100060)
- ArcLab Transducer Pole Caddy Clips (ALM100017)
- Garmin Lithium-Ion 4-in-One Power Cable (010-13140-11)
- Garmin Marine Network Adapter Cable – Small (Female) to Large (010-12531-10)
- Norsk 14.8V 50AH Lithium-ion Battery with Charger (B14052C)
Plus, to hold it all:
