Garmin ECHOMAP Ultra 2 106sv LiveScope Plus LVS34 Bundle
$5,040.00
On sale until February 28, 2025

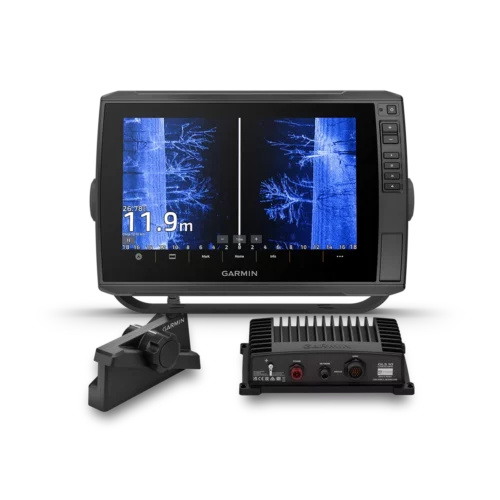

This Garmin ECHOMAP Ultra 2 106sv LiveScope Plus LVS34 fishing bundle includes the LVS34 Transducer and GLS10 Sonar Module and pre-loaded Garmin Navionics+™ U.S. Inland & Coastal Mapping.
Get the ultimate ice fishing bundle with our Premium Arclab Bundle >>
THE GARMIN ECHOMAP LIFESCOPE BUNDLE YOU NEED FOR SUCCESSFUL FISHING
With big, crisp, sunlight-readable touchscreen displays, this versatile marine chartplotter puts a world of fishfinding capability at your fingertips. The Garmin ECHOMAP Ultra 106sv LiveScope comes with built-in Garmin Navionics+ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

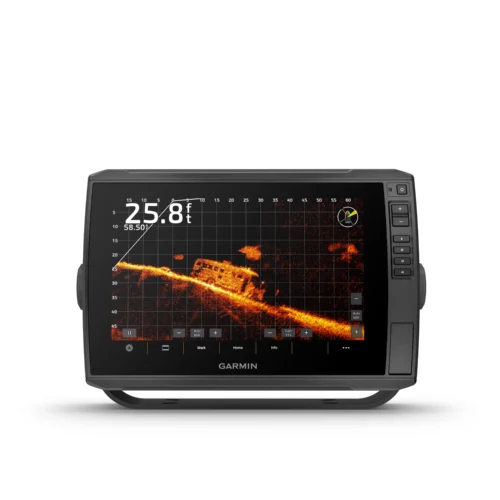

LIVESCOPE SONAR INCLUDED
The ECHOMAP Ultra 2 106sv LiveScope Plus LVS34 fishing bundle includes the LVS34 Transducer and GLS10 Sonar Module
UHD SONAR

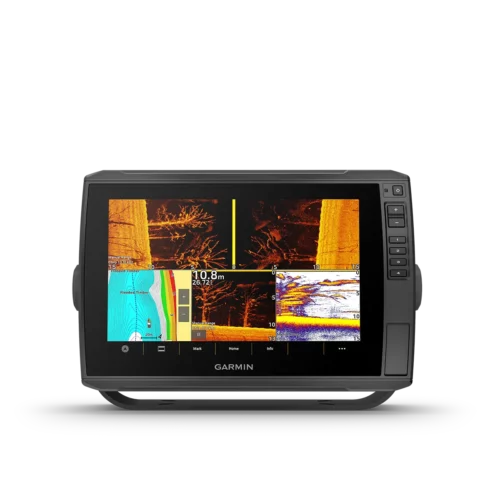

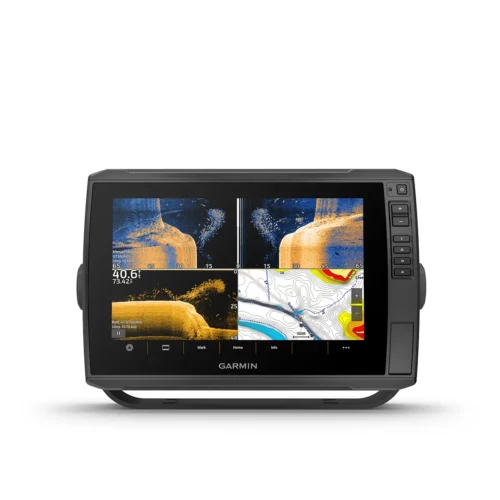

This Garmin LiveScope bundle supports Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.

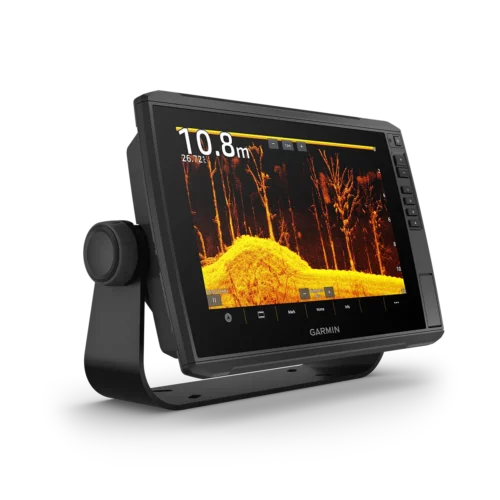

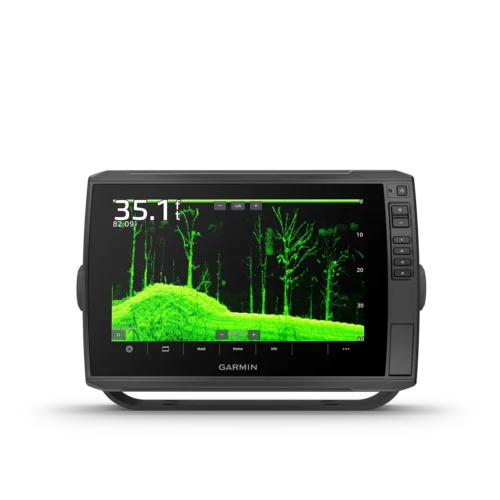

VIVID COLOR PALETTES
The Garmin ECHOMAP Ultra 106sv 10” screen with high-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

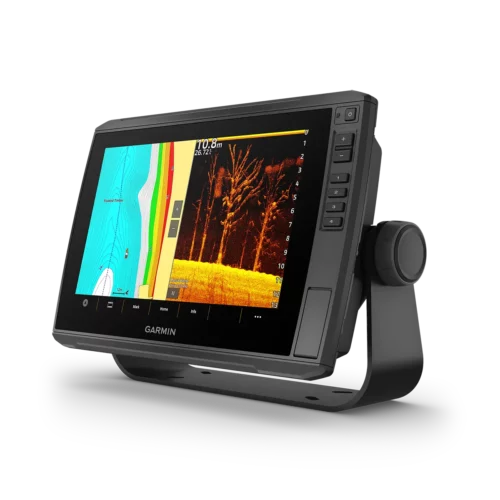

PRELOADED CHARTS
Experience unparalleled coverage and detail. This Garmin ECHOMAP Ultra 106sv marine chartplotter with come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more.
PREMIUM MAP UPGRADES
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.
WIRELESS NETWORKING
If you have another compatible Garmin ECHOMAP Ultra 2 or ECHOMAP UHD2 marine chartplotter on your boat, you can wirelessly share information — such as sonar³, waypoints and routes — with them.
MULTI-BAND GPS
Get improved position accuracy with multi-band GPS
NMEA 2000® NETWORK COMPATIBILITY
Connect to heading sensors, autopilots, Fusion-Link™ audio systems and more.
ACTIVECAPTAIN® APP
Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data and more4.
FORCE® TROLLING MOTOR
Wirelessly connect to your Garmin Force trolling motor to navigate to waypoints, draw and follow routes, and more.
TAKE IT WITH YOU

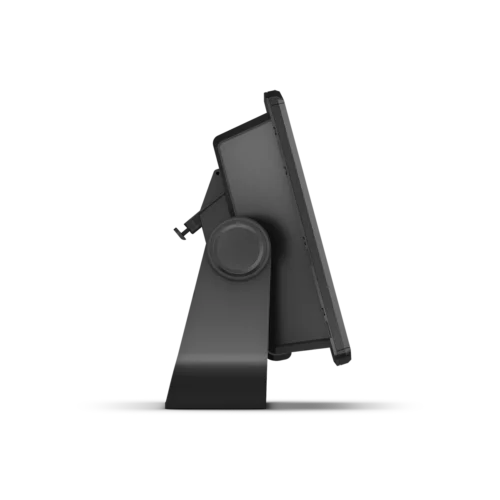

The quick-disconnect bail mount lets you quickly install and remove your ECHOMAP.
¹LiveScope™ System sonar transducer included.
²Via one-to-one unit wireless connection only
ÂłLiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters
4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter
| Weight | 23 lbs |
|---|---|
| Dimensions | 15 × 10.5 × 16.5 in |
| Brand | Garmin |
Video
Garmin ECHOMAP Ultra 2 10” and 12” Touchscreen Chatplotters
Tell a new fish story with Garmin ECHOMAP Ultra 2 106sv 10” touchscreen. Screen record your best catch and share with friends. Wirelessly connect two marine chartplotters to share sonar and user data. Get greater position accuracy, sonar views with vivid color, Garmin Navionics+, and more! See this Garmin ECHOMAP Ultra 2 in action.
Specifications
Garmin ECHOMAP Ultra 2 106sv Specs
General |
|
| Dimension | 11.6″ x 7.7″ x 3.9″ (29.5 x 19.5 x 9.8 cm) |
|---|---|
| Weight | 4.0 lbs (1.8 kg) |
| Waterproof | IPX7 |
| Touchscreen | âś” |
| Display Type | WXGA, IPS |
| Display Size | 8.5″ x 5.4″; 10″ diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) |
| Display Resolution | 1280 x 800 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with Keyed Assist |
Maps & Memory |
|
| Accepts Data Cards | 2 microSDÂ cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | âś” |
| GLONASS | âś” |
| Galileo | âś” |
| BeiDou | âś” |
| Has built-in receiver | âś” |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | âś” |
| NMEA 0183 Compatible | âś” |
| Supports WAAS | âś” |
| Supports multi-band, multi-constellation GPS | âś” |
Built-in Maps |
|
| Built-in Auto Guidance+ | âś” |
| Garmin Navionics+ Inland & Coastal | âś” |
| Tide tables | âś” |
Optional Map Support |
|
| BlueChart g3 | âś” |
| BlueChart g3 Vision | âś” |
| Garmin Navionics+™ | ✔ |
| Garmin Navionics Vision+™ | ✔ |
| TOPO 100K | âś” |
| Standard Mapping | âś” |
| Garmin Quickdraw Contours | âś” |
Chartplotter Features |
|
| AIS | âś” |
| DSC | âś” |
| Supports Fusion-Link™ compatible radios | ✔ |
| ActiveCaptain® compatible | yes |
| Sailing Features | âś” |
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 2.3 A |
| Maximum current draw at 12 Vdc | 5.0 A |
| Maximum power usage at 10 Vdc | 34 W |
Sonar Features |
|
| Displays sonar | âś” |
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVĂĽ | built-in 260/455/800/1000/1200 kHz |
| SideVĂĽ | built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | ✔ |
| LiveScope | âś” |

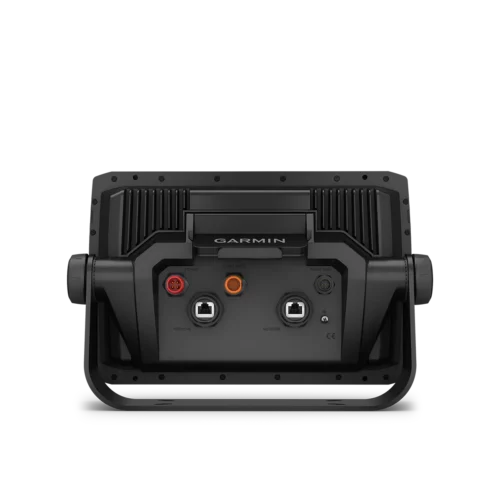

Connections |
|
| NMEA 2000® ports | 1 |
| Garmin Marine Network Ports | 2 (large connector) |
| 12-pin transducer ports | 12-pin scanning sonar |
| ANT+ (Connectivity) | âś” |
| Garmin Wi-Fi network (local connection) | âś” |
Garmin LiveScope Plus LVS34 Transducer Specifications
General |
|
|
DIMENSION
|
6.4” x 3.1” x 1.9” (16.2 x 3.1 x 4.8 cm)
|
|
WEIGHT
|
2.25 lbs (1.02Â kg)
|
|
WATERPROOF
|
IPX7
|
|
TEMPERATURE RANGE
|
Operating: 0 C to 40 C
|
Sonar Features & Specifications |
|
|
FREQUENCY
|
530 – 1,100 kHz
|
|
MAX DEPTH
|
Down and Forward: 200’ (61.0 m)
|
Connections |
|
|
CONNECTIONS GARMIN MARINE NETWORK PORTS
|
1 (small connector)
|
Electrical Features |
|
|
POWER INPUT
|
10-32 V
|
|
POWER USAGE
|
21 W typical, 58 W max
|
|
TRANSMIT POWER
|
500 W
|
|
FUSE
|
7.5 A
|
|
COMPASS SAFE DISTANCE
|
4″ (0.1 m)
|
More Features |
|
|
Minimum depth:
|
3′ (0.91 m)
|
|
Sonar type:
|
Live
|
|
Beamwidth:
|
20° x 135°
|
|
Transducer cable length:
|
20Â ft
|
|
Transducer number of pins
|
21
|
Garmin GLS 10 Sonar Module Specs
General |
|
| DIMENSION | 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm) |
|---|---|
| WEIGHT | 4.3 lbs (2.0 kg) |
| WATERPROOF | IPX7 |
| TEMPERATURE RANGE | Operating: -15 C to 70 C |
Sonar Features & Specifications |
|
| FREQUENCY | 530 – 1,100 kHz |
| MAXDEPTH | Down and Forward: 200’ (61.0 m) |
Connections |
|
| CONNECTIONS GARMIN MARINE NETWORK PORTS | 1 (small connector) |
Electrical Features |
|
| POWER INPUT | 10-32 V |
| POWER USAGE | 21 W typical, 58 W max |
| TRANSMIT POWER | 500 W |
| FUSE | 7.5 A |
Package Includes
In the GARMIN ECHOMAP 106sv LiveScope Bundle Box:
- ECHOMAP Ultra 106sv with Garmin Navionics+ chartplotter
- LVS34 LiveScope Plus Transducer
- GLS10 Sonar Module
- Power/data cable
- 20ft Marine Network cable
- Cable grommet
- Bail mount with quick release cradle
- Protective sun cover
- 8-pin transducer to 12-pin sounder adapter cable
- Hardware
- Documentation
