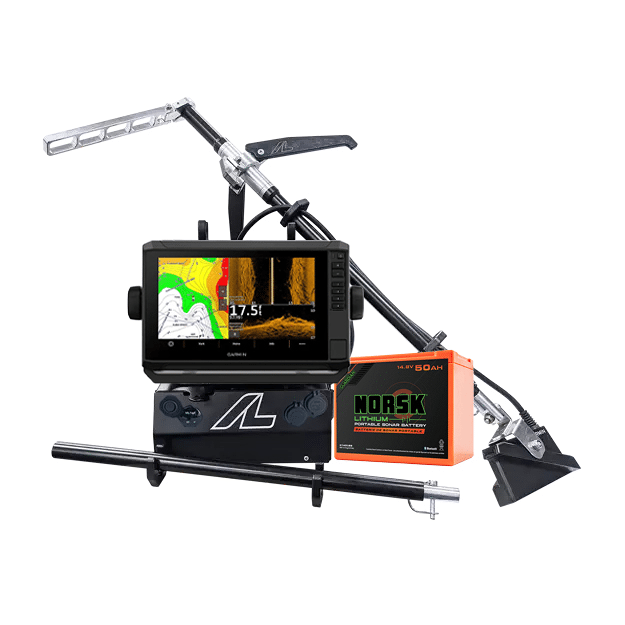

Garmin ECHOMAP UHD2 95sv LiveScope Plus LVS34 Arclab Bundle with 50AH Battery
$5,141.91
On sale until February 28, 2026
Out of Stock (On Order)
Get notified when this product is back in stock

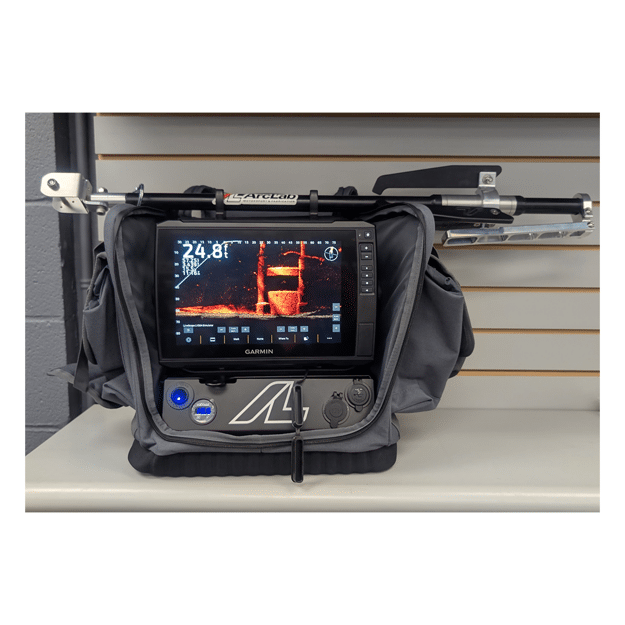

This ice fishing kit combines two bundles into the ultimate ArcLab & Garmin LiveScope package.
In the Garmin ECHOMAP UHD2 95sv with GT54UHD-TM Transducer Box:
- ECHOMAP UHD2 (device varies depending on selection)
- GT54UHD-TM transducer
- Power cable
- Tilt/swivel mount with quick release cradle
- Protective cover
- Hardware
- Documentation

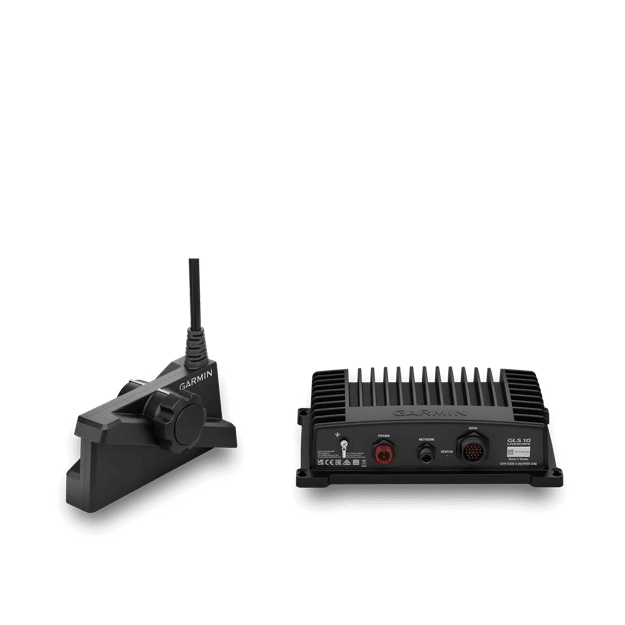

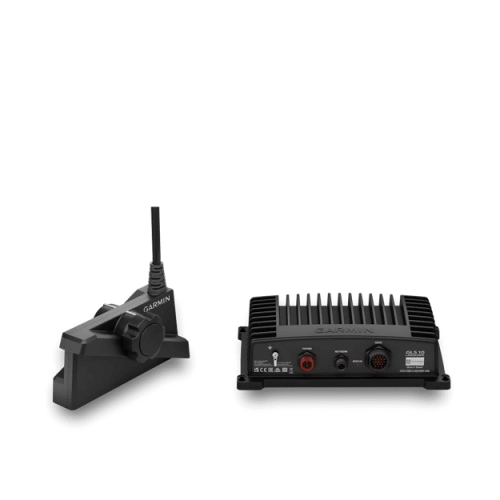

In the Garmin Panoptix LiveScope Plus System Box:
- LiveScope GLS 10 sonar black box
- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation

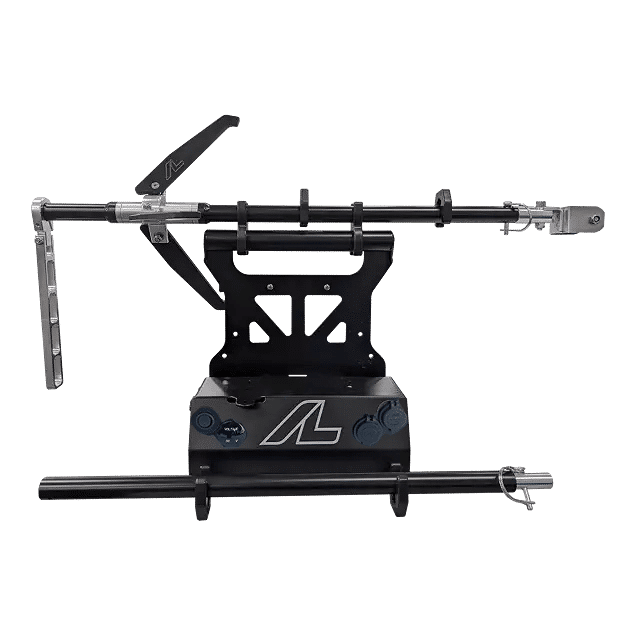

In the ArcLab 12V Deluxe Shuttle LVS34 Pole Bundle and Garmin Cables Box:

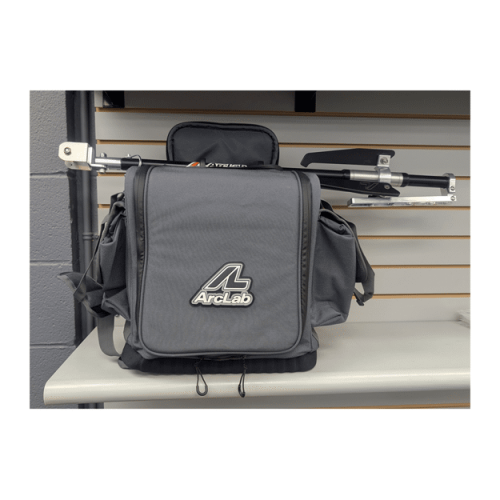

- ArcLab 5200 Series 12V Deluxe Electronics Shuttle (ALM100045)
- ArcLab LVS34 Garmin LiveScope Ice Bundle (ALM100058)
- ArcLab 5200 12V Deluxe Wire Harness (ALM10084)
- ArcLab 5200 Series Shuttle Cable Cleat (ALM100060)
- ArcLab Transducer Pole Caddy Clips (ALM100017)

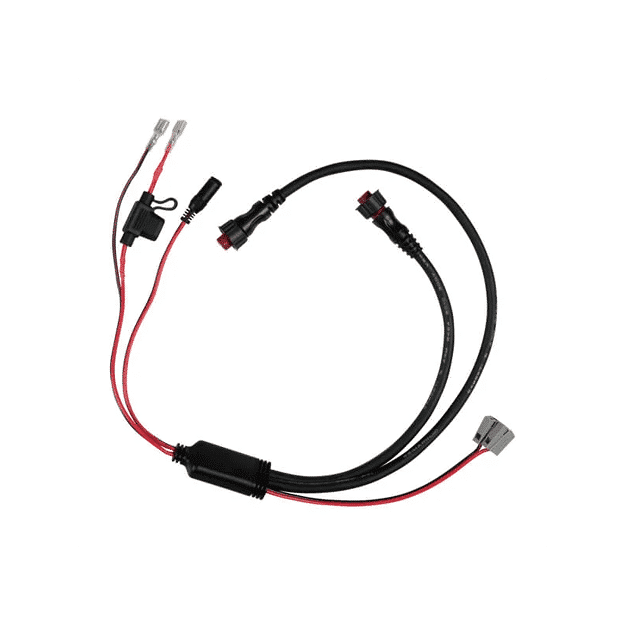

- Garmin Lithium-Ion 4-in-One Power Cable (010-13140-11)

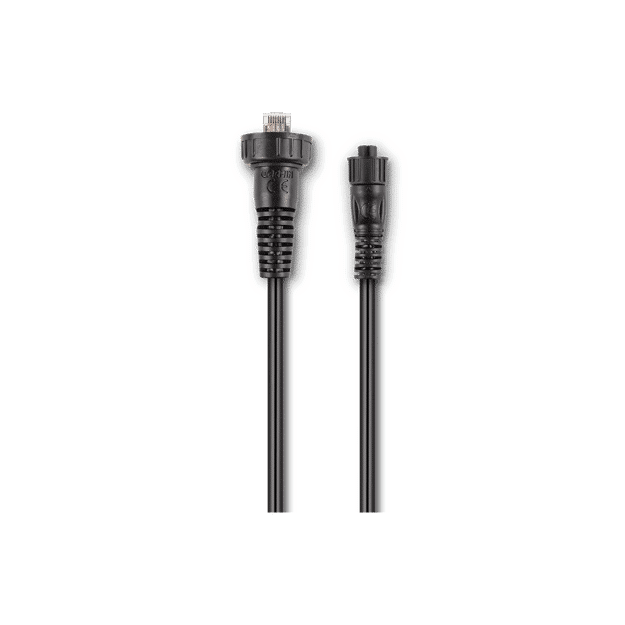

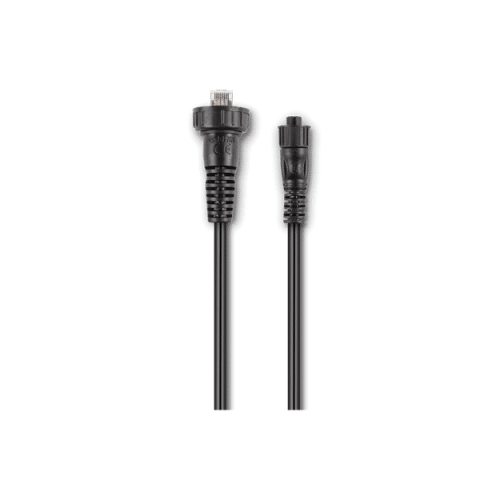

- Garmin Marine Network Adapter Cable – Small (Female) to Large (010-12531-10)
- Norsk 14.8V 50AH Lithium-ion Battery with Charger (B14032C)
| Weight | 42 lbs |
|---|---|
| Dimensions | 20 × 30 × 20 in |
| Brand | Garmin |
| Compatibility | Live Sonar |
| Connectivity | Networking, NMEA 0183, NMEA 2000 |
| Screen Size | 9" |
Specifications
Garmin ECHOMAP UHD2 95sv Chartplotter Specs
General |
|
| DIMENSION | 10.4″ x 6.5″ x 3.2″ (26.4 x 16.6 x 8.0 cm) |
|---|---|
| INPUT | Touchscreen with Keyed Assist |
| DISPLAY SIZE | 7.8″ x 4.5″, 9.0″ (19.8 x 11.5 cm, 22.9 cm) |
| DISPLAY RESOLUTION | 1024 x 600 pixels |
| DISPLAY TYPE | WVGA, TN |
| WEIGHT | 2.2 lbs (1.0 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Bail or flush |
Maps & Memory |
|
| ACCEPTS DATA CARDS | 1 microSD™ card; 32 GB maximum size |
| WAYPOINTS | 5,000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | ✔ |
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | ✔ |
| GPS | ✔ |
| GLONASS | ✔ |
| GALILEO | ✔ |
| BEIDOU | ✔ |
| SUPPORTS WAAS | ✔ |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS | ✔ |
Built-in Maps |
|
| BUILT-IN AUTO GUIDANCE+ | yes (downloadable via ActiveCaptain app) |
| GARMIN NAVIONICS+ INLAND & COASTAL | ✔ |
| TIDE TABLES | ✔ |
Optional Map Support |
|
| GARMIN NAVIONICS+™ | ✔ |
| GARMIN NAVIONICS VISION+™ | ✔ |
| TOPO | ✔ |
| STANDARD MAPPING | ✔ |
| GARMIN QUICKDRAW CONTOURS | ✔ |
Chartplotter Features |
|
| AIS | ✔ |
| DSC | ✔ |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | ✔ |
| ACTIVECAPTAIN® COMPATIBLE | ✔ |
| SAILING FEATURES | ✔ |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | ✔ |
| TRANSDUCER POWER | CHIRP Traditional 350 W; ClearVü/SideVü 350 W |
| TRANSDUCER FREQUENCY | CHIRP High Wide (150-240 kHz); UHD ClearVü CHIRP 800 kHz (760-880 kHz); UHD SideVü 1,200kHz (1020-1230 kHz); CHIRP SideVü 455 kHz (425-485 kHz) |
| TRANSDUCER BEAMWITH | CHIRP: 24°-16° ClearVü: 0.94°x60° @ 800 kHz SideVü: 1.62°x50° UHD SideVü: 0.441°x52° @ 1200 kHz |
| TRANSDUCER MAX DEPTH | CHIRP: 800 ft.; ClearVü 200 ft.; SideVü 500′; UHD SideVü 125′ |
| PANOPTIX™ SONAR | ✔ |
| LIVESCOPE | ✔ |
Connections |
|
| NMEA 2000 PORTS | ✔ |
| GARMIN MARINE NETWORK PORTS | 1 |
| 12-PIN TRANSDUCER PORTS | 1 |
| BLUETOOTH® PAIRING | ✔ |
| ANT+ (CONNECTIVITY) | ✔ |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | ✔ |
Electrical Features |
|
| POWER INPUT | 9 to 18 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 1.72 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.5 A |
| MAXIMUM POWER USAGE AT 10 VDC | 20.7W |
Product Guides & Documentation
