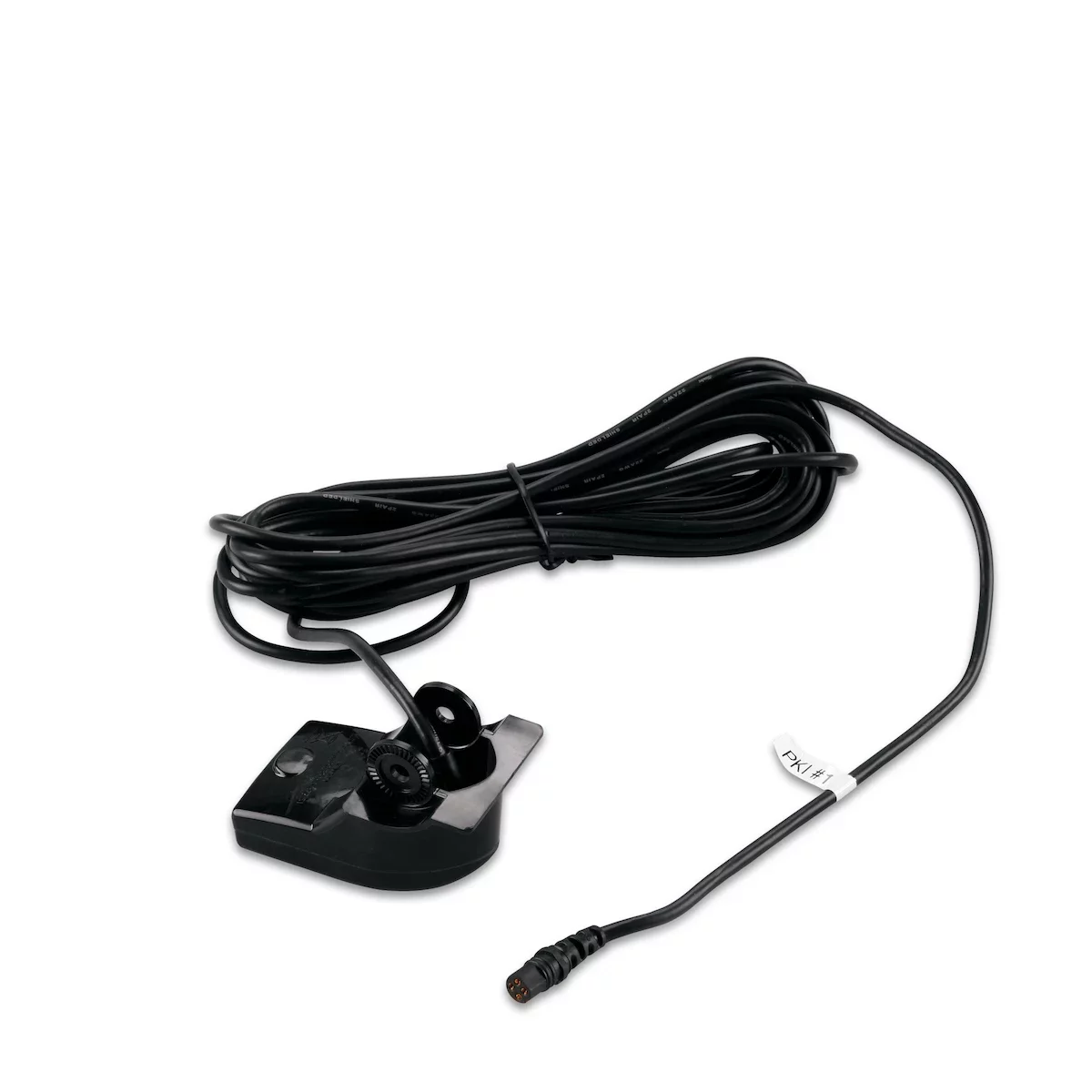

Garmin Dual-Beam Transducer (4-pin)
MPN: 010-10249-20
$94.95
This dual beam transducer replaces the one included with your echo series fishfinder.
In stock
This dual beam transducer replaces the one included with your echo series fishfinder or STRIKER series fishfinder.
A 500 W 4-pin transducer; an operating frequency of 77 to 200 kHz; a beamwidth of 45 to 15 degrees; and mounts on a 0 to 70 degree transom.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11614-00 is required.
When using with the echoMAP 50s/70s, transducer adapter cable part number 010-11948-00 is required.
Compatible with:
- Garmin echo 100, 150, 200, 300c, 500c, 550c
- Garmin echo 101, 151, 201, 301c, 501c, 551c
- Garmin echo 151dv, 201dv, 301dv, 551dv
| Weight | 1.16 lbs |
|---|---|
| Dimensions | 6 × 6 × 2 in |
Accessories
Optional Accessories …
$51.99
In stock
$33.99
In stock
$29.95
On backorder
Product Specifications
| FREQUENCY | 77/200 kHz |
|---|---|
| POWER | 500 W |
| BEAMWIDTH | 45°/15° |
| MAXIMUM DEPTH | 1,900 ft. |
| DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| NUMBER OF PINS | 4-pin |
| CABLE LENGTH | 30 ft. |
| SUPPORTED DEADRISE/TRANSOM ANGLES | 0°-70° degree transom |
