Garmin Dual Beam-IF Ice Fishing Transducer
MPN: 010-13069-00
$104.99
Out of Stock (On Order)
Get notified when this product is back in stock

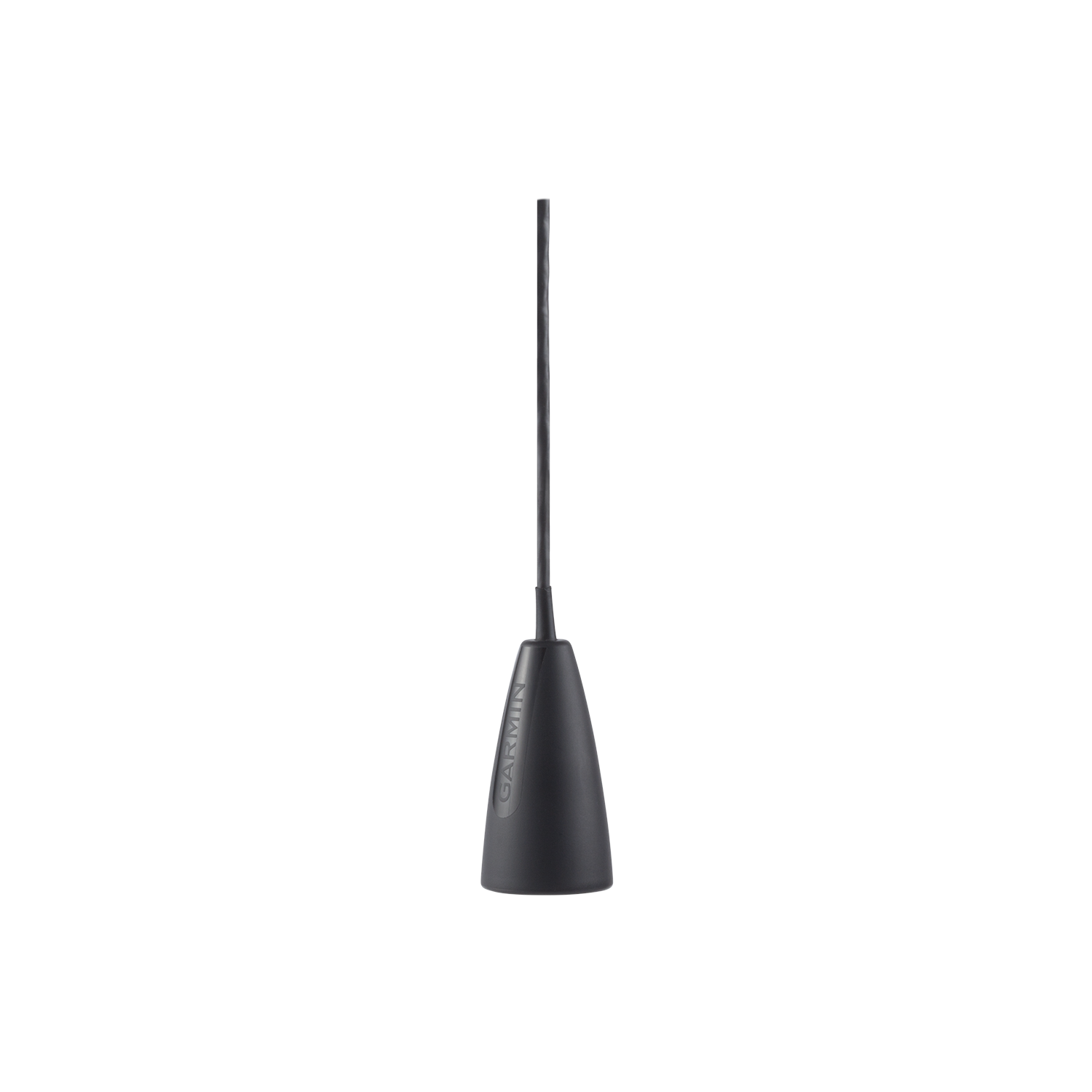

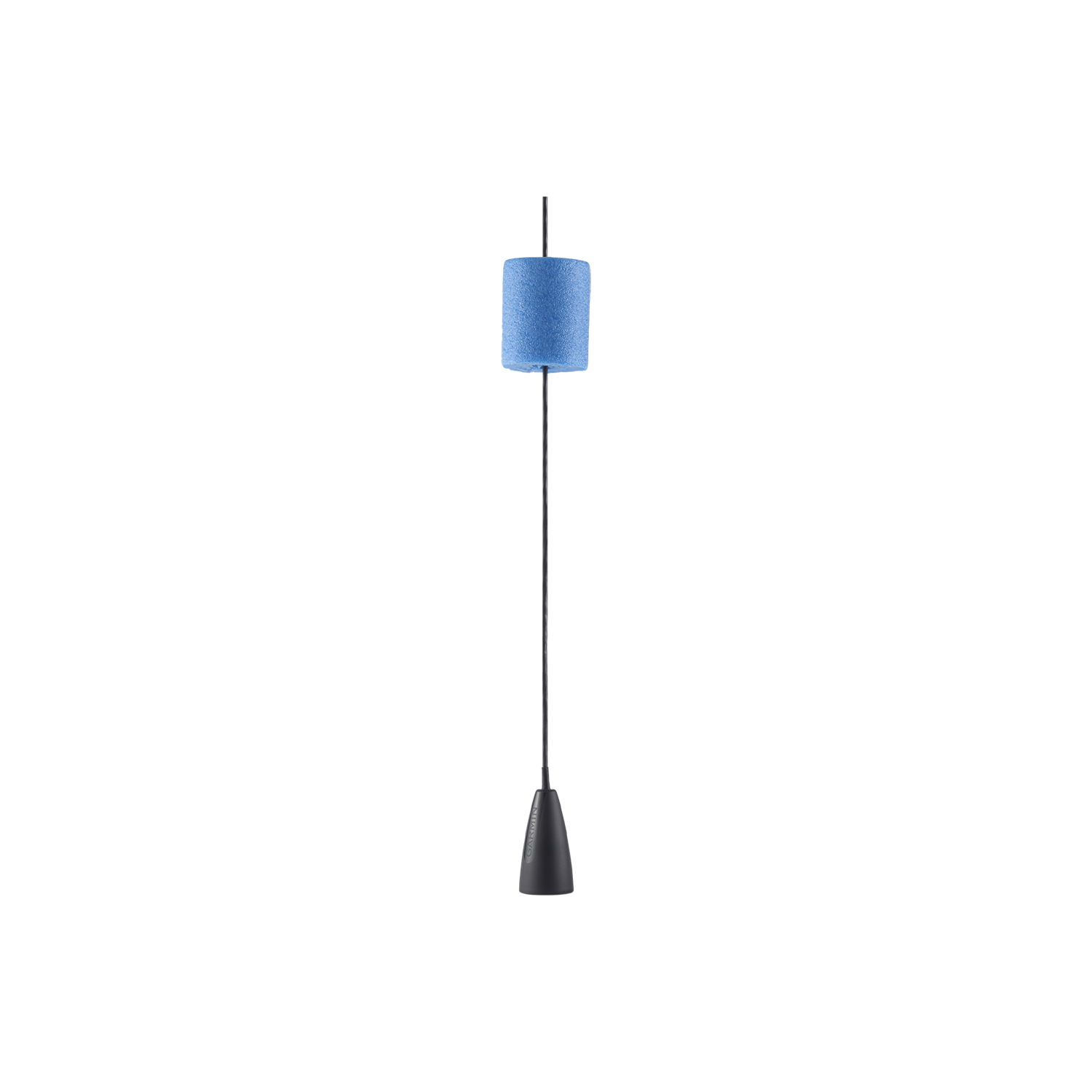

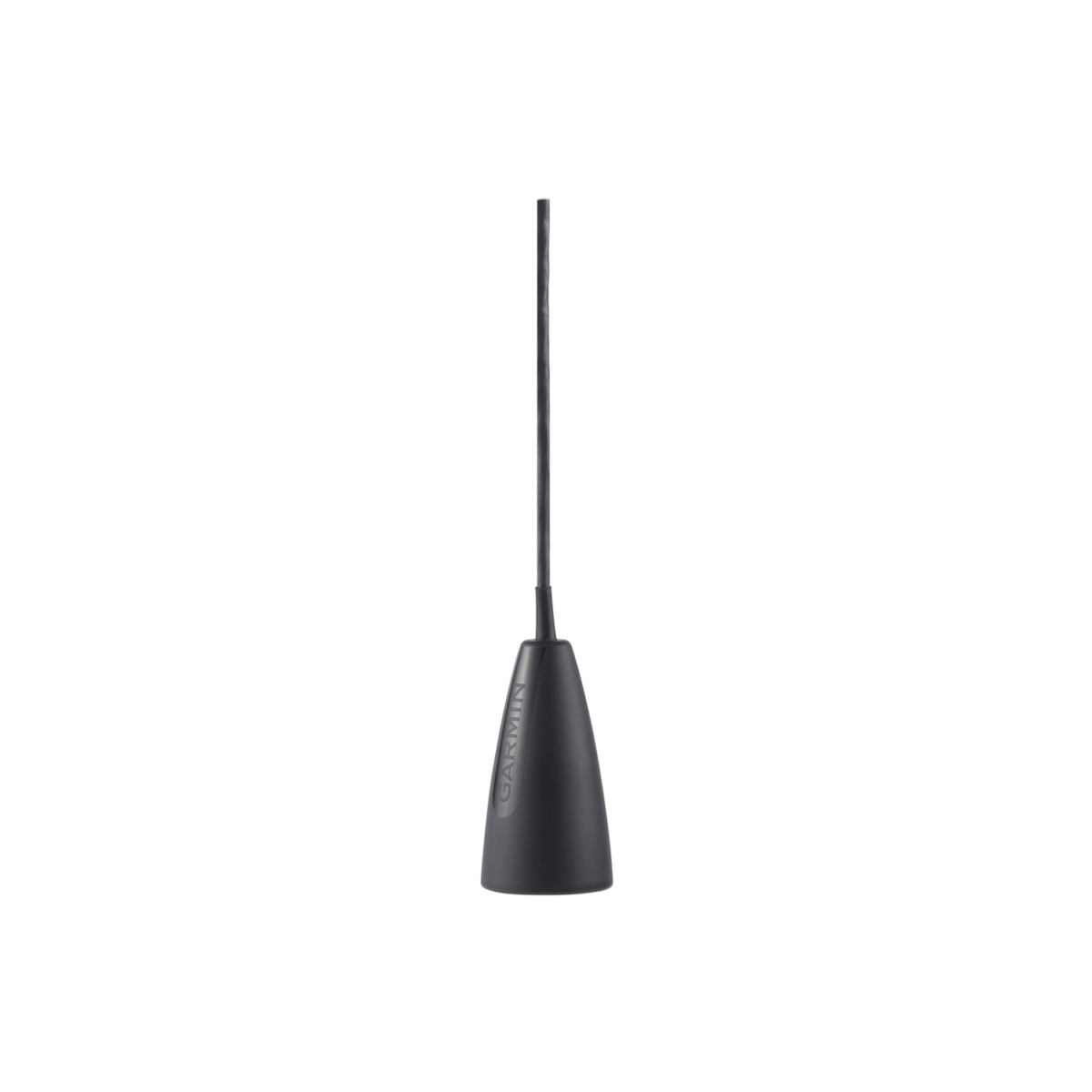

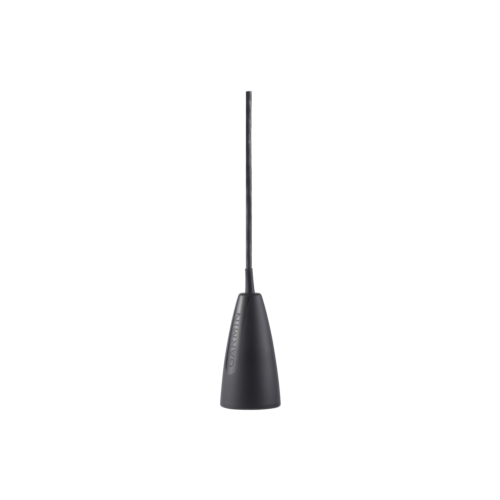

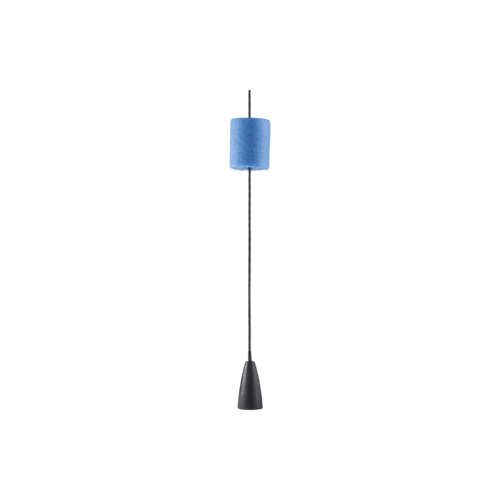

Get crystal-clear images of fish from your spot on the ice with the Dual Beam IF ice fishing transducer¹. It offers remarkable target separation, an operating frequency of 77/200 kHZ and a beamwidth of 15 or 45 degrees — making it easier to see more. It features a silicone-coated cable that remains flexible in harsh winter conditions. The kit includes a 4-pin transducer, foam float and grommet.
¹When paired with your compatible fishfinder or chartplotter
| Weight | 0.92 lbs |
|---|---|
| Dimensions | 5.5 × 3.25 × 5.5 in |
| Brand | Garmin |
Specifications
Garmin Dual Beam-IF Specs
| TRANSDUCER FREQUENCY | 77/200 kHz |
|---|---|
| TRANSDUCER POWER | 500 W |
| TRANSDUCER BEAMWIDTH | 45°/15° |
| TRANSDUCER CABLE LENGTH | 8 ft. |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE | Depth |
| TRANSDUCER NUMBER OF PINS | 4-pin |
| TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES | N/A |
Package Includes
In the Box:
- Dual Beam-IF transducer
- Foam float
- Grommet
- Documentation
