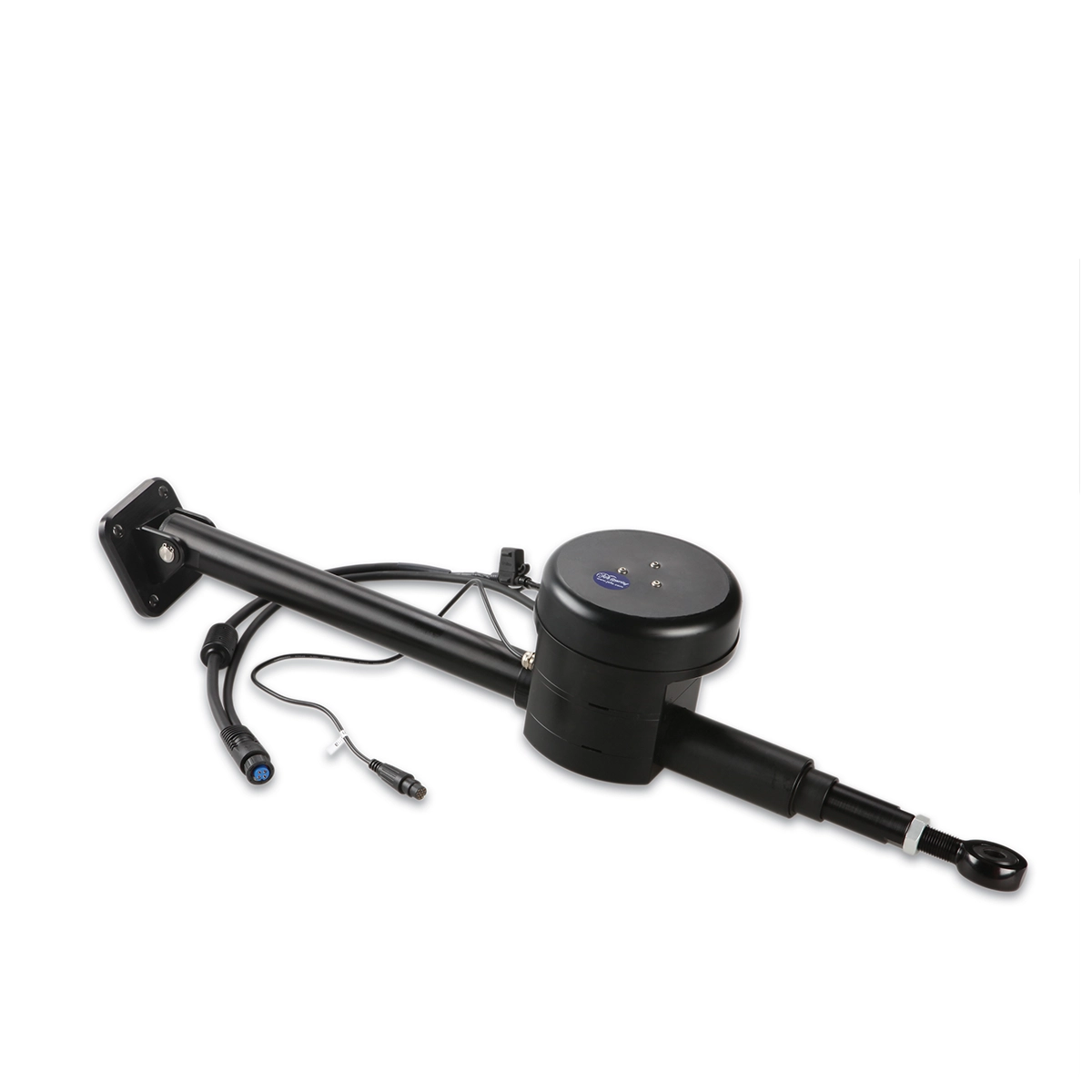

Garmin Class A Drive Unit for GHP 12

Garmin Class A Drive Unit for GHP 12

MPN: 010-11572-00

$2,819.99

Out of Stock (On Order)

Get notified when this product is back in stock

SKU: GAR-1157200 Categories: ,

The Class A Drive Unit works with the GHP 12 Marine Autopilot System to control your sailboat’s steering system. This device is designed for use with larger sailboats with up to 28,500 lbs (12,927 kg) of displacement.

Weight 17.64 lbs
Dimensions 32 × 8 × 7 in
Brand

Garmin
Manufacturer Part Number 010-11572-00

Specifications

Garmin Class A Drive Unit for GHP 12 Specs

  • Drive Unit Type: Mechanical
  • Stroke Length: 12″ (303 mm)
  • Maximum Thrust: 800 lb (400 kg)
  • Dimensions (centered), WxHxD: 32.3″ x 6.5″ x 6.1″ (820 x 165 x 155 mm)
  • Supply Voltage: 10V to 30V
  • Average Clutch Current at 12V: 0.5 Amps
  • Average Motor Current at 12V: 1-2 Amps
  • Operating Temperature: -15° C to 60° C (5° F to 140° F)
