Garmin AIRMAR B260 Transducer
MPN: 010-10640-20
$2,391.99
Out of Stock (On Order)
Get notified when this product is back in stock

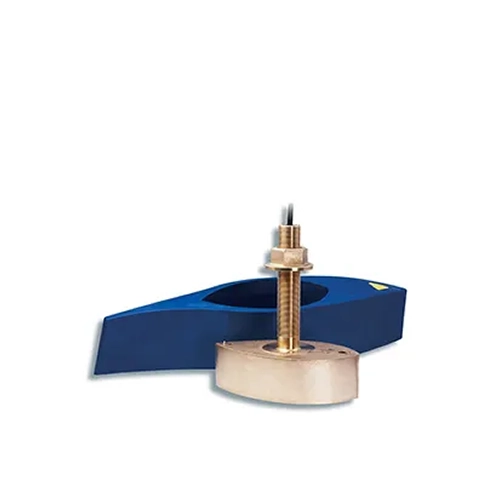

This bronze thru-hull mount transducer works well in deep water.
A popular narrow beam, this 8-pin 1 kW transducer has a depth of 1,800 to 2,500 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 19 to 6 degrees; and a 0 to 20 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.
| Weight | 22 lbs |
|---|---|
| Dimensions | 24 × 12 × 12 in |
| Brand | Garmin |
Specifications
Garmin AIRMAR B260 Transducer Specs
| Transducer frequency | 50/200 kHz |
|---|---|
| Transducer power | 1 kW |
| Transducer beamwidth | 19°/6° |
| Transducer maximum depth | 1,800-2,500 ft. |
| Transducer cable length | 39 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 0°-20° degree deadrise |
