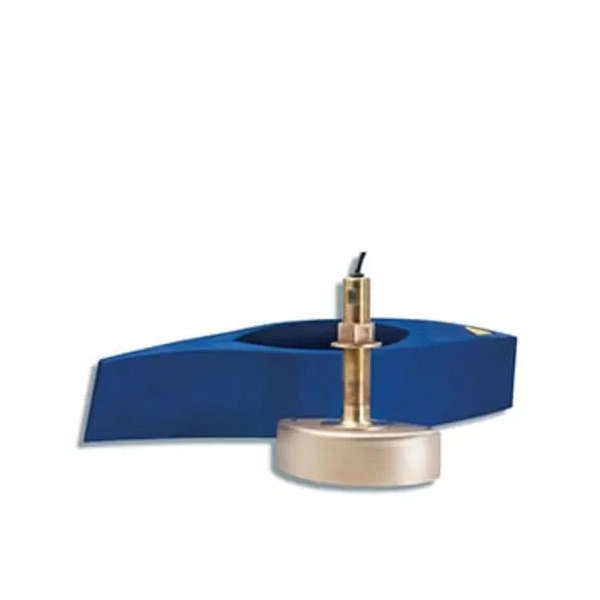

Garmin AIRMAR B258 Transducer
MPN: 010-10703-20
$1,739.99
Out of Stock (On Order)
Get notified when this product is back in stock
This mid-range 1 kW 8-pin transducer with a narrow beam is good for deep water and bottom definition. It has a depth of 1,500 to 2,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 14×23 to 3×5 degrees; and a 0 to 26 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.
| Weight | 9.1 lbs |
|---|---|
| Dimensions | 12 × 8 × 5 in |
| Brand | Garmin |
Specifications
Garmin AIRMAR B258 Transducer Specs
| Transducer frequency | 50/200 kHz |
|---|---|
| Transducer power | 1 kW |
| Transducer beamwidth | 14°x23°/3°x5° |
| Transducer maximum depth | 1,500-2,200 ft. |
| Transducer cable length | 39 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 0°-26° degree deadrise |
