Garmin AIRMAR B150M Transducers
Price range: $599.99 through $796.99
In stock
This entry level CHIRP solution provides good depth capability and target separation.

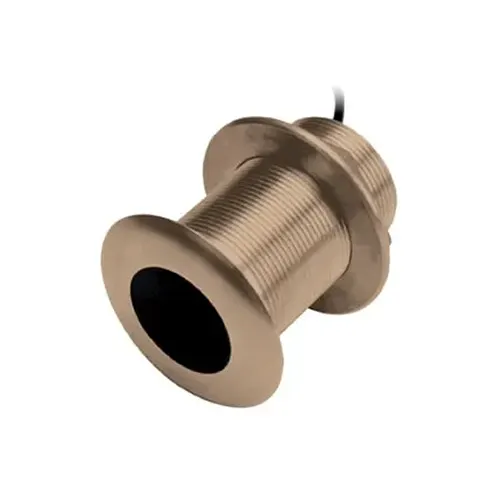

This 8-pin 300 W bronze thru-hull mount transducer has a depth of 600 ft; an operating frequency of 95-155 kHz; a beamwidth of 26/17 degrees; and 0 to 7 degree deadrise (010-11927-20), 8 to 15 degree deadrise (010-11927-21) or a 16 to 24 degree deadrise (010-11927-22).
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Compatible Garmin units:
- ECHOMAP UHD 4cv and 5cv Series (needs adapter cable 010-11947-00)
- ECHOMAP UHD 7cv Series
- ECHOMAP UHD sv Series (needs adapter cable 010-12122-10)
- ECHOMAP Ultra Series (needs adapter cable 010-12122-10)
- GPSMAP 8600xsv Series
- GPSMAP 1242xsv Plus (needs adapter cable 010-12122-10)
- GPSMAP xs Plus Series
- GPSMAP 7X3/9X3/12X3 Series (needs adapter cable 010-12122-10)
- GSD 24, GSD 26
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Garmin |
| Tilt | 0 Degree Tilt – Airmar B150M, 12 Degree Tilt – Airmar B150M, 20 Degree Tilt – Airmar B150M |
Specifications
Garmin AIRMAR B150M Transducer Specs
| Transducer frequency | CHIRP Mid (95-155 kHz) |
|---|---|
| Transducer power | 300 W |
| Transducer beamwidth | 26°/17° |
| Transducer maximum depth | 600 ft. |
| Transducer cable length | 39 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8-pin |
| 0° tilt – Transducer supported deadrise/transom angles | 0°-7° degree deadrise |
| 12° tilt -Transducer supported deadrise/transom angles | 8°-15° degree deadrise |
| 20° tilt -Transducer supported deadrise/transom angles | 16°-24° degree deadrise |
- Hull Material: fiberglass or wood
- Outside Hull Hole Saw Size: 51mm or 2″
- Cored Fiberglass Hull/Hull Interior Hull Hole Saw Size: 60mm or 23/8“
