Garmin 10″ GPSMAP 8610xsv and Livescope XR Arclab Ice Fishing System
$9,891.91
Due to the included lithium ion battery, this product can only ship via Ground through all couriers.
Out of Stock (On Order)
Get notified when this product is back in stock
- Description
- Additional information
- Product Specification
- Package Includes
- Product Guides & Documentation
- Accessories
Due to the included lithium ion battery, this product can only ship via Ground through all couriers.
Garmin 10″ GPSMAP 8610xsv and Livescope XR Arclab Ice Fishing System

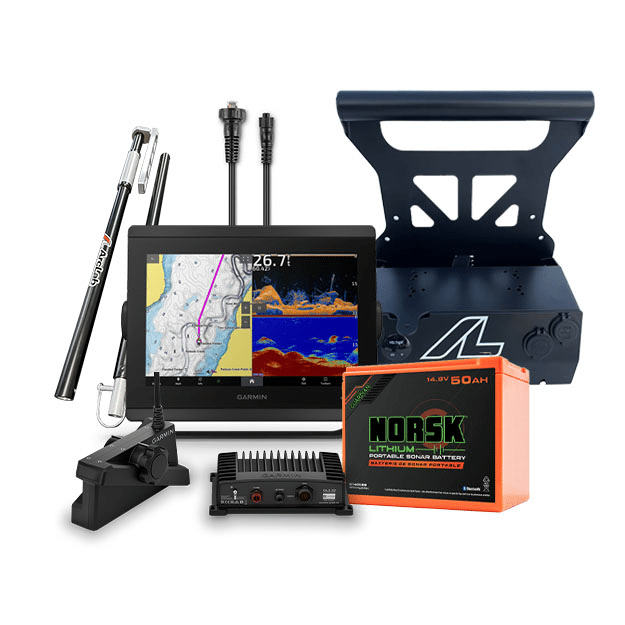

This custom bundle offers you the Garmin GPSMAP 8610xsv and Livescope XR Arclab Ice Fishing System for your Ultimate Ice Fishing Experience. You’ll love the Livescope XR System with GLS10 and LVS62 modules for the boat and ice kit, the Pro Series Transducer Pole and Shuttle, Norsk 14.8V 50AH battery and charger.
This Bundle Includes:
| Weight | 44 lbs |
|---|---|
| Dimensions | 20 × 30 × 20 in |
| Brand | Garmin, ArcLab, Norsk |
Product Specification
GPSMAP 8610xsv Specifications: |
|
General |
|
|
Physical dimensions
|
10.25″ x 8.0625″ x 2.95″ (25.9 cm x 20.5 cm x 7.5 cm)
|
|
Weight
|
5.2 lbs (2.4kg) |
|
IPX6 and IPX7
|
|
|
Display type:
|
touchscreen IPS display (anti-glare finish)
|
|
Display size
|
8.6″ x 5.4″ (21.8 cm x 13.7 cm)
|
|
Display resolution
|
WUXGA; 1920 x 1200 pixels
|
|
Power consumption
|
2.0 A
|
|
Antenna:
|
Internal or external over NMEA 2000
|
|
Mounting options:
|
Bail, flat or flush (Garmin do not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
|
|
Receiver
|
10 Hz GPS/GLONASS/Galileo
|
|
Garmin Marine Network™ ports
|
2
|
Maps & Memory |
|
|
Preloaded maps
|
BlueChart® g3 and LakeVü g3
|
|
Accepts data cards
|
2 microSD cards (on back)
|
|
Waypoints
|
5,000
|
|
Routes
|
100 (250 waypoints each)
|
|
Track log
|
50,000 points; 50 saved tracks
|
Outdoor Recreation Features |
|
|
Tide tables
|
yes
|
Chartplotter Features |
|
|
Garmin Radar compatible
|
yes
|
|
Garmin Sonar compatible
|
yes
|
|
Garmin SmartMode compatible (customizable monitor presets)
|
yes
|
|
Supports AIS (tracks target ships position)
|
yes
|
|
Supports DSC (displays position data from DSC-capable VHF radio)
|
yes
|
|
Supports FUSION-Link™ compatible radios
|
yes
|
|
GSD™ Black Box sonar support
|
yes
|
|
GCV™ Black Box sonar support
|
yes
|
|
ActiveCaptain compatible
|
yes
|
|
Garmin Helm compatible
|
yes
|
|
GRID™ (Garmin Remote Input Device) compatible
|
yes
|
|
Wireless remote compatible
|
yes
|
Sonar Features & Specifications |
|
|
Dual-frequency (50/200 kHz) sonar capable
|
Yes
|
|
Dual-beam (77/200 kHz) sonar capable
|
Yes
|
|
Frequencies supported
|
Traditional: 50/200, 77/200, 83/200
Single Channel CHIRP: 40-250 Dual Channel CHIRP: 40-250 SideVü/ClearVü: CHIRP 260/455/800 Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz (dependent on transducer) |
|
Transmit power
|
1 kW traditional; 1 kW CHIRP
|
|
Yes (built-in)
|
|
|
ClearVü
|
yes
|
|
SideVü
|
yes
|
|
Maximum depth
|
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
|
Connections |
|
|
NMEA 2000® compatible
|
yes
|
|
Transducer pin numbers
|
1 – LVS sonar, 1 – 12 pin scanning sonar, 1- 8 pin sonar
|
|
NMEA 0183 input ports
|
1 differential
|
|
NMEA 0183 output ports
|
1 differential
|
|
Video input ports
|
1 – BNC composite
1 – HDMI (HDCP compliant) |
|
Video output ports
|
1 HDMI
|
|
Wireless connectivity
|
yes
|
Package Includes
This Exclusive Bundle Includes:
- Garmin GPSMAP 8610xsv with Garmin Navionics+
- GPSMAP 8610xsv
- Power cable
- NMEA 2000® drop cable
- NMEA 2000 T-connector
- Bail mount with knobs
- Flush mount kit
- Sun cover
- Trim piece snap covers
- Documentation
- Garmin LiveScope XR System
- LiveScope GLS 10 sonar black box
- LiveScope XR LVS62 transducer
- Perspective mount (LiveScope XR LVS62 transducer only)
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
- ArcLab 12V Deluxe Electronics Shuttle LVS62 LiveScope XR Pole Bundle
- 12v SAE charge port
- 8/32 304 stainless machine screws and nuts
- Battery tie down strap
- 3M VHB double sided adhesive pad
- ArcLab decal
- PLUS
- 2 Piece Pro Transducer Pole
- Sub Zero Tripod
- Cable Clips
- Quick Release transducer mount for Garmin LiveScope XR LVS62 transducer (GTM-6200)
- Hercules Handcuff
- Norsk 14.8V 50Ah Lithium-Ion Battery with Charger
- Garmin Marine Network Adapter Cable Small (Female) to Large
