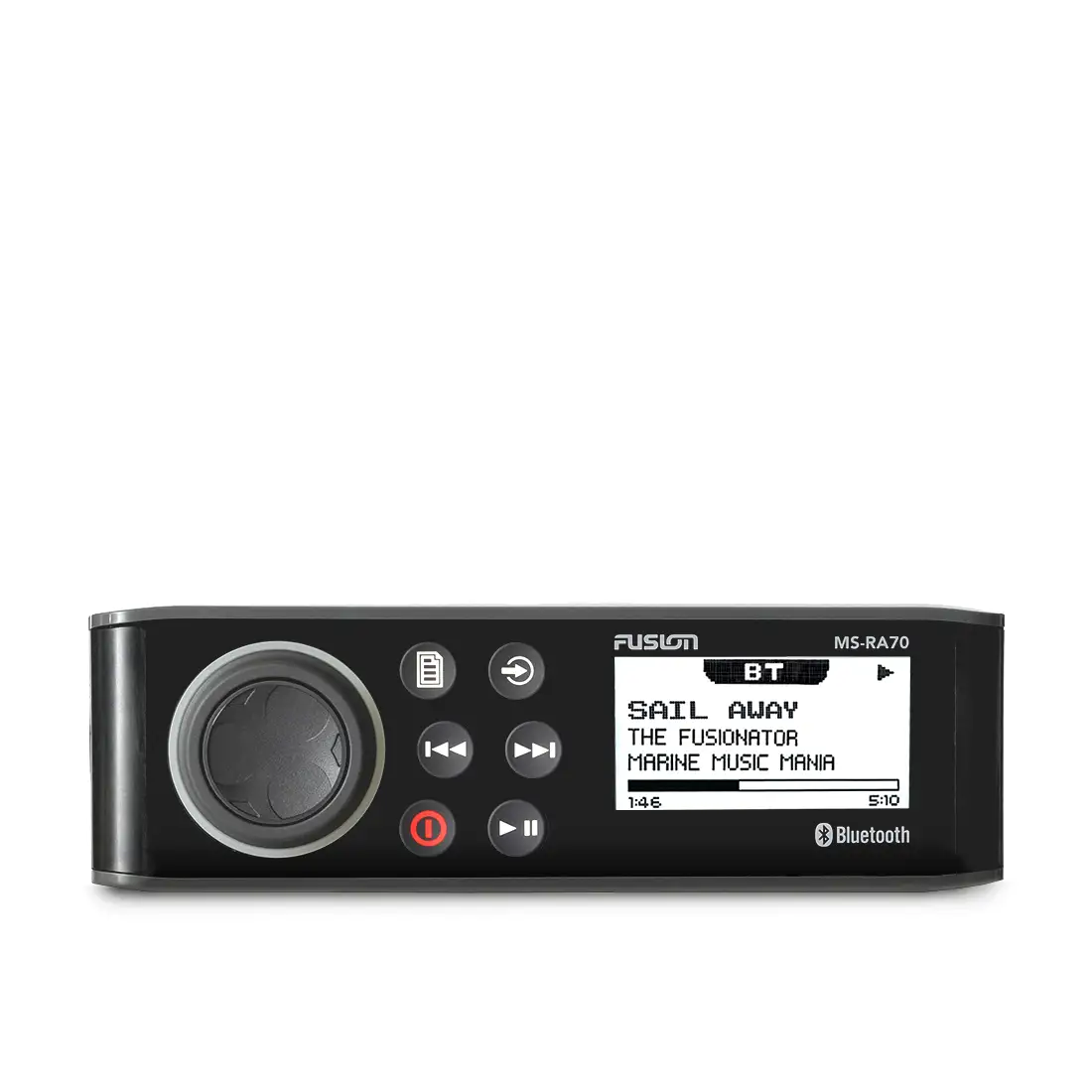

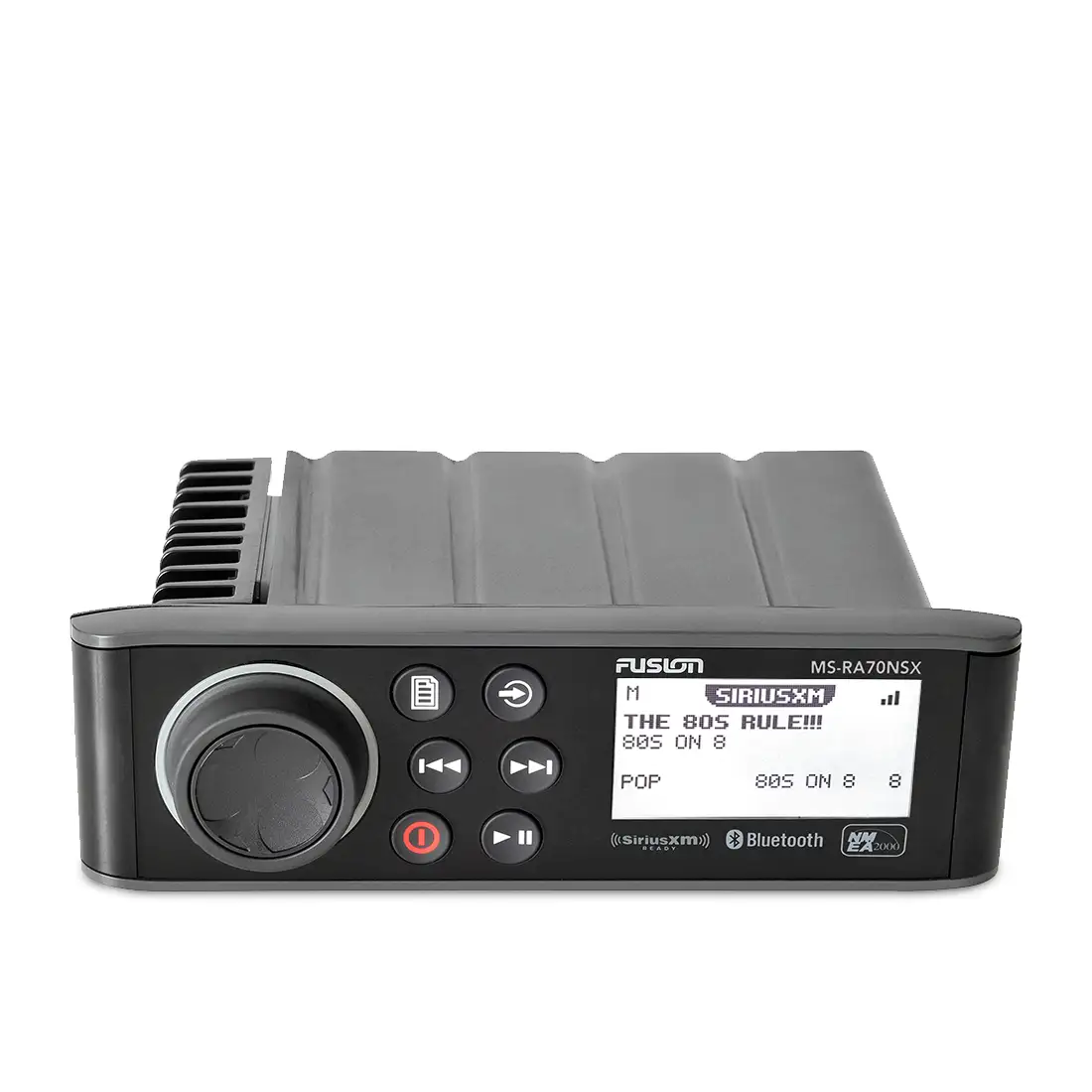

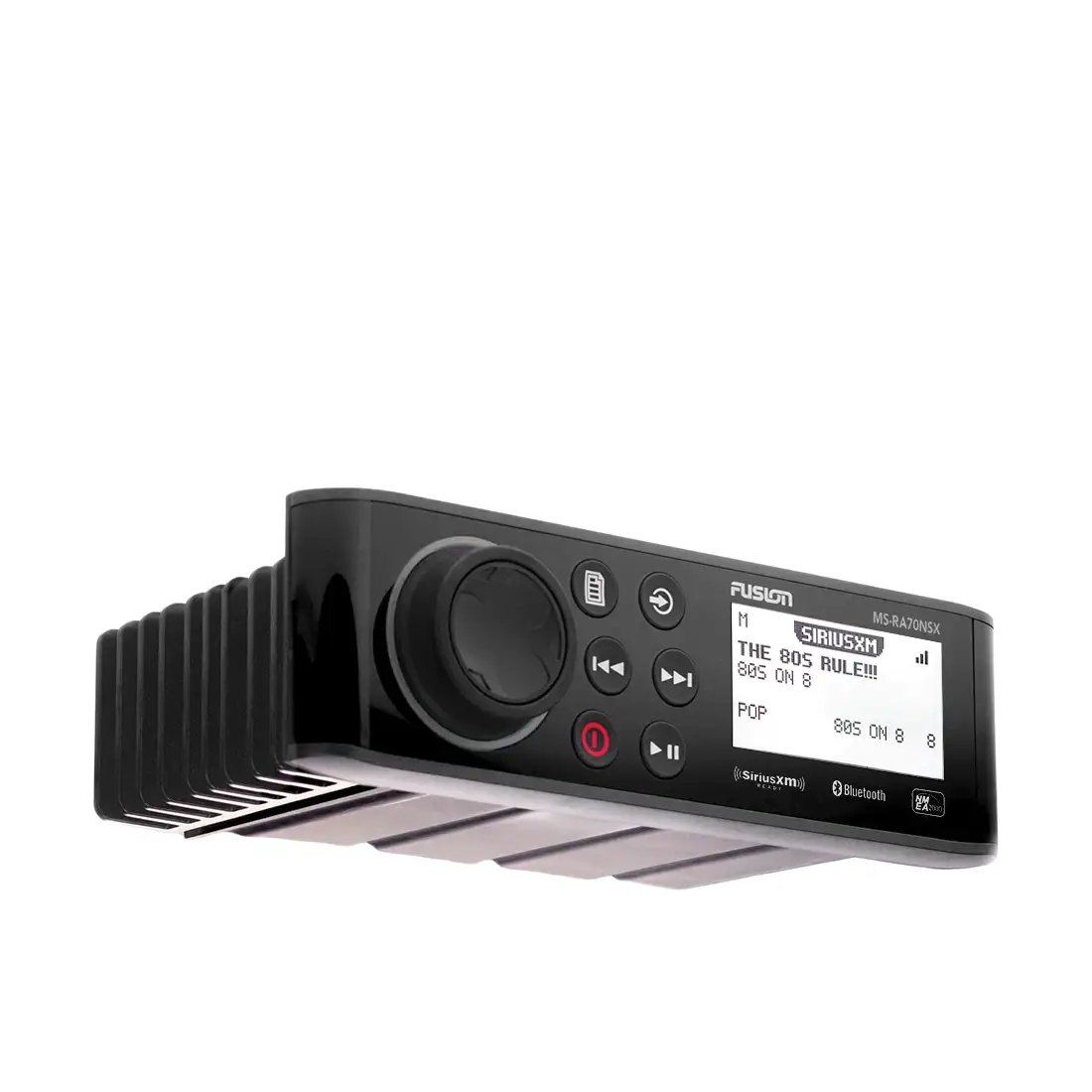

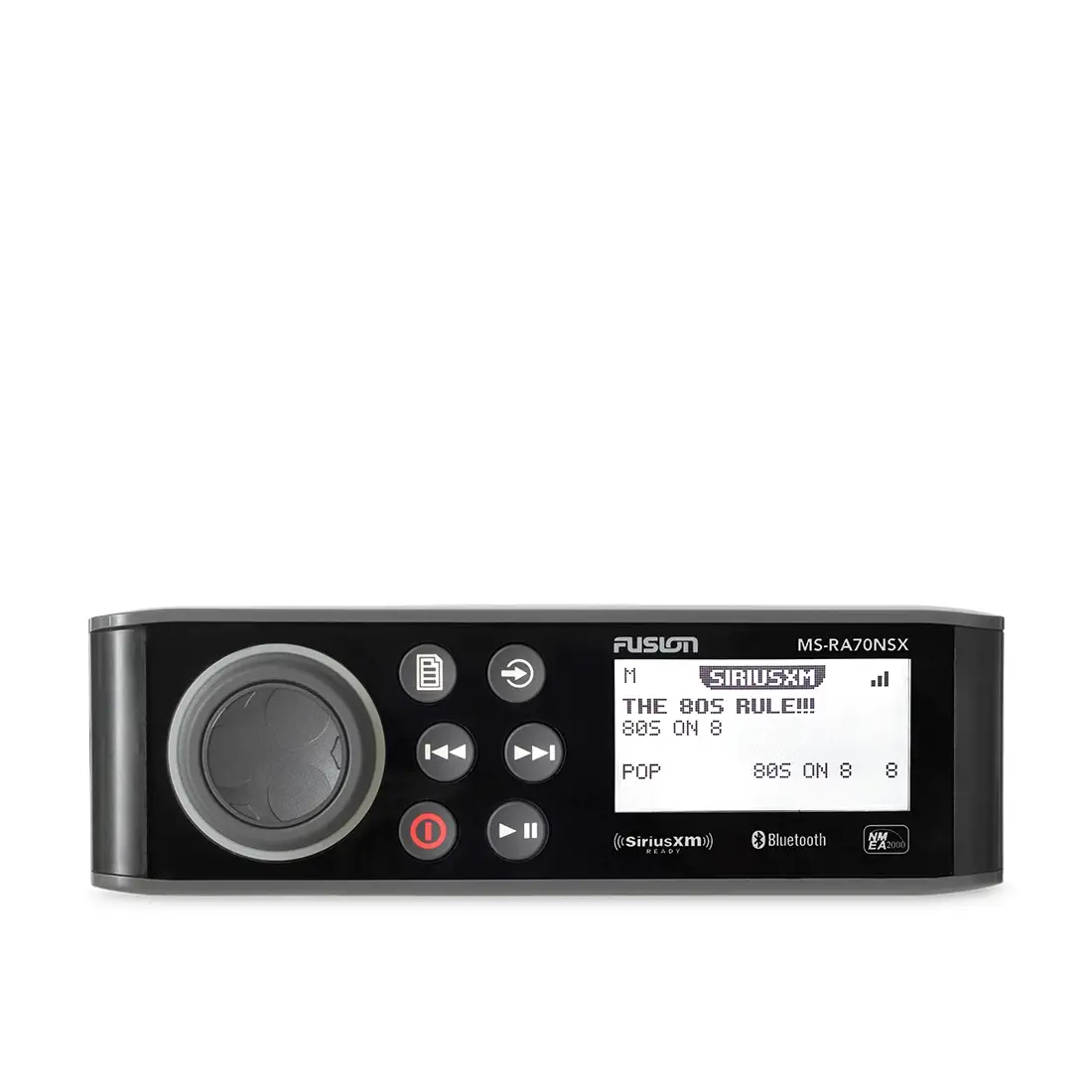

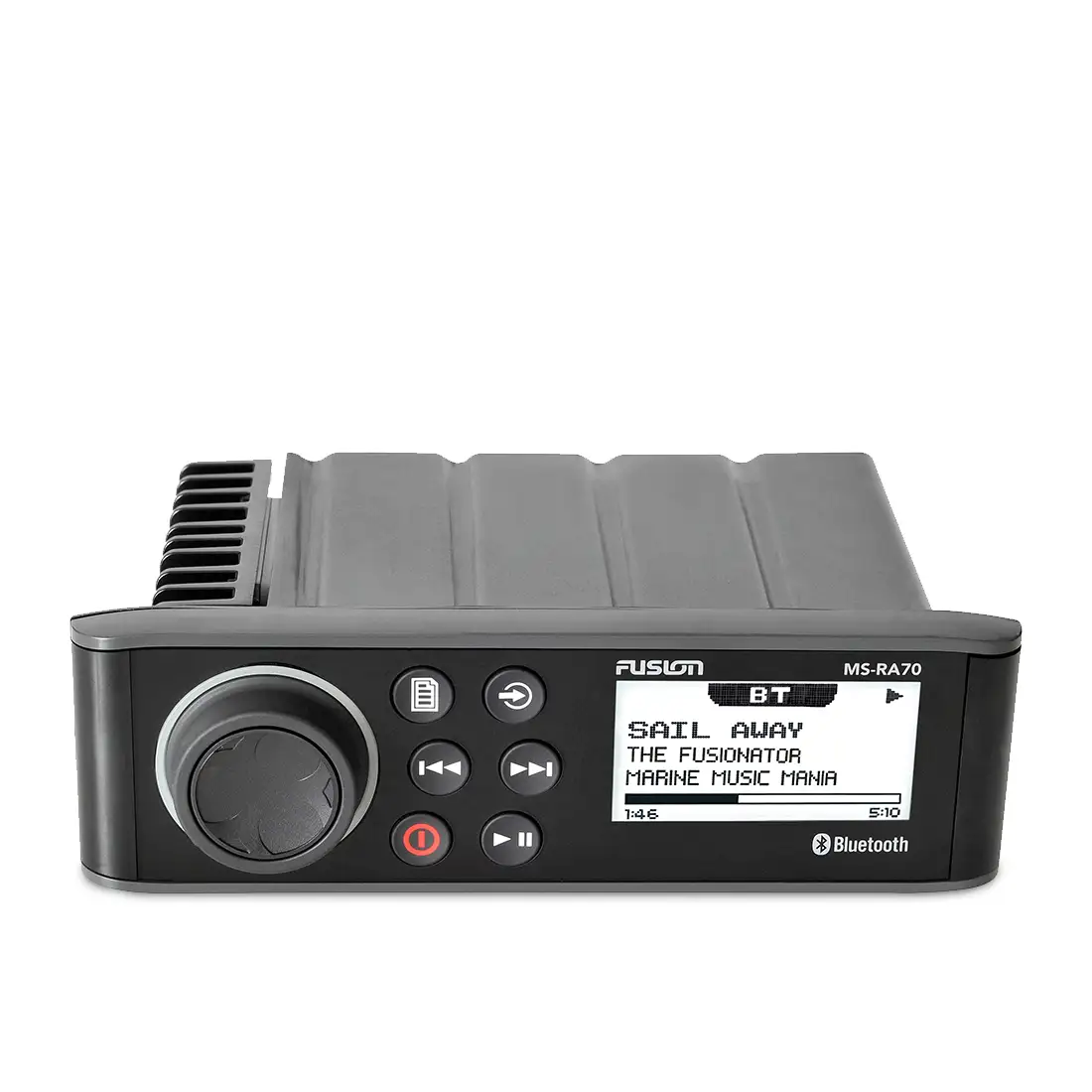

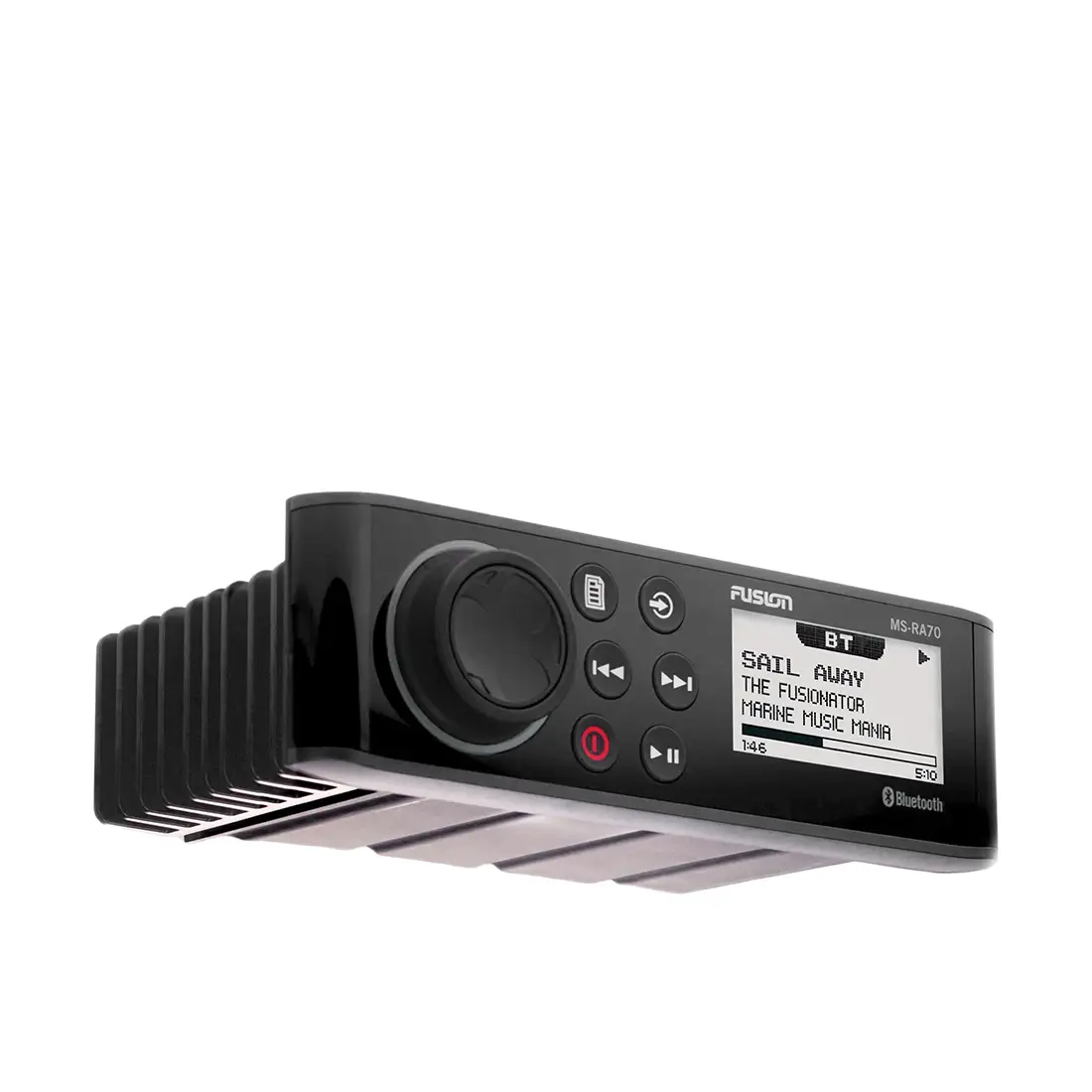

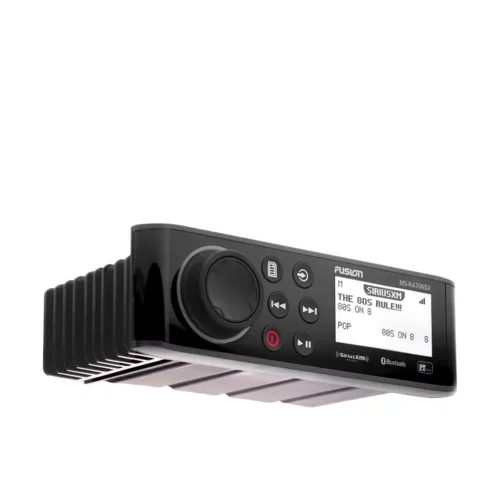

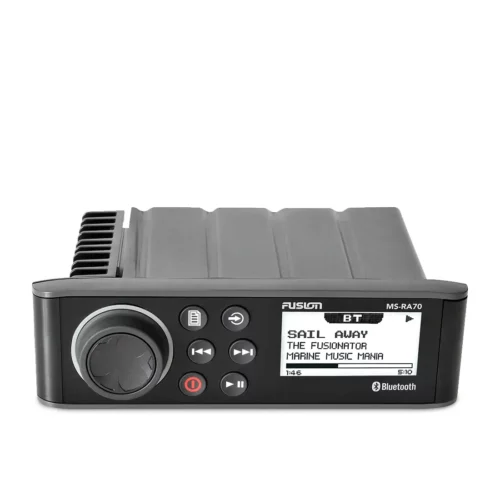

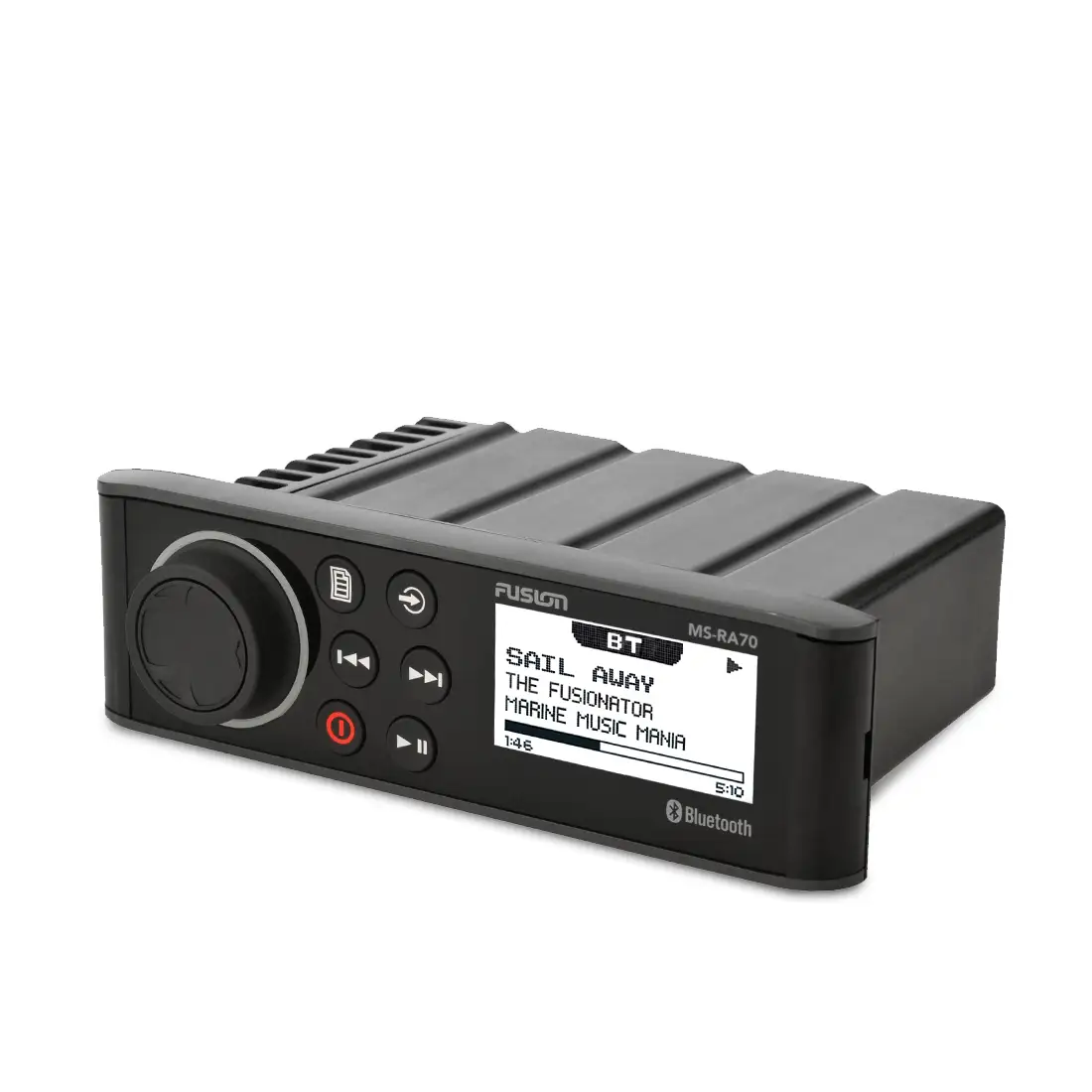

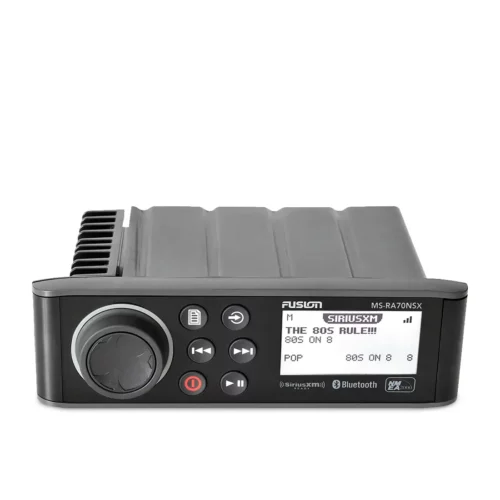

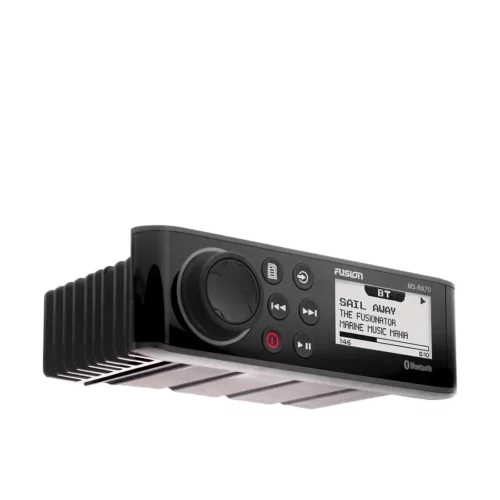

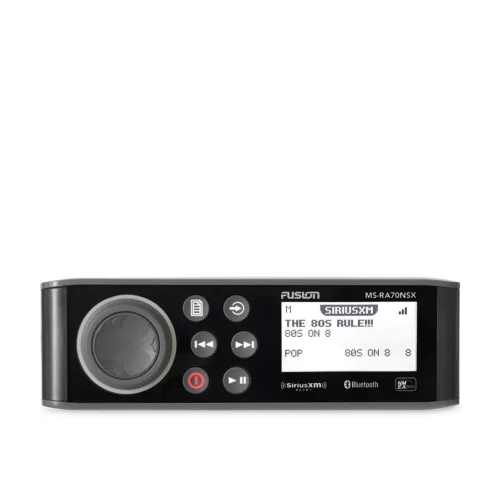

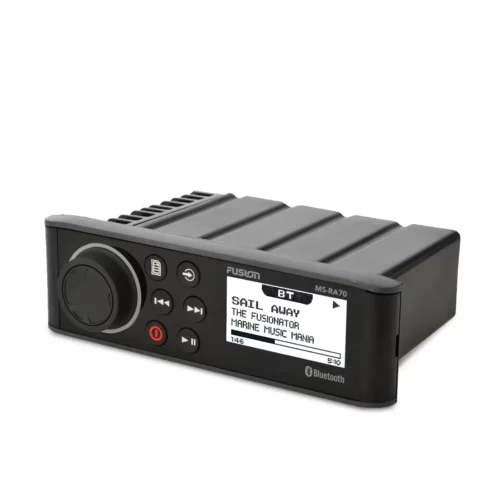

Fusion RA70 Series Marine Stereos
Price range: $399.99 through $469.99
Seamlessly retrofit your existing DIN-sized stereo with a value-packed RA70 Series marine stereo from Fusion.
Out of Stock (On Order)
- Description
- Additional information
- Specifications
- Package Includes
- Compatible Devices
- Product Guides & Documentation
- Accessories
Seamlessly retrofit your existing DIN-sized stereo with a value-packed RA70 marine stereo from Fusion.
Fusion RA70 Features:
- Seamlessly retrofit your existing DIN-sized cutout without needing to reconfigure dash space.
- Optically bonded monochrome LCD improves screen visibility.
- Built-in Class-AB amplifier delivers efficiency with reduced distortion.
- Multi-Zone™ Technology gives you control of two separate audio zones.
- Control your music from a compatible multifunction display (MFD)¹, smart device or Garmin watch.
IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the RA70 Series has an IPX7-rated water-resistant front panel to perform and last on board.
MULTIPLE MOUNTING OPTIONS

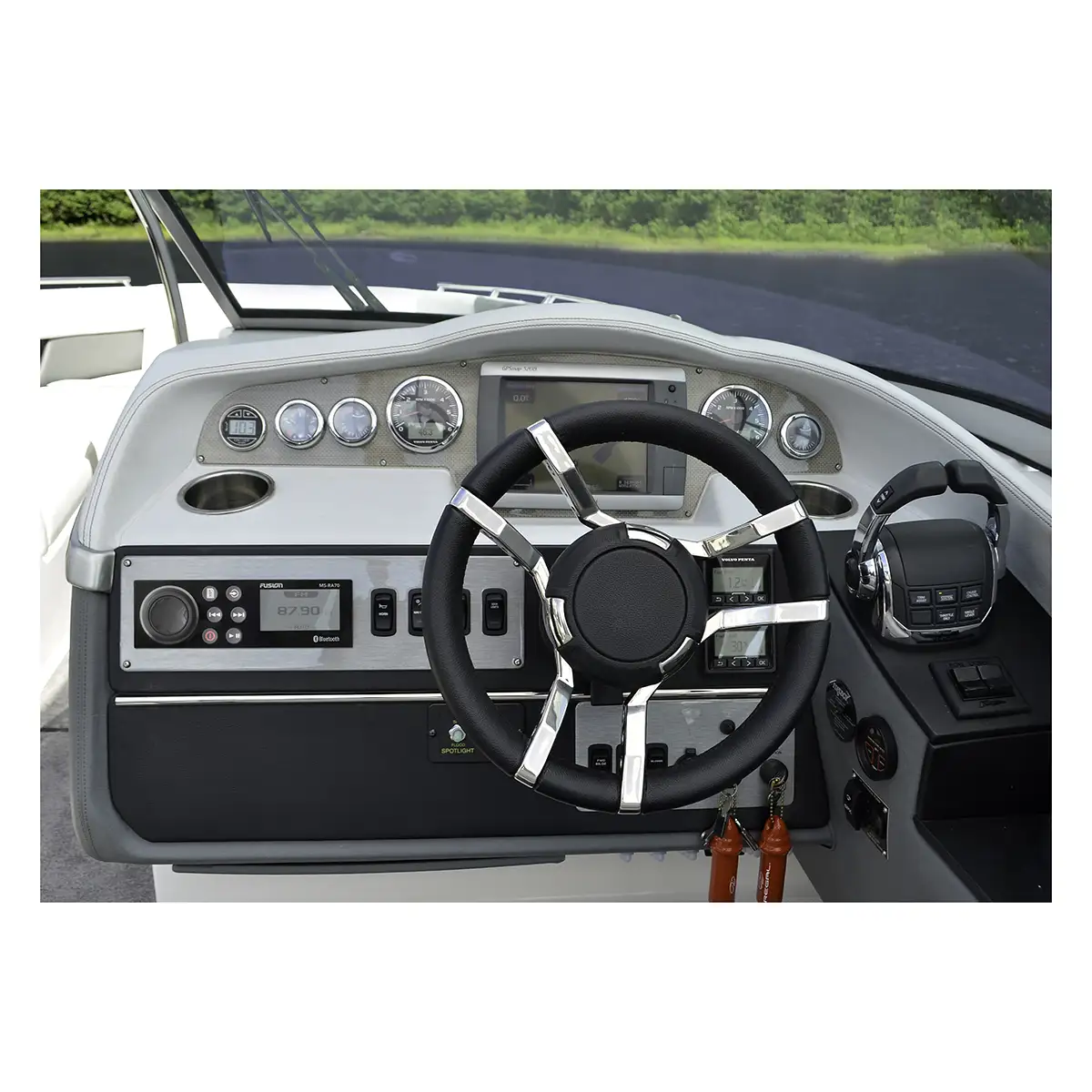

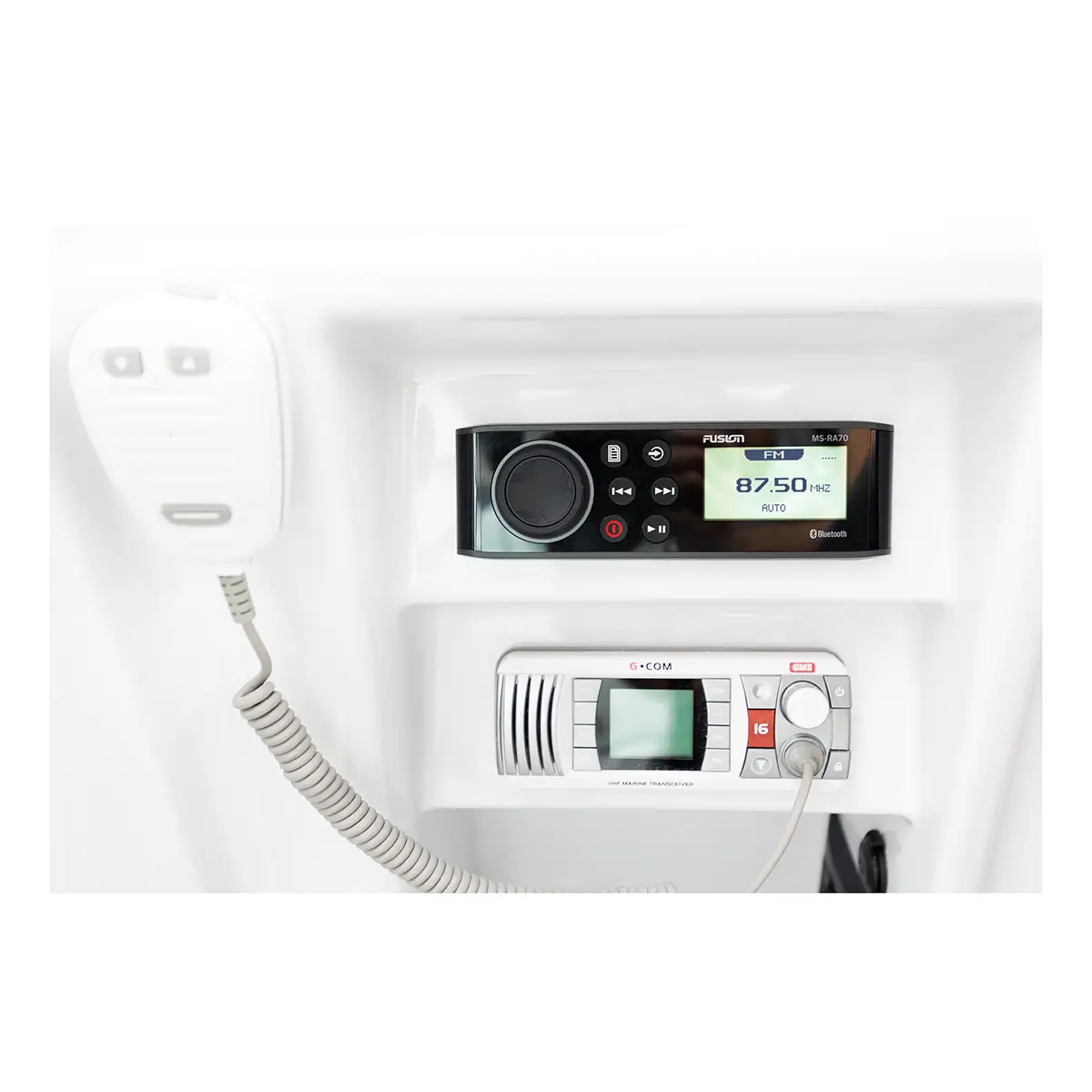

Install the RA70 Series marine stereo with a conventional flush finish, or integrate it into a glass helm for a stunning flat finish.
FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including BLUETOOTH® technology, advanced SiriusXM® features², DAB+ radio³, AM/FM radio, AUX and USB connections.
AVAILABLE ADVANCED SIRIUSXM FEATURES
A selection of advanced features are now available on SiriusXM².
¹ Available on MS-RA70N and MS-RA70NSX via an NMEA 2000 connection
² Available only on MS-RA70NSX
³Available only on MS-RA70 and MS-RA70N
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Fusion |
| Version | MS-RA70 Marine Stereo with BLUETOOTH, MS-RA70NSX Marine Stereo with NMEA 2000 and SiriusXM-Ready |
Specifications
General |
|
| Physical dimensions (HxWxD) | 2.36″ x 7.40″ x 4.87″ (60 x 188 x 123.5 mm) |
| Weight | 19.6 oz (556 g) |
| Water rating | IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max) | 15 A |
| NMEA 2000 LEN | 1 (50 mA) |
| Bluetooth wireless range | Up to 30 ft (10 m) |
| ANT wireless range | Up to 10 ft (3 m) |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +1.9 dBm nominal ANT 2.4 GHz @ +1.9 dBm nominal |
| Compass-safe distance | 5.9″ (150 mm) |
Stereo Features |
|
| Display | 128 x 64 optically bonded monochrome LCD |
| Built-in amplifier | Class-AB |
| Peak power | 200 W |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control | MS-RA70: yes (smartphone and Garmin watch) MS-RA70N/MS-RA70NSX: yes (MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth wireless technology | yes |
| ANT wireless technology | yes |
| SiriusXM-ready | MS-RA70NSX only (requires SiriusXM Connect vehicle tuner) |
| DAB+ ready | MS-RA70 and MS-RA70N only; (requires DAB100A antenna module) |
| NRX remote compatibility | MS-RA70N and MS-RA70NSX only |
| Multi-language interface | Dutch / English / French / German / Italian / Spanish |
| Fits DIN-sized cutout | yes |
| Software updates | USB |
| Warranty | 1 year |
Sources |
|
| Sources | AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 / AOA MS-RA70NSX only: SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) MS-RA70 and MS-RA70N only: DAB+ ready (available in Europe and Australia only) |
Connectivity |
|
| Auxiliary input | One RCA input (AUX) |
| NMEA 2000 | MS-RA70N and MS-RA70NSX only: 1 port |
| USB 2.0 | 1 port |
| SiriusXM satellite radio | MS-RA70NSX only: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| AM/FM radio | 1 Motorola antenna connector port |
| Speaker | 2 x speaker connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line out | 2 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | 1 x mono output (requires external amplification) |
Package Includes
In the MS-RA70 Box (010-01516-01):
- MS-RA70 Radio
- DIN mounting plate
- Four 8-gauge, self-tapping screws
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- Documentation
In the MS-RA70NSX Box (010-01516-30):
- MS-RA70 Radio
- 6 ft (2 meters) NMEA 2000® drop cable
- DIN mounting plate
- Four 8-gauge, self-tapping screws
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- Documentation
Compatible Devices
Compatible Garmin Devices to MS-RA70 Series Marine Radios:
- ECHOMAP UHD 6xcv Series
- ECHOMAP UHD 7xcv Series
- ECHOMAP UHD 7xsv Series
- ECHOMAP UHD 9xsv Series
- ECHOMAP Ultra Series
- GPSMAP 1xx2xsv Series
- GPSMAP 7x3xsv Series
- GPSMAP 9x3xsv Series
- GPSMAP 1xx3xsv Series
- GPSMAP 8000 Series
- GPSMAP 8700 Black Box
- quatix 6/6 Solar
Click here for a list of current compatible devices
