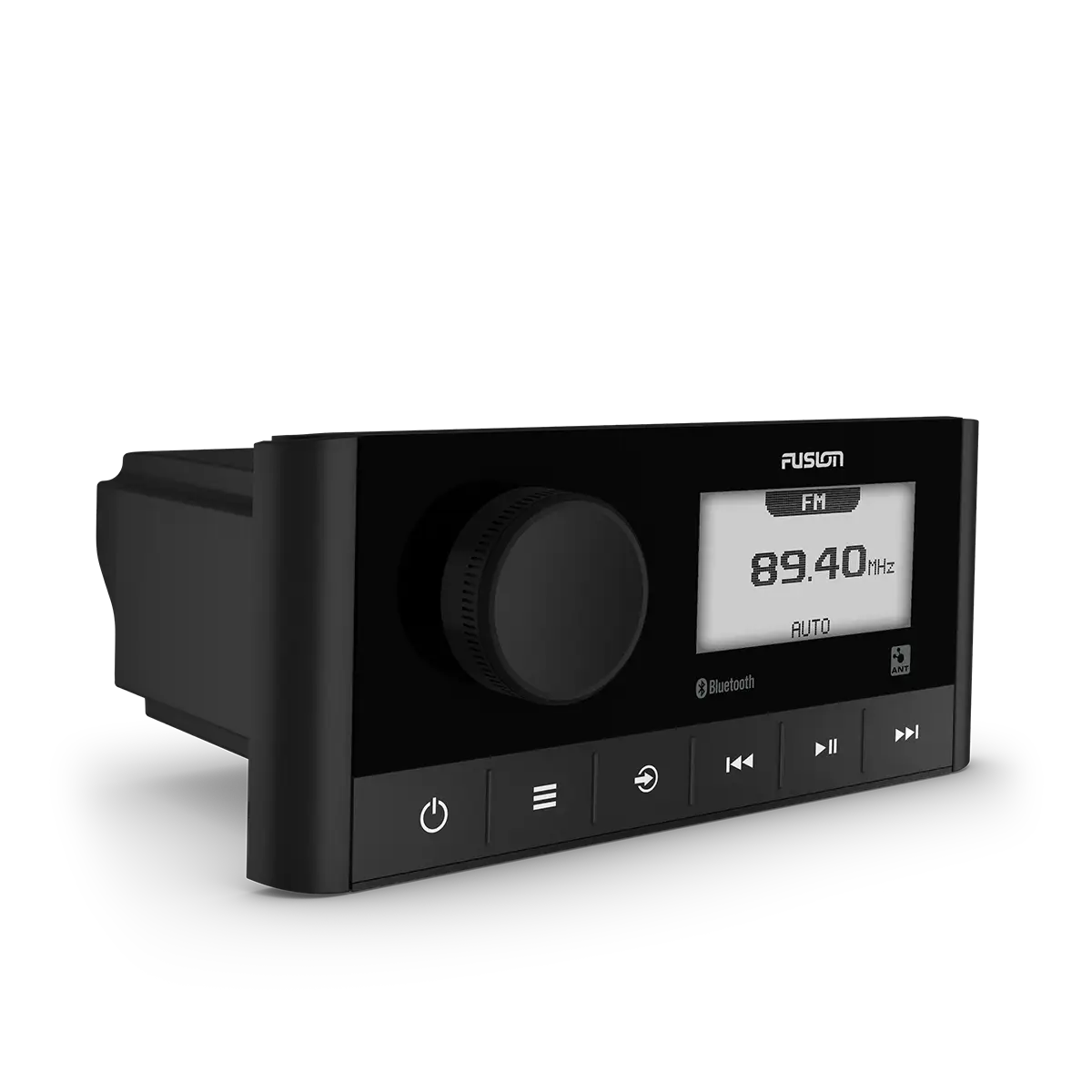

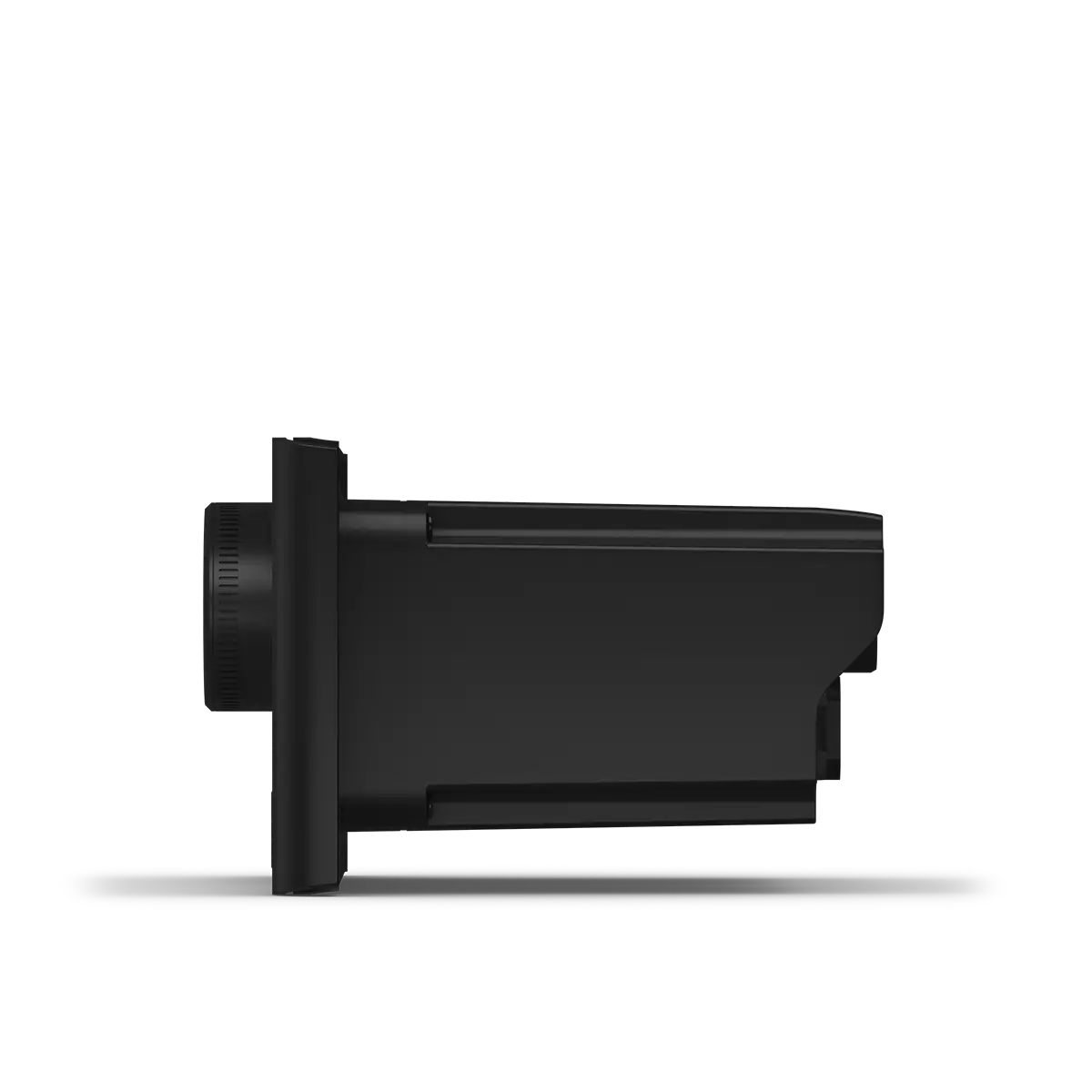

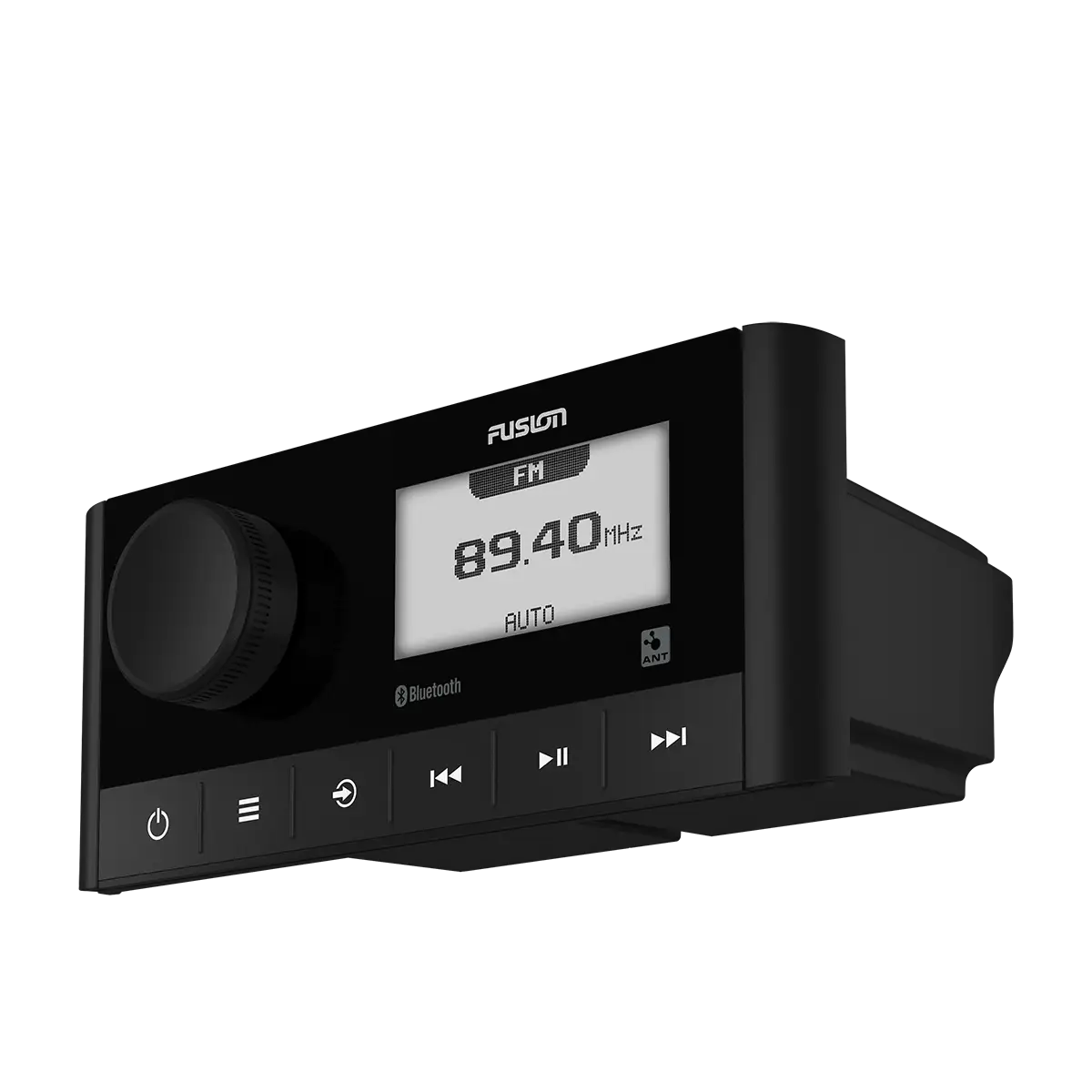

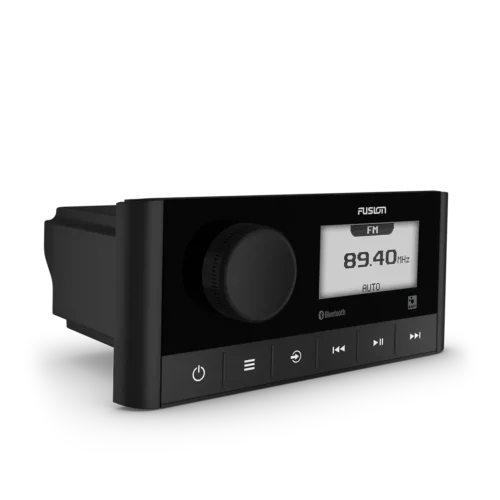

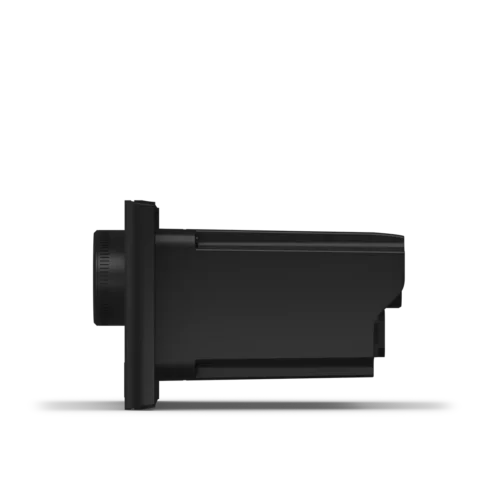

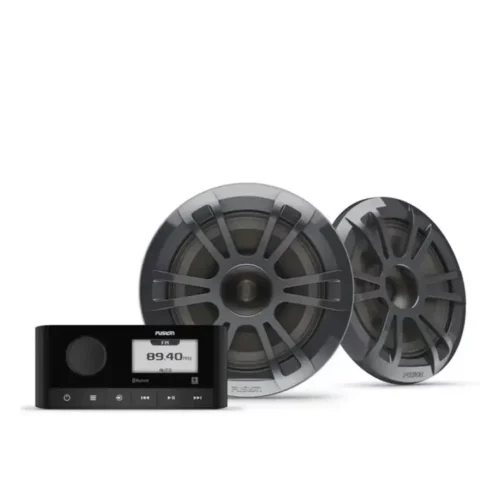

Fusion MS-RA60 Stereo and Speaker Kits
Price range: $449.99 through $479.99
Outfit your boat with an exceptional sound system at an outstanding value.
Out of Stock (On Order)
Fusion MS-RA60 Stereo and Speaker Kits Features:
- Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
- Conveniently update software via BLUETOOTH® technology from the Fusion-Link™ app on your compatible smart device.
- Built-in Class D amplifier brings aboard higher efficiency and greater output.
- Multi-Zone™ Technology makes you the captain of two separate audio zones.
- Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.
PX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT
The Fusion speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the Fusion speakers are designed and built for superior quality and robustness.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The Fusion speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Fusion |
| Version | Fusion MS-RA60 and EL Classic Speaker Kit, Fusion MS-RA60 and EL Sports Speaker Kit |
Specifications

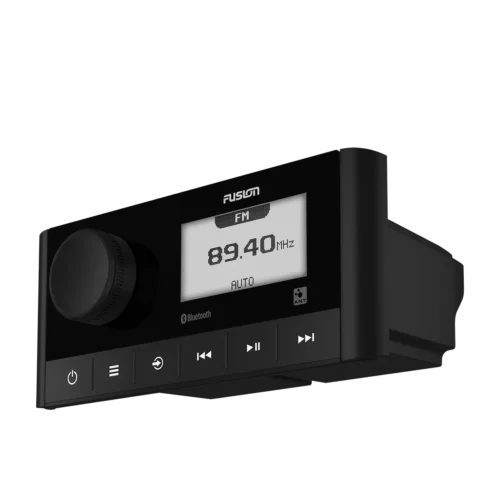

Fusion MS-RA60 Stereo and Speaker Kit Specs
Stereo Specifications |
|
| Physical dimensions (HxWxD) | 2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm) |
| Weight | 11.1 oz (316 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| BLUETOOTH® wireless range | Up to 30 ft (10 meters) |
| ANT wireless range | Up to 10 ft (3 meters) |
| Wireless frequencies/protocols | BLUETOOTH 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 5.9″ (150 mm) |
| Display | 2.3″ perimeter bonded monochrome dot matrix LCD |
| Built-in amplifier | Class-D (minimum 4 ohm impedance) |
| Peak power | 180 W |
| Rated power output (4 ohm) | 22 W rms x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control | yes (with smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| BLUETOOTH wireless technology | yes |
| ANT wireless technology | yes |
| DAB+ ready | yes (DAB tuner built in) |
| Multi-language interface | Dutch, English, French, German, Italian, Spanish |
| Software updates | Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app |
| Warranty | 1 year |
| Sources | AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only) |
| Auxiliary input | One RCA input (AUX) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 speaker connections (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | 1 zone (requires external amplification) |
| Line out | Zone 1 (L + R, requires external amplification) |
| Subwoofer out | Zone 1 (requires external amplification) |
Speaker Specifications |
|
| Physical dimensions (Diameter x Depth) | EL Classic Speaker: 6.93″ x 2.26″ (176 x 57.5 mm) EL Sports Speaker: 6.93” x 2.32” (176 x 59 mm) |
| Water rating | IP65 |
| Configuration | Full range |
| Speaker size | 6.5″ |
| Peak power (watts) | 80 W |
| RMS Power (watts) | 20 W |
| Sensitivity (1 watt/1 meter) | 88 dB |
| Frequency response | 45 Hz-16 kHz |
| Nominal impedance | 4 ohm |
| Recommended amplifier power (RMS) | 20-40 W/Ch |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 0.79″ |
| Cone material | Polypropylene cone with cloth surround |
| Compass-safe distance | 100″ (254 cm) |
| Warranty | 1 year |
| Mounting diameter clearance | 5.12″ (130 mm) |
| Mounting depth clearance | 1.69″ (43 mm) |
Package Includes

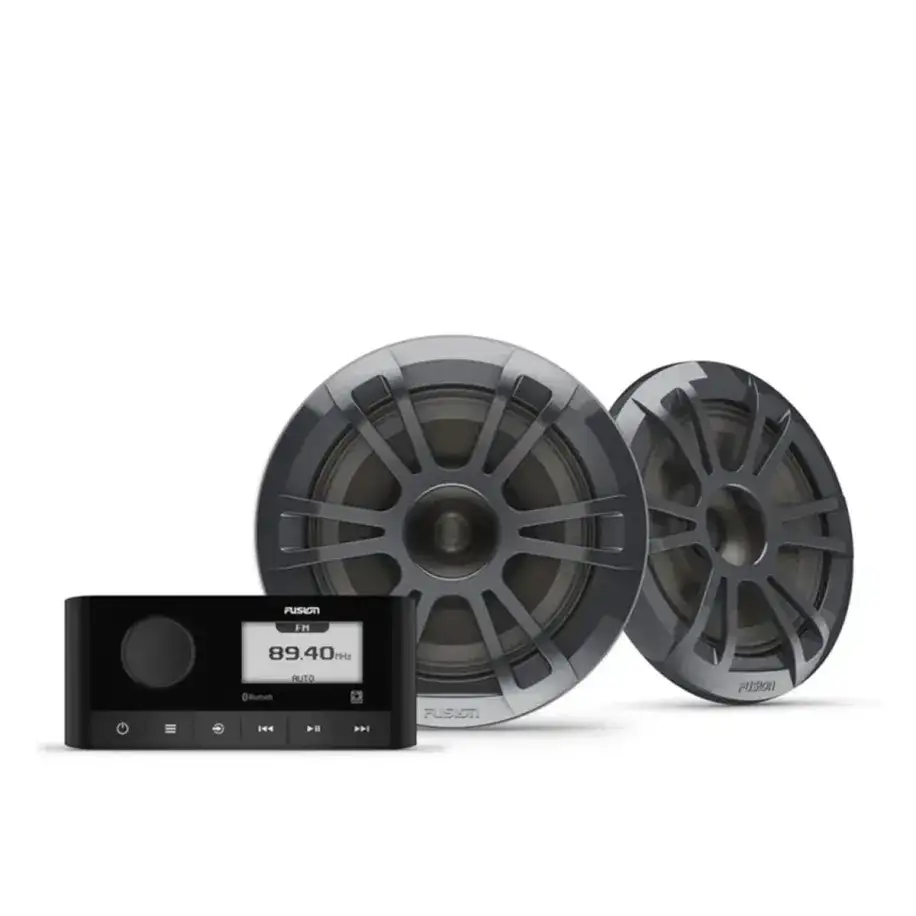

MS-RA60 Stereo and EL Sports Speaker Kit (010-02405-61)
- MS-RA60 marine stereo
- One pair of EL Series sports gray marine speakers
- AM/FM stealth antenna
- Two 19 ft (6 meter) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))

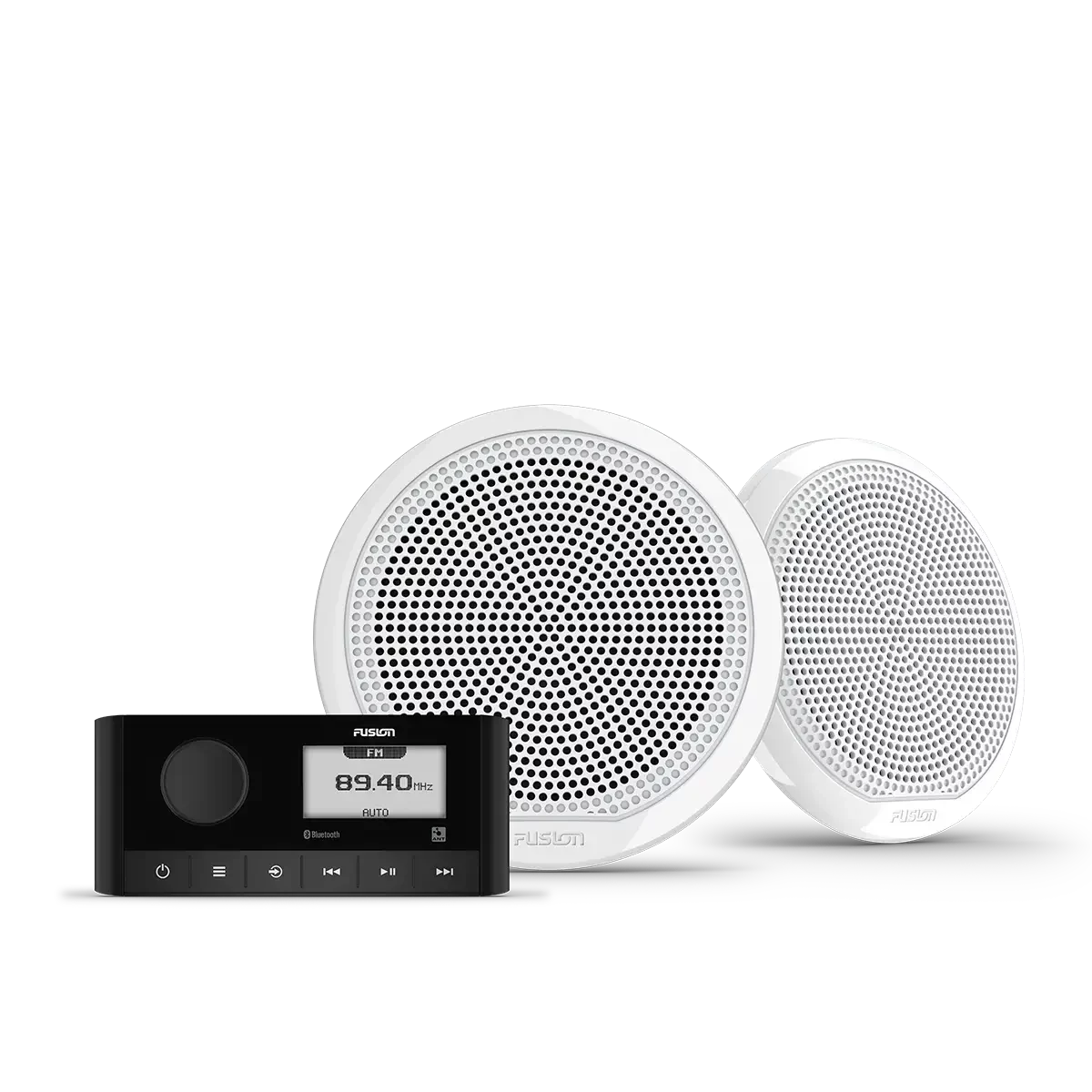

MS-RA60 Stereo and EL Classic Speaker Kit (010-02405-51)
- MS-RA60 marine stereo
- One pair of EL Series classic white marine speakers
- AM/FM stealth antenna
- Two 19 ft (6 meter) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
