Fusion MS-RA210 Stereo and Speaker Kits
MPN:
$769.99 – $799.99Price range: $769.99 through $799.99
Outfit your boat with an exceptional sound system at an outstanding value by pairing your MS-RA210 boat stereo with a set of superior quality Fusion marine speakers.
In stock
SKU: N/A
Categories: Marine, Entertainment
Fusion MS-RA210 Stereo and Speaker Kits Features:

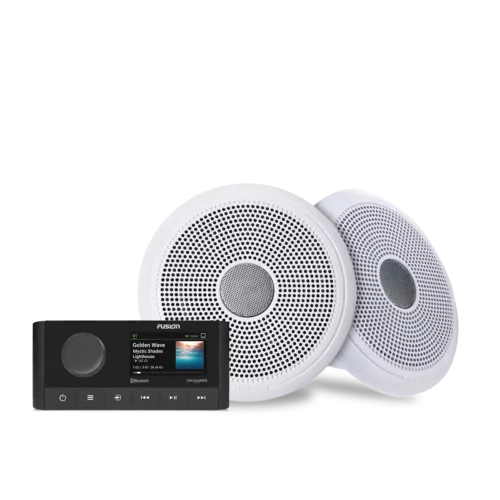

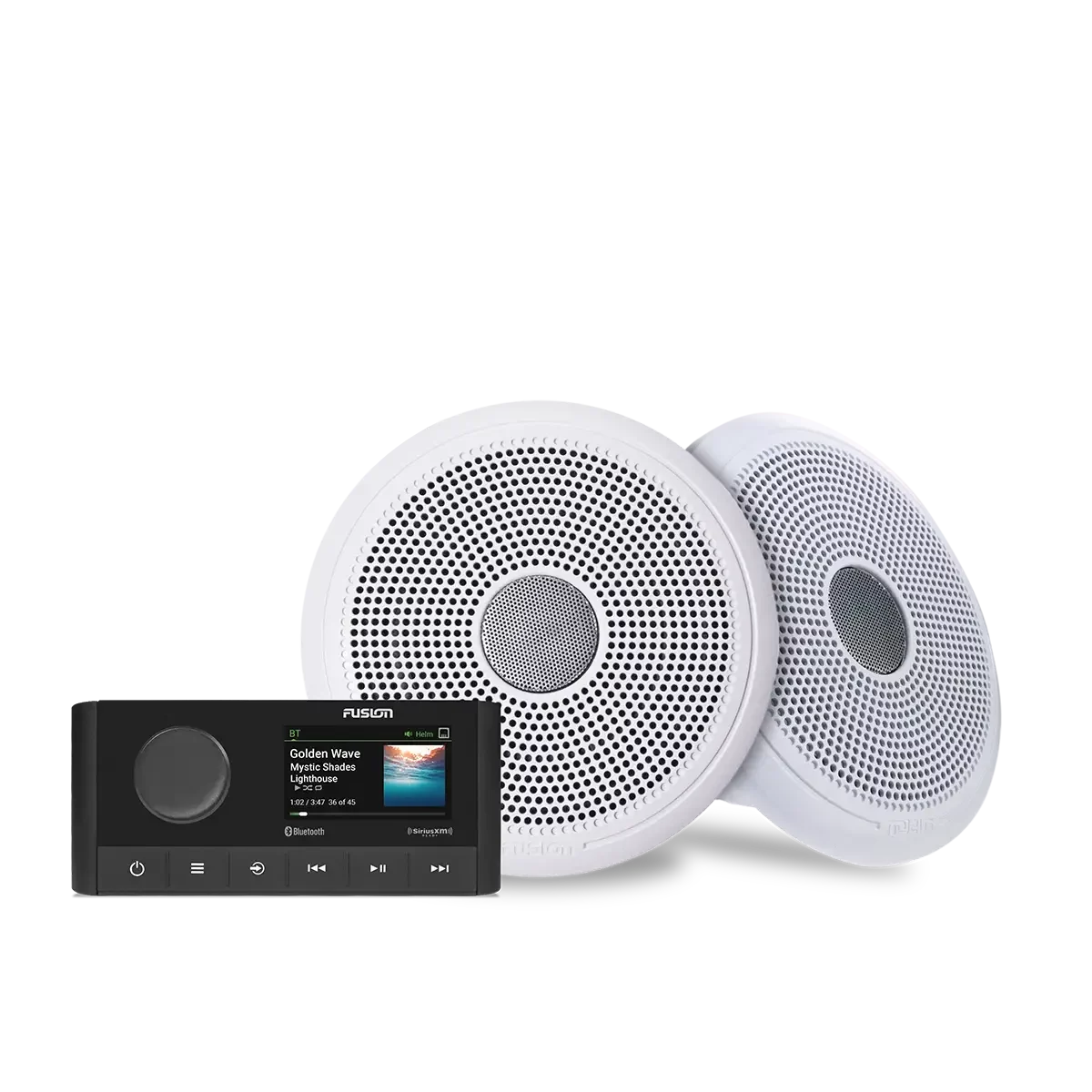

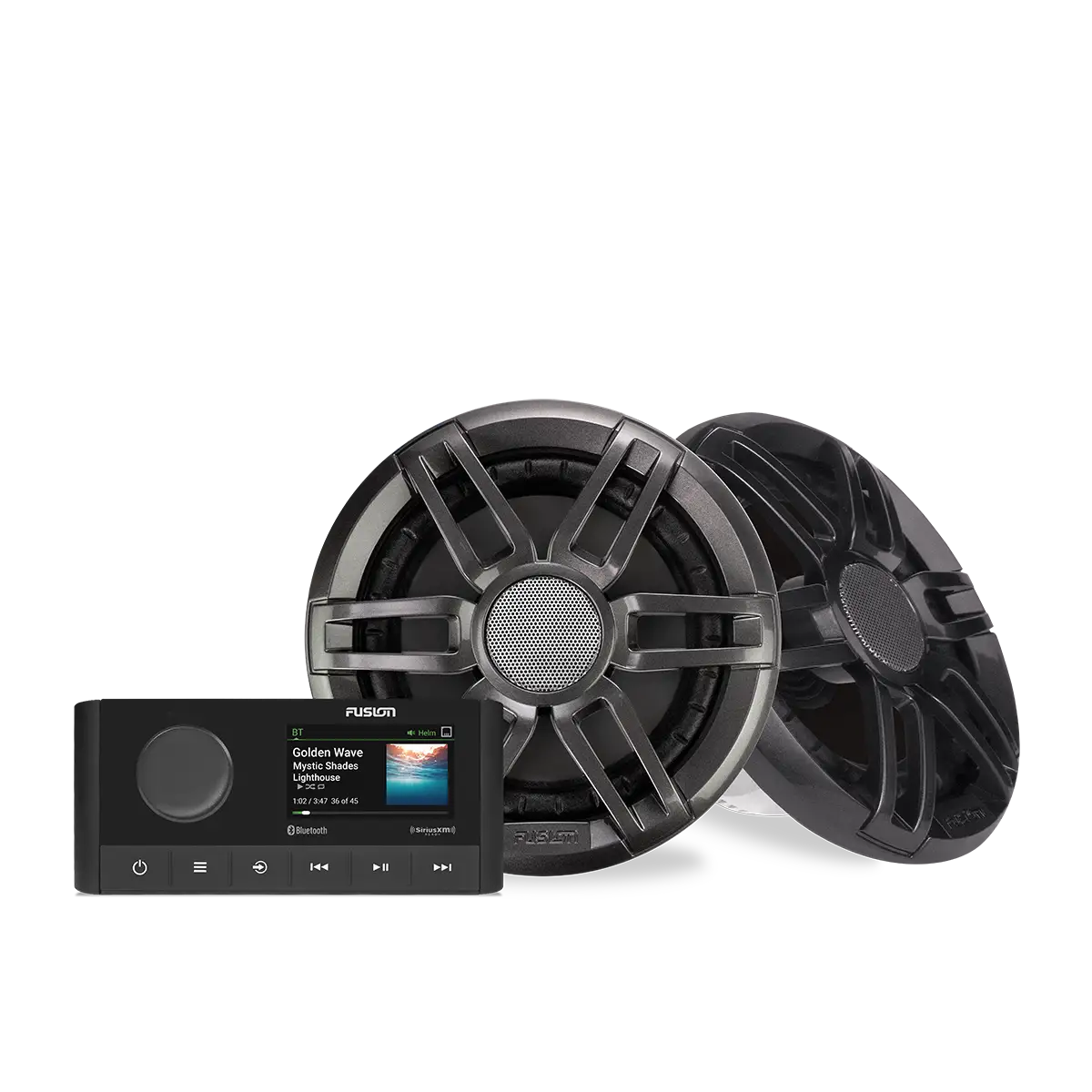

- Includes the Fusion MS-RA210 marine stereo (010-02250-00) and two Fusion speakers; your choice of Classic (010-02250-50) or Sport (010-002250-60).
- Enjoy your music ASAP. Your Fusion marine stereo and speakers come ready to install.
- Easily control music from your compatible Garmin MFD, smart device or Garmin watch.
- Built-in Class D amplifier brings aboard higher efficiency and greater output.
- Multi-Zone™ Technology makes you the captain of two separate audio zones on your boat.
- Continue to grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.
MODERN MARINE STEREO DESIGN
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other marine electronics and MFDs for a tidy and elegant installation.
DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT
Designed and engineered for the harsh marine environment, the Fusion marine stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.
The Fusion speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
Tested to international standards for pressure and water ingress, the Fusion speakers are designed and built for superior quality and robustness and are designed to comply with ISO12216.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The Fusion speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Fusion |
| Version | Fusion MS-RA210 and XS Classic Speaker Kit, Fusion MS-RA210 and XS Sports Speaker Kit |
| Manufacturer Part Number |
Specifications
Fusion MS-RA210 Stereo and Speaker Kit Specs
Stereo Specifications |
|
| Physical dimensions (HxWxD) | 2.68″ x 6.18″ x 4.99″ (68 x 157 x 126.6 mm) |
| Weight | 12.4 oz (350 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| NMEA 2000® LEN | 1 (50 mA) |
| BLUETOOTH® wireless range | Up to 30 ft (10 meters) |
| ANT wireless range | Up to 10 ft (3 meters) |
| Wireless frequencies/protocols | BLUETOOTH 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 5.9″ (150 mm) |
| Display | 2.7″ optically bonded color LCD |
| Built-in amplifier | Class-D (minimum 4 ohm impedance) |
| Peak power | 200 W |
| Rated power output (4 ohm) | Â 26 W rms x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing | yes (with preconfigured DSP profiles) |
| Fusion-Link™ control |  yes (with MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| BLUETOOTH wireless technology | yes |
| ANT wireless technology | yes |
| SiriusXM-ready | yes (requires SiriusXM Connect vehicle tuner) |
| DAB+ ready | yes (requires DAB100A antenna module) |
| NRX remote compatibility | yes |
| Multi-language interface | Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech Danish, Dutch, English, Finnish, French, German, Greek Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish |
| Software updates | via USB |
| Warranty | 1 year |

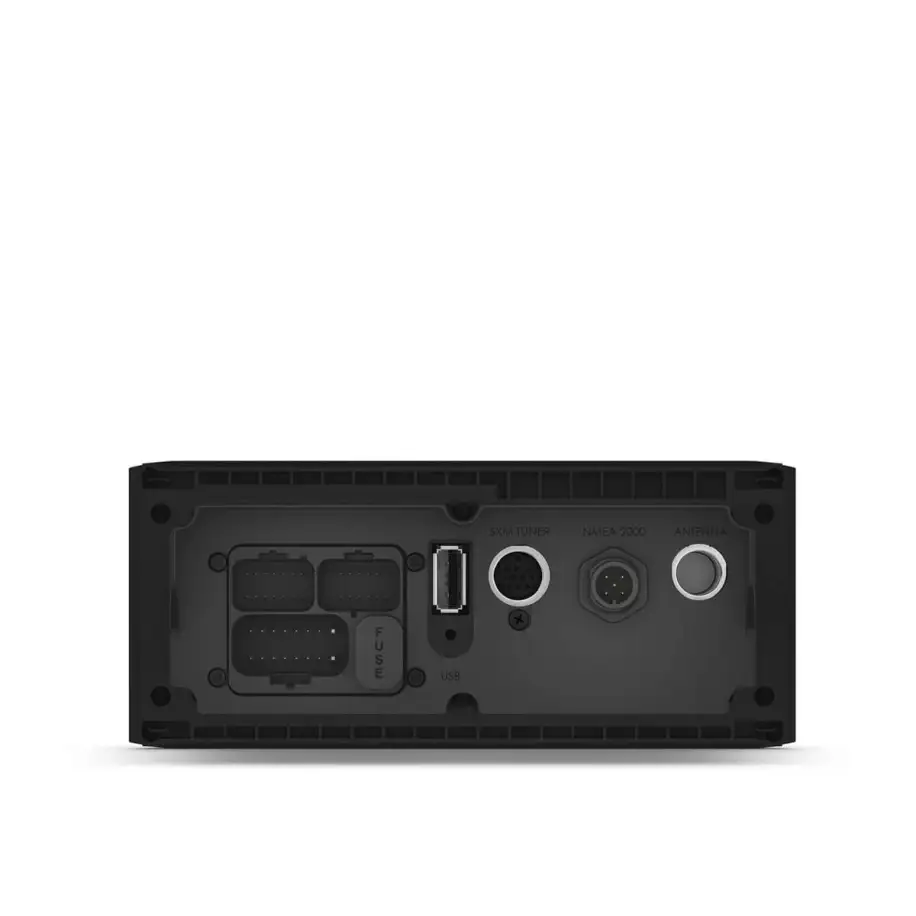

| Sources | AM/FM/BLUETOOTH/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only) |
| Auxiliary input | One RCA input (AUX) |
| NMEA 2000 | 1 port |
| USB 2.0 | 1 port |
| SiriusXM satellite radio | 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 speaker connections (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line out | Zone 1, Zone 2 (1 x L + R, requires external amplification) |
| Subwoofer out | Zone 1, Zone 2 (requires external amplification) |
Speaker Specifications |
|
| Physical dimensions (Diameter x Depth) | XS Classic Speaker: 6.97″ x 3.19″ (177 x 81 mm) XS Sports Speaker: 6.97″ x 3.27″ (177 x 83 mm) |
| Water rating | IP65 |
| Configuration | Coaxial |
| Speaker size | 6.5″ |
| Peak power (watts) | 200 W |
| RMS Power (watts) | 50 W |
| Sensitivity (1 watt/1 meter) | 91 dB |
| Frequency response | 80 Hz-18 kHz |
| Nominal impedance | 4 ohm |
| Recommended amplifier power (RMS) | 20-150 W/Ch |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 1.18″ |
| Cone material | Polypropylene cone with cloth surround |
| Tweeter type | Aluminum dome |
| Compass-safe distance | 122″ (310 cm) |
| Warranty | 3 years |
| Mounting diameter clearance | 5.31″ (135 mm) |
| Mounting depth clearance | 2.64″ (67 mm) |
| Sealed enclosure volume | 0.28 cubic ft (8 L) |
Package Includes

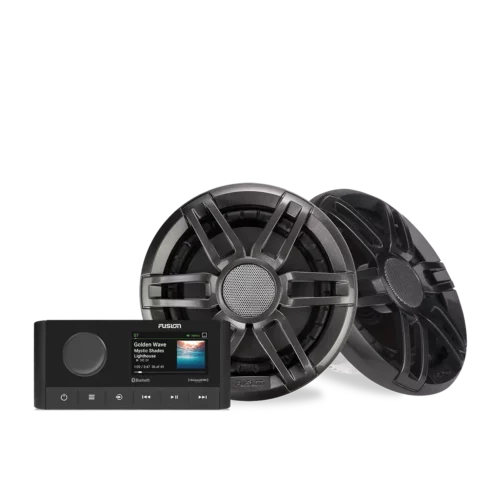

MS-RA210 Stereo and XS Sports Speaker Kit (010-02250-60) Includes:
- MS-RA210 marine stereo (010-02250-00)
- One pair of XS Series sports gray marine speakers
- AM/FM stealth antenna
- 6 ft (2 meter) NMEA 2000® drop cable
- Two 19 ft (6 meter) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
MS-RA210 Stereo and XS Classic Speaker Kit (010-02250-50) Includes:
- MS-RA210 marine stereo (010-02250-00)
- One pair of XS Series classic white marine speakers
- AM/FM stealth antenna
- 6 ft (2 meter) NMEA 2000Â drop cable
- Two 19 ft (6 meter) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
