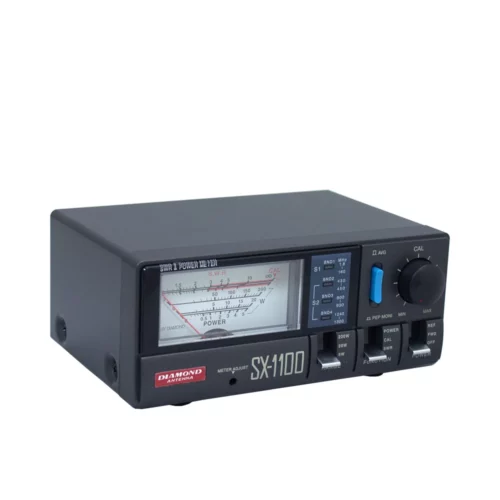

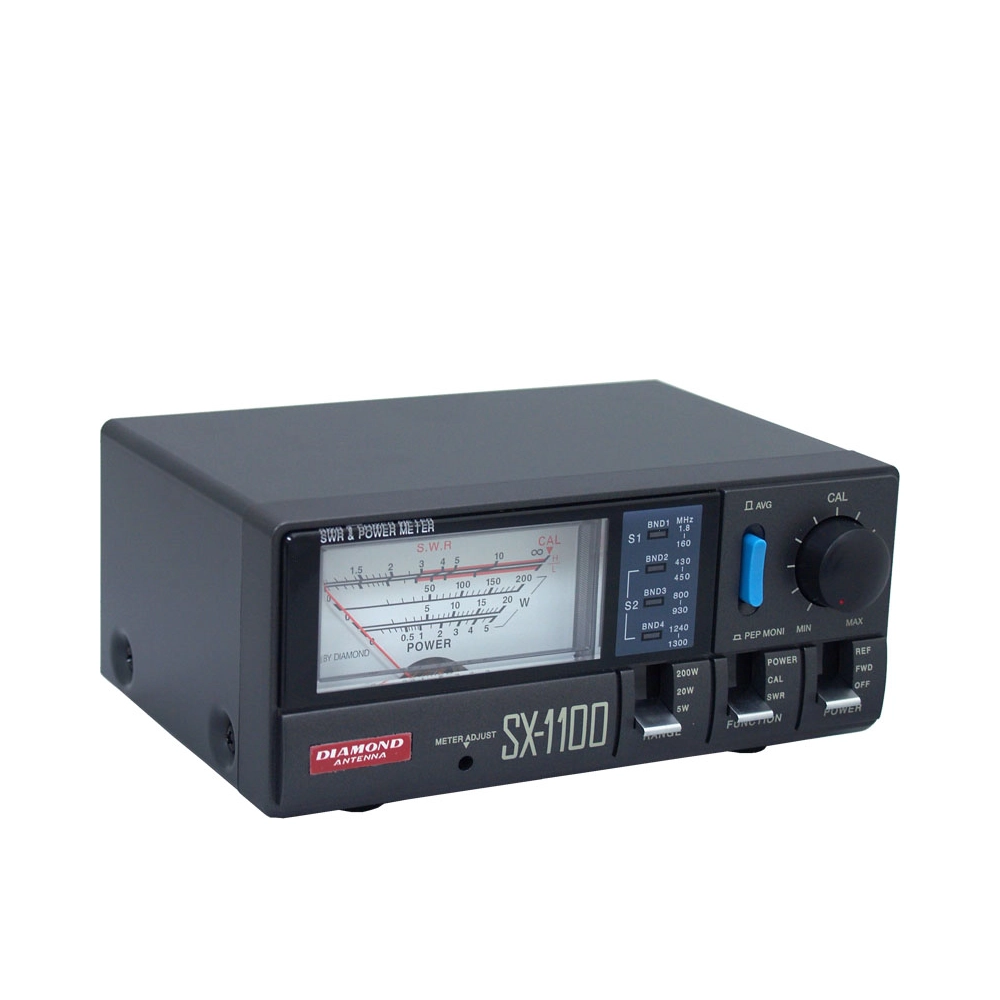

Diamond Antenna SX1100 Quad-Band Power Meter

The SX1100 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations. Two directional couplers with switch and LED indicators for in-line connection of two transceivers.

Special Features of SX1100

• Illuminated meter
• Switchable r.m.s. or peak power
• Measures forward, reflected & VSWR power

Specifications of SX1100

• Frequency:
  • 1.8-160, 430-450
  • 800-930, 1240-1300

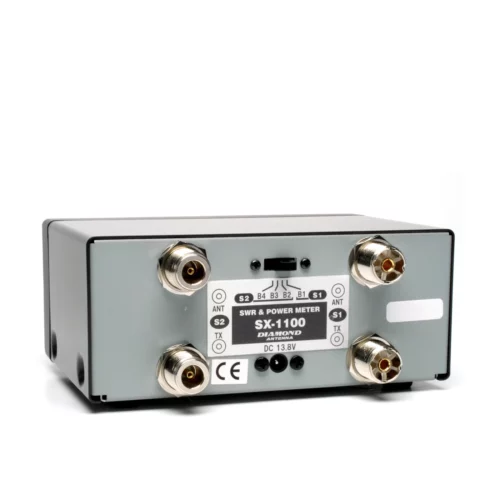

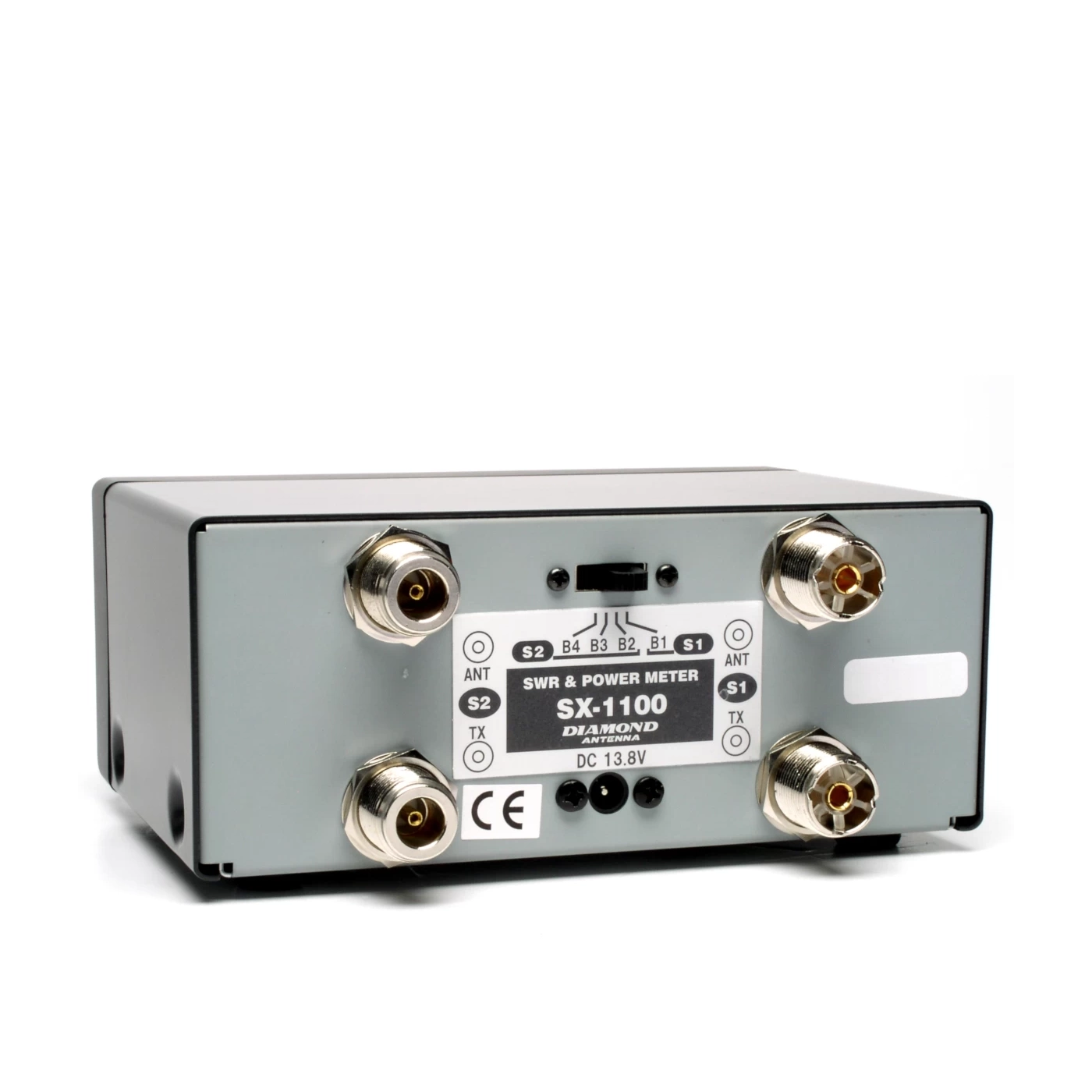

• Connectors:
  • HF-VHF: SO-239
  • UHF: Type-N
• Dimensions: 6″W x 2″H x 4″D
• Weight: 2 lbs

12VDC @ 50mA is required for illuminated display.
