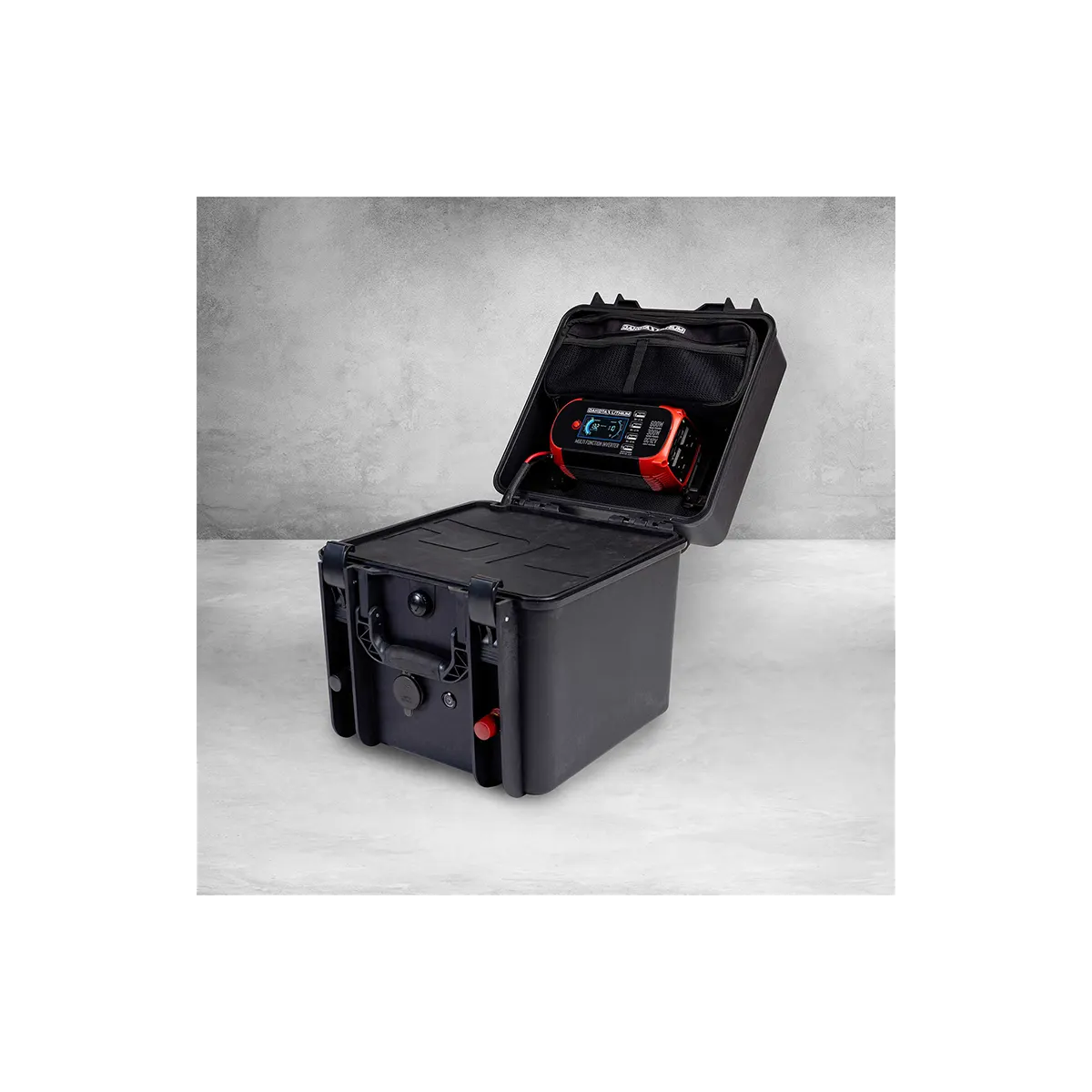

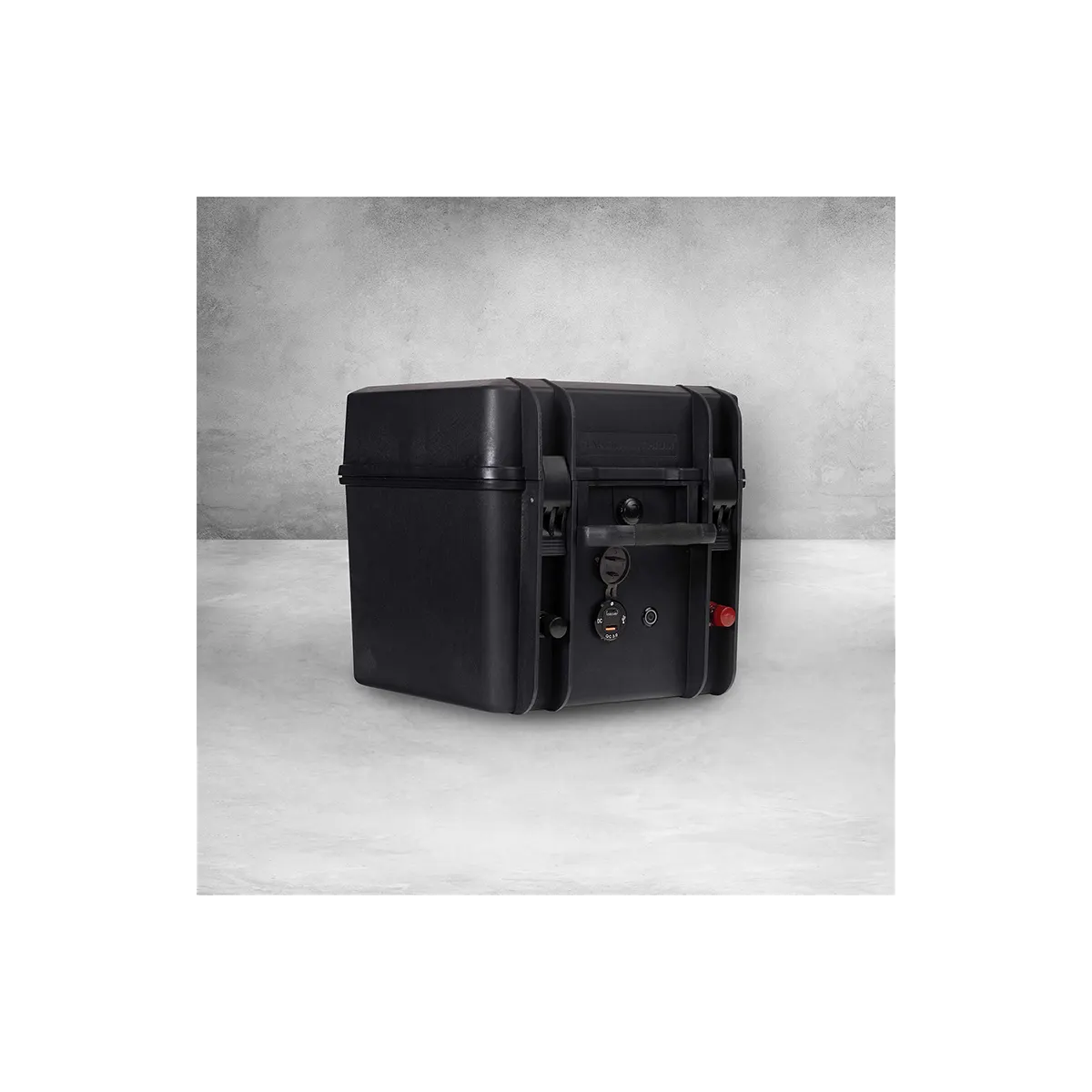

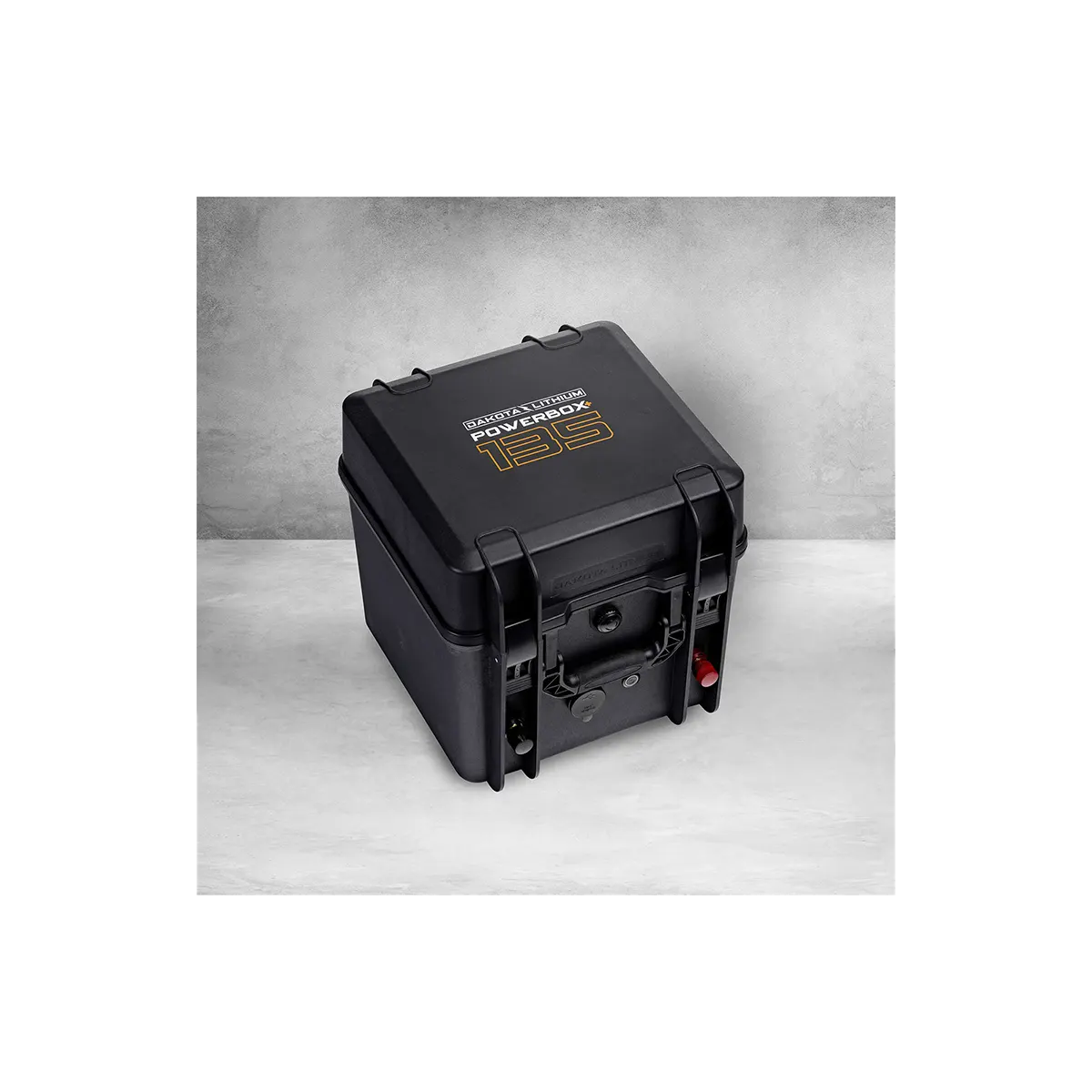

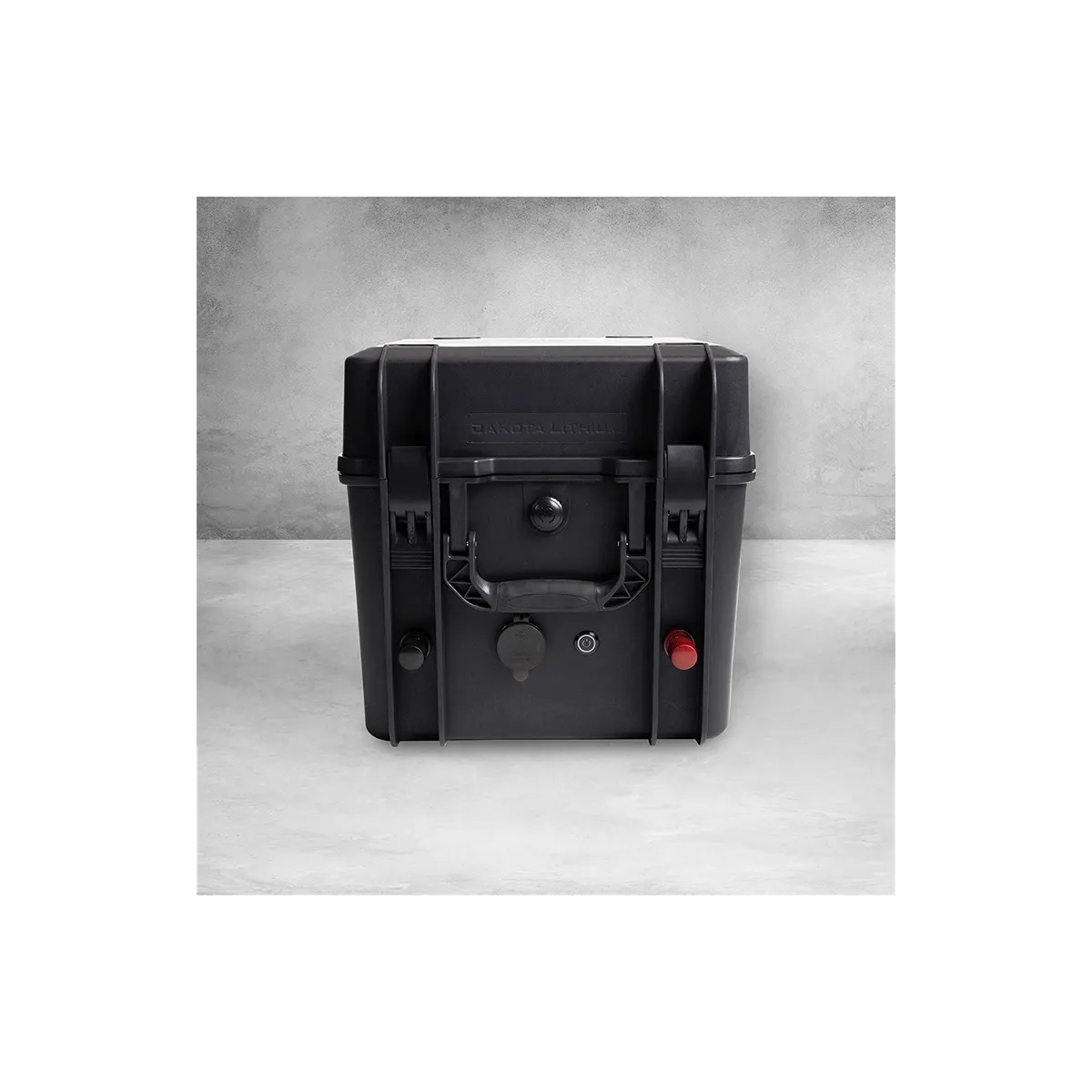

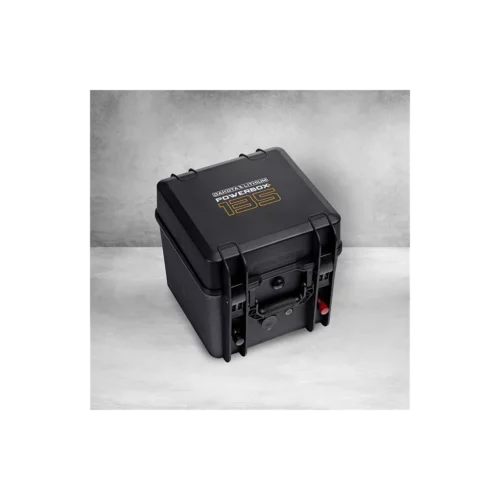

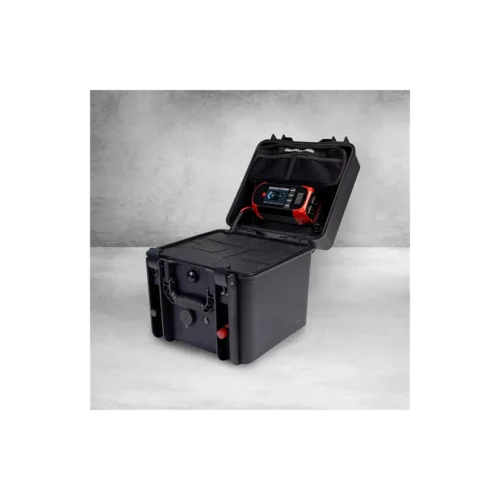

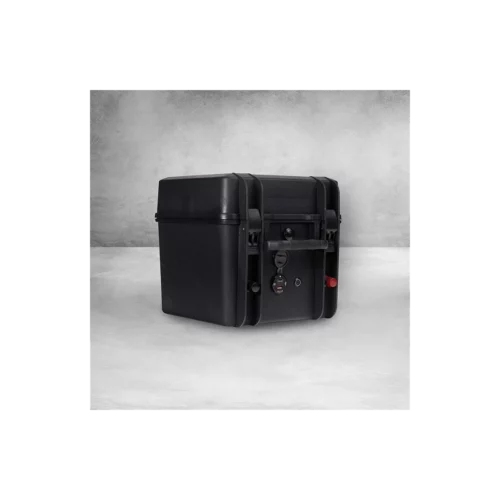

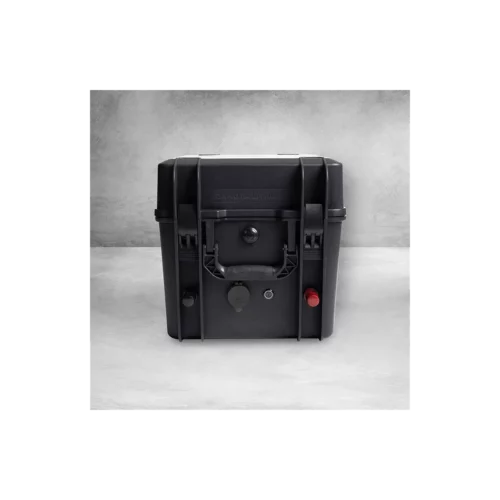

Dakota Lithium Powerbox+ 135 Waterproof Solar Generator

Specifications

Dakota Lithium Powerbox+ 135 Specs

Waterproof Rating

IP67 Waterproof rating means this battery is submersible at a depth of 3 ft of water for 30 hour with no internal moisture.

Buoyancy (how well it floats)

12% of mass above waterline. PB135 is a waterproof battery so light that it floats

Powerbox+ 135 Case

Waterproof  and submersible (IP67) ruggedized Powerbox+ 135 military spec plastic case with shock proof battery cradle

Terminals & Binder Posts

Waterproof automotive binder posts for connecting trolling motors, jumper cables, or other high power applications while maintaining waterproof seal

Voltmeter & External USB plugs

Waterproof voltmeter for monitoring the battery power level & external USB C & USB A for connecting devices while maintaining waterproof seal

DC to AC Inverter Included

300 watt continuous, 600 watt peak DC to AC Inverter w 2 AC wall plugs + 4 USB plugs and smart power use display

Internal Storage & Anti-Static Electronics Tray

Internal ballistic nylon bag with 3 zippered pockets for waterproof storage of personal electronics when box is sealed plus a removable, washable, anti-static silicone electronics tray for keeping personal electronics clean and safe while charging included

Battery Included

Dakota Lithium Plus 12V 135Ah Dual Purpose 1,000 CCA Battery included

Recommended Charger

12V 10A LiFePO4 charger is recommended. Dakota Lithium 12V batteries should be charged at 14.4 volts, higher than AGM or lead acid. Lead acid chargers will work, but will only charge the battery to 80% of capacity.

11 Year Battery Warranty

World beating, best in class, eleven year manufacturer defect warranty.

Storage Capacity

135 Ampere hours (Ah). Dakota Lithium batteries provide consistent power for all 135 Amp hours. DL LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.

Voltage

12.8 Volts (V)

Engine Starting Power

Lithium battery equivalent to 1,000 Cold Cranking Amps (CCA) of lead acid battery engine starting power. Suitable for automotive applications.

Size

11.6”x12.1”x 12.8” (295 x307x 325mm)

Energy

1,620 Watt-hours (Wh)

Weight

37.7 lbs (17.1 Kg). So light that it floats. 1/4-1/2 the weight of a normal car battery.

Lifecycles (battery lifespan)

Up to 80% capacity for 2,000 cycles in recommended conditions. The typical SLA has 500 cycles. Dakota Lithium batteries last so long that the price per use is a fraction of traditional batteries.

Operating Temperature

Ideal for rugged & harsh environments. Much better than SLA or other lithium batteries. -20°F min, +150°F max optimal operating temps (battery performs well down to -20°F). Internal even-heat technology allows for charging below 32°F. BMS high temp cut off at 167°F / 75°C.

Discharge

100A max continuous discharge, 750A max 2 second pulse, 650A max 5 sec pulse. The flat discharge voltage curve provides a 75% bigger capacity than a 60Ah SLA battery.

Ultra-Fast Charging

DL rapid charge technology allows for charging speeds of 60 minutes (135 Amps). Recommend for longest life 60A or less (1C), Max continuous 80A (1.5C). 14.4V recommended, 15V max, BMS protection from over charging will cut off at 15V. Included is a free 12V 10 Amp (A) LiFePO4 compatible charger that charges at the recommended 14.4 Volts..

Includes active BMS protection

Contains a high discharge capable circuit that handles cell balancing, low voltage cutoff (10V) preventing over discharge, high voltage cutoff (15V) preventing over charging, short circuit protection and temperature protection for increased performance and longer life.

Internal Heating for Winter Use

Increases performance in extreme cold. When charging the battery in temperatures below 0°C/32°F DL’s internal heating element will warm the cells to 0°C/32°F. This increases the lifespan, performance, and efficiency of the battery.

Cold temperature charging protection

Contains a smart BMS temperature cutoff that prevents charging when cells are below 0°C/32°F and protects the battery.

Certifications

All DL batteries are UN38 certified. Dakota Lithium’s cells are UL1642 certified and have been tested per IEC62133 standards. Meets all US & International regulations for air, ground, train, & marine transport.

Dual Purpose Use

Multi-purpose use as a deep cycle battery and/or as a starter battery for starting gasoline engines.
