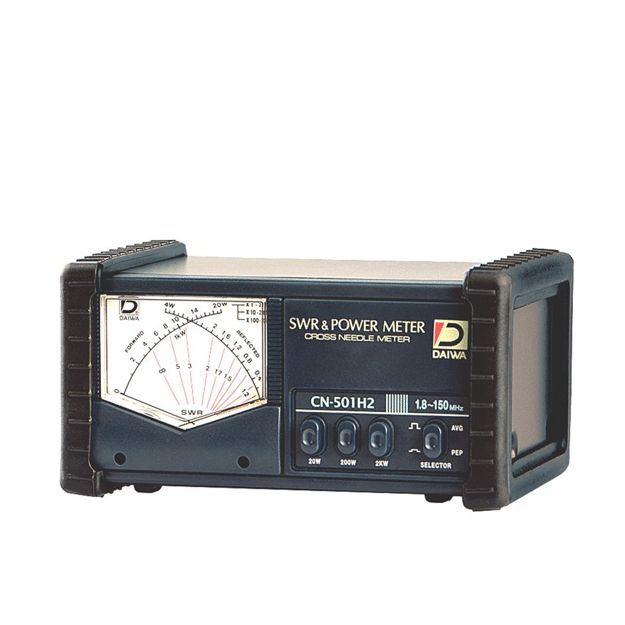

Daiwa CN-501H2 Cross-Needle SWR/Power Meter

The CN-501 Series is high quality Instrument with unique features which make tedious measurement of SWR and Power during antenna tests, matching and tuning of transmitters a very easy task.  SWR and Power indicators are installed in one meter unit. One scale will be indicated at the crossing point of the 2 needles. This unique feature makes it possible to read all of Forward Power, Reflected Power and SWR at the same time.

Daiwa CN-501H2 HF/VHF Bench Meter Specs & Features

• HF power handling: 2,000 watts maximum
• Connectors: UHF (SO-239) .
• Frequency: 1.8-150MHz
• Forward Power Ranges: 20/200/2.0 kW
• Power Rating: 2.0 kW (1.8-60MHz) 1 kW (144MHz)
• Peak reading for SSB operation (external DC power required)
• Accuracy: plus / minus 10 percent (at full scale)
• SWR Detection Sensitivity: 4W minimum
• Input / Output Impedance: 50 OHM

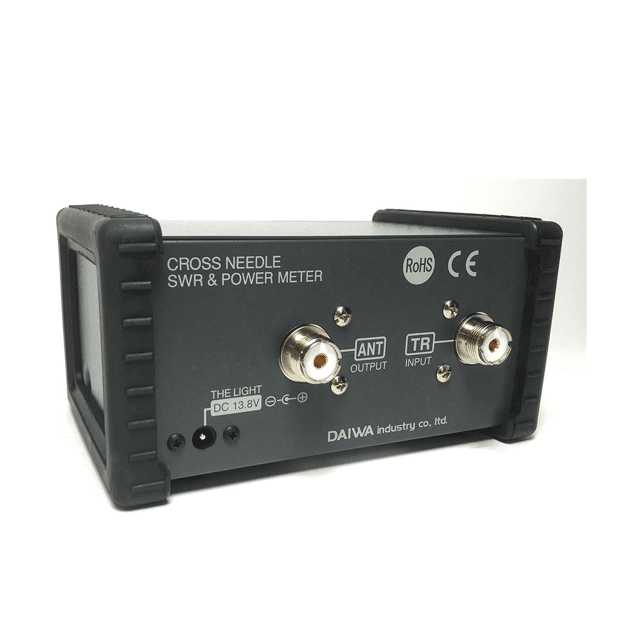

• Input / Output Connectors: SO-239
• Dimensions 5in x 3in x 4in
• Weight: 1lb. 8 oz.
• Back-lit meters with external 12-14 volt supply, 2.5mm DC input jack (also required for peak function)
