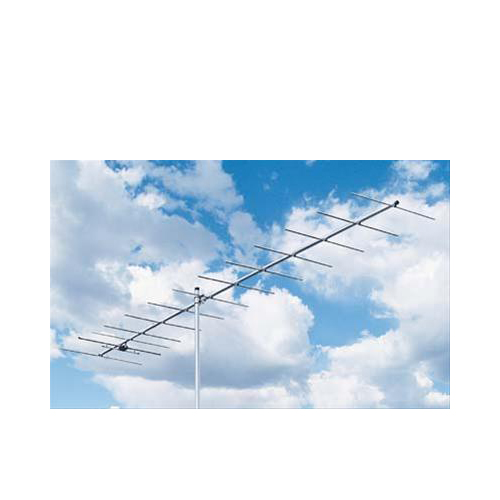

Cushcraft A13B2 3 Element Wideband Boom Antenna

MPN: A13B2

$583.00

Please note: Due to the size of this antenna, it can only ship via Purolator and extra shipping charges will apply.

SKU: 13853 Category:

2-M, YAGI, 13 ELE, 18.5DBI, 1.5KW

A13B2 will be your choice for high performance across the entire 2 meter band. New and experienced hams will enjoy 15.8 dBi gain on FM, packet, CW, or sideband across the 4 MHz operating range.

The A13B2 is easily mounted vertically or horizontally for maximum performance on your favorite mode. Its optimum boom length makes it a popular antenna that fits just about anywhere. The new UltraMatch balanced feed on the A13B2 provides a 50 Ohm match via a standard SO-239 UHF female connector.

Weight 6.7 lbs
Dimensions 78 × 3 × 5 in
Brand

Cushcraft

Specification

Cushcraft A13B2 Specifications
Frequency, MHz:
144-148
No. Elements:
13
Forward Gain, dBi:
15.8
Front to Back Radio, dB:
26
SWR 1.2:1 Typical
2:1 Bandwidth, MHz
>4
Power Rating, Watts PEP:
1500
3 dB Beamwidth, Degees
E Plane
H Plane
2 x 18
2 x 19
Side Lobe Atten., dB, E Plane:
>60
Boom Length, ft (m):
15 (4.57)
Electrical Wavelength:
2.2
Longest Element, in (cm):
39.75 (101)
Turning Radius, ft (m):
8.9 (2.7)
Mast Size Range, in (cm):
1.5 – 2 (3.8 – 5.1)
Wind Load, ft sq (m sq)
1.8 (.17)
Weight, lb (kg)
6.7 (0.31)

Product Guides & Documentation

Cushcraft A13B2 Assmbly and Installation Instructions
