Comet CF-416 Series Duplexers
Price range: $85.00 through $91.00

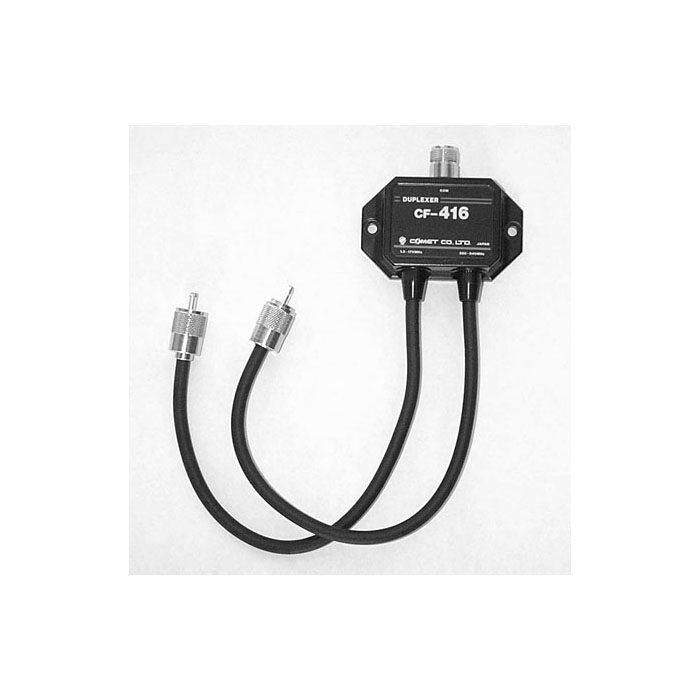

Comet CF-416 Series Duplexer/Splitter/Combiner
Out of Stock (On Order)
- Band Pass:Low Pass:1.3-170MHz
- High Pass: 350-540MHz
- Ins. Loss: 0.15dB 800w0.25dB 500w
- Max Power: PEP 800WPEP 500W<
- Isolation: 60dB minumum

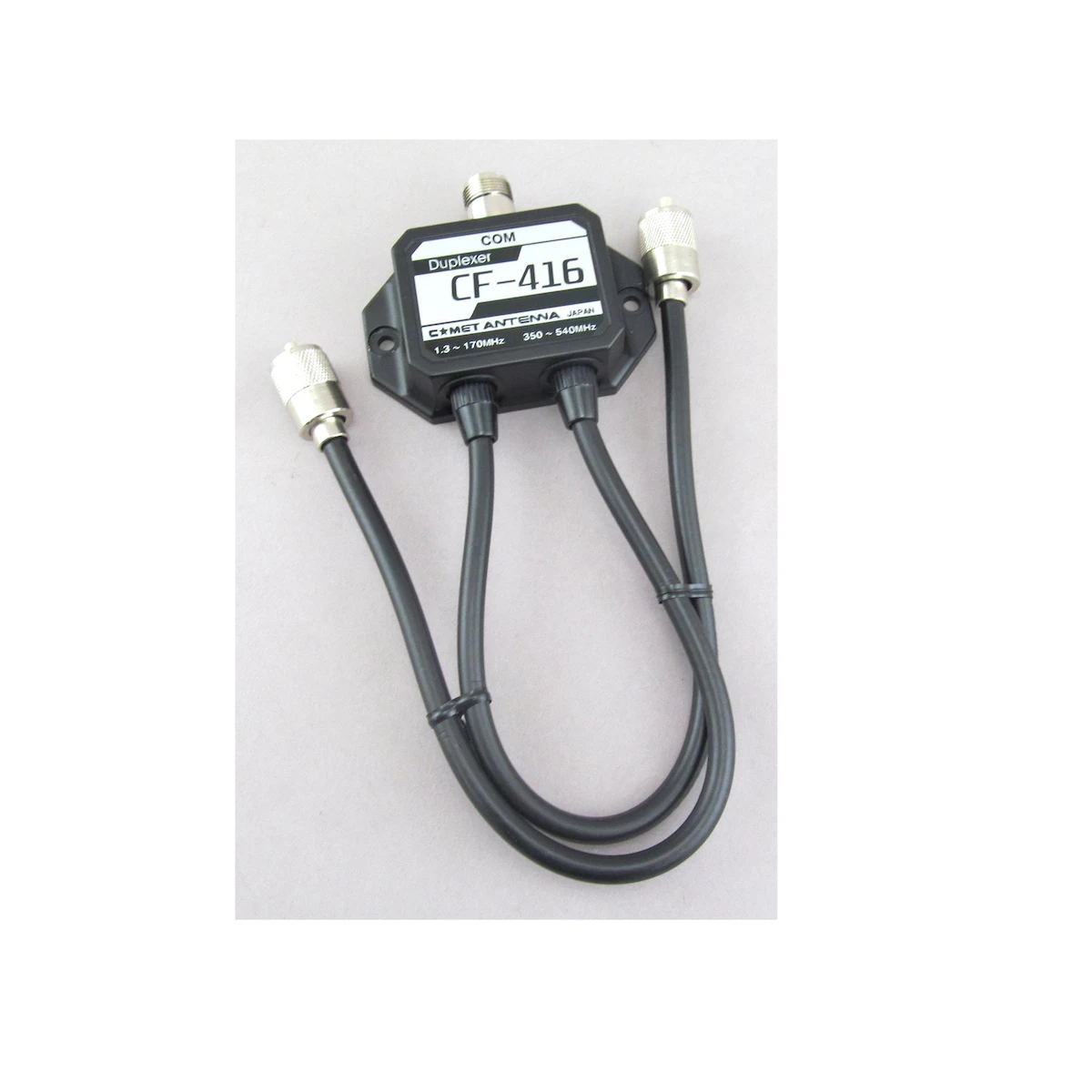

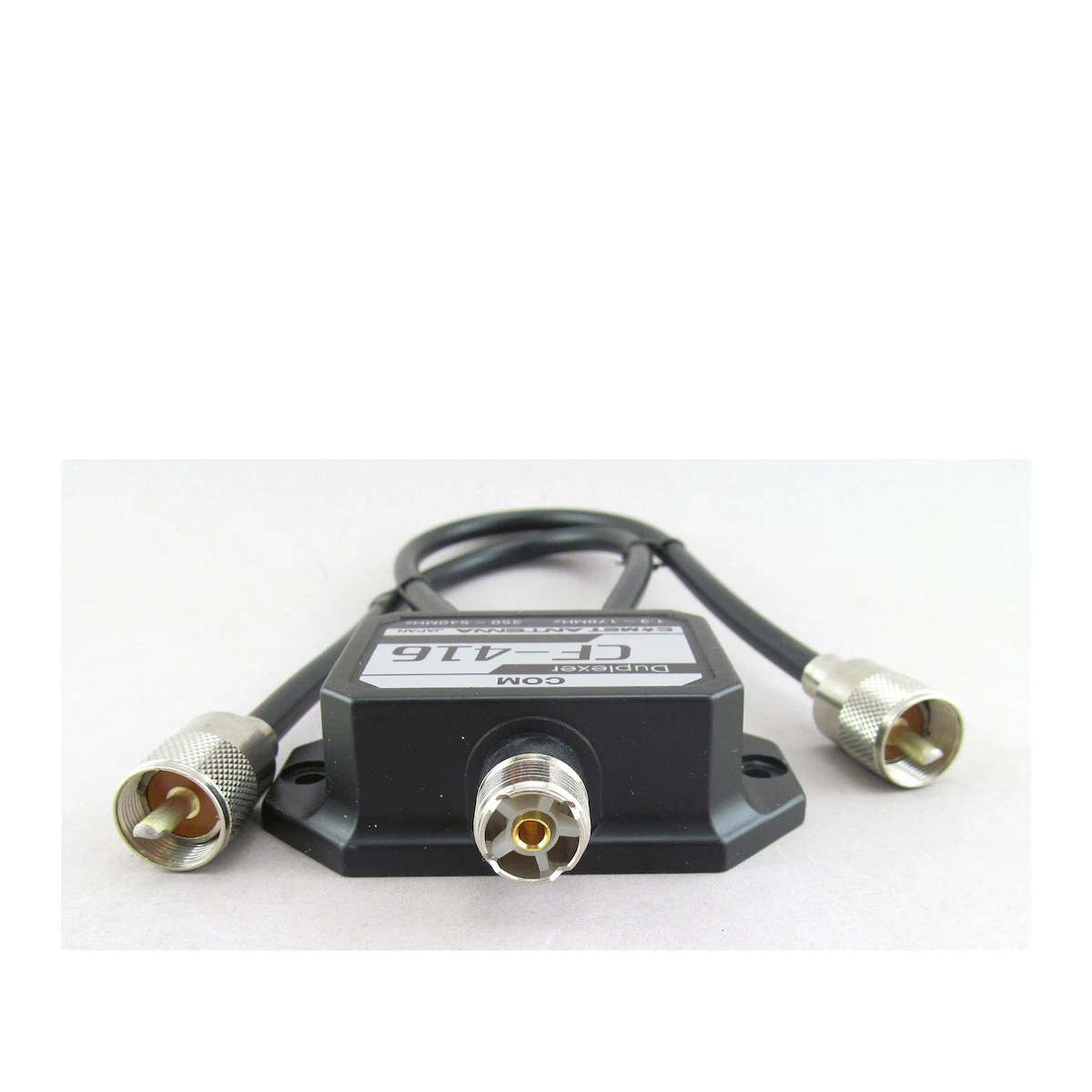

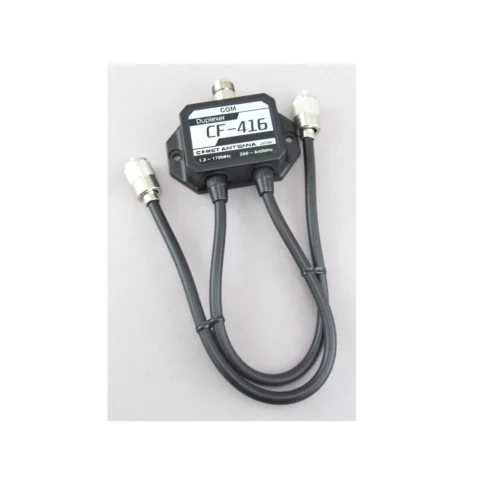

CF-416A Connectors:
- Common: SO-239
- Low pass: PL-259
- High pass: PL-259

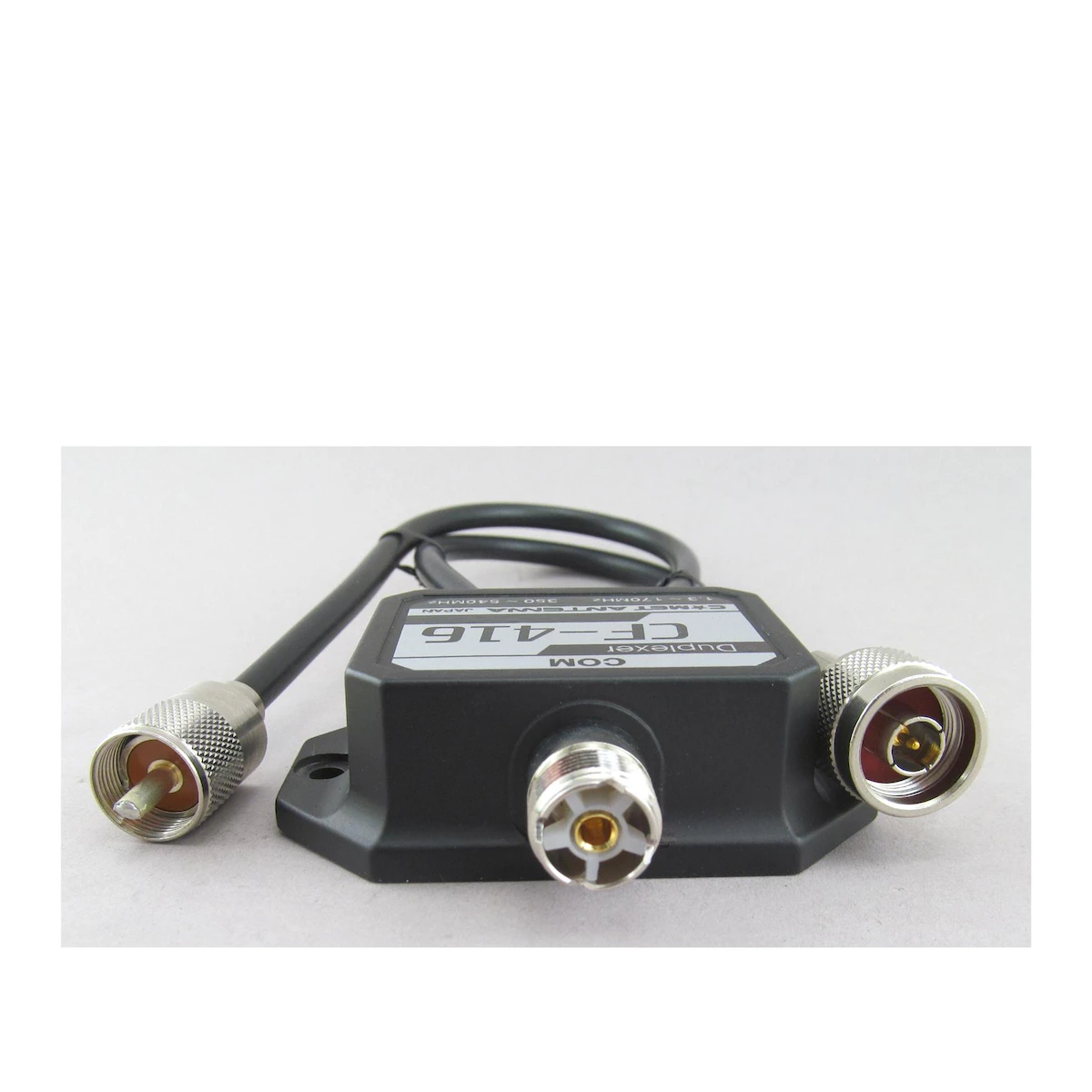

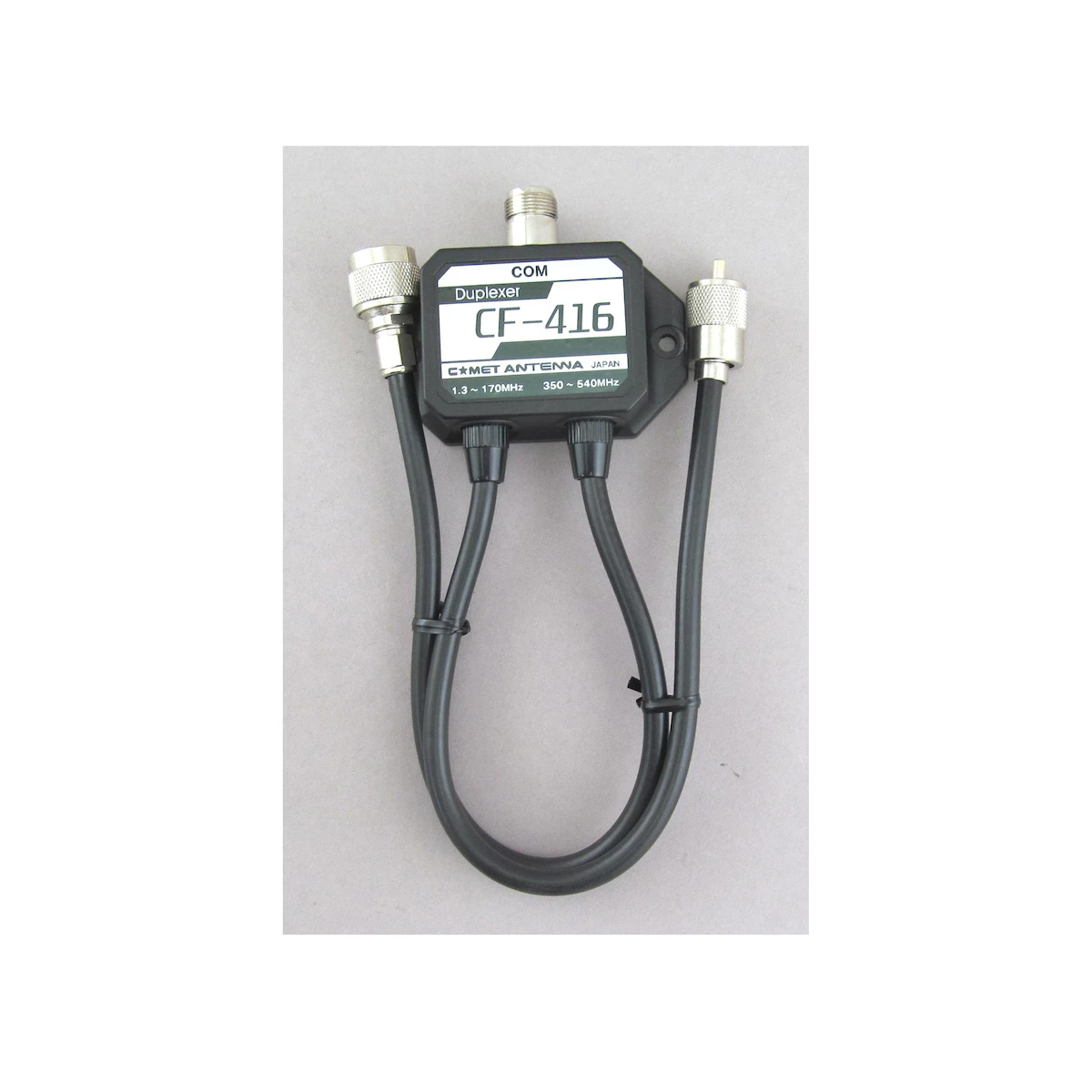

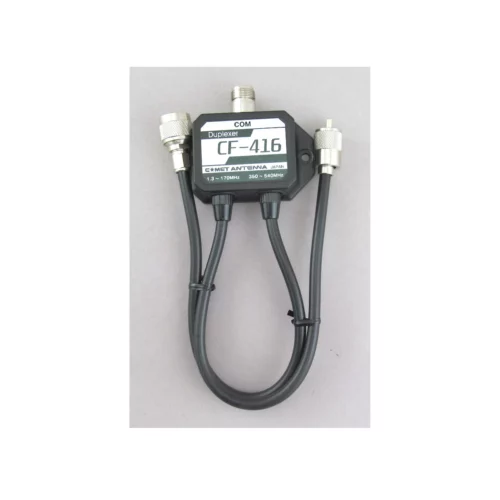

CF-416B Connectors:
- Common: SO-239
- Low Pass: PL-259
- High Pass:Â N-Male
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Comet |
| Duplexer Version | Comet CF-416A, Comet CF-416B |
