Chameleon Antenna: CHA MPAS 2.0
Price range: $905.00 through $945.00
The MPAS 2.0 is ideal for military, Non-Governmental Organizations (NGO), Amateur Radio Emergency Service (ARES), and hams who demand the best, most flexible, and rugged portable antenna system when in the field.
In stock
- Description
- Additional information
- Product Video
- Package Includes
- Product Guides & Documentation
- Accessories
IT’S IMPORTANT TO WATERPROOF THE CHA MIL EXT 2.0 BEFORE PERMANENT INSTALLATION
This is the CHA MPAS 2.0 – the most popular Modular Portable Antenna System in the WORLD!
The Modular Portable Antenna System (MPAS 2.0) is a concept allowing the radio operator to configure and rapidly deploy a man-packable HF/VHF-LO antenna system in a variety of configurations to meet operational requirement. Some of the possible deployment configurations:
- Vertical Whip configuration using one or both whips
- Horizontal Whip configuration for NVIS operations
- Sloper wire configuration
- Inverted “V” wire configuration
- Inverted “L” wire configuration
- NVIS wire configuration
- Balcony Rail mount using one or both whips
- Vehicle Mounted (Stationary use only)
- Man-Pack Vertical Whip configuration
MPAS 2.0 Specifications:
- Frequency: 6M – 160M/1.8-54.0 MHz (with external tuner)
- Power:
- HYBRID MICRO: 100w SSB Phone, 25W CW, 25W High Duty Cycle Digital Modes
- HYBRID MINI: 500w SSB Phone, 100W CW, 50W High Duty Cycle Digital Modes
- Whip Height: 18’ 2”
- Wire Length: 73 ft
- Weight: 8lbs12 oz
- Collapsed Length: 29”
- Mounting Configuration: 3/8-24 Thread
NOTE: When collapsing the CHA MIL 2.0, begin with the top section to extend the life of the internal braided cord. Application of an antioxidant to the extension joints will help prevent corrosion.
| Weight | 12 lbs |
|---|---|
| Dimensions | 30 × 12 × 6 in |
| Hybrid Option | CHA MPAS 2.0 Mini, CHA MPAS 2.0 Micro |
Product Video
Package Includes

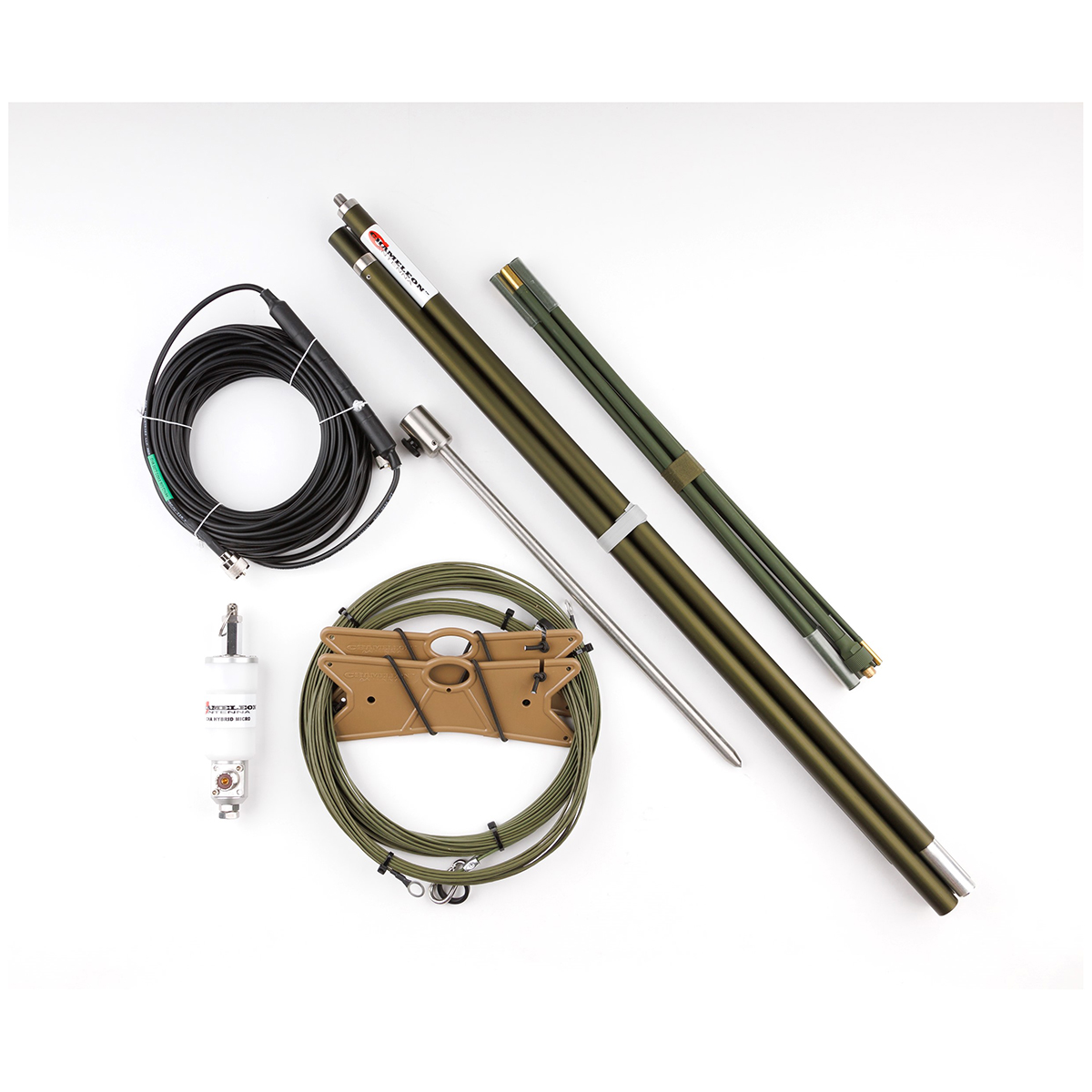

The MPAS 2.0 MICRO antenna system consists of:
- 1 X CHA HYBRID-MICRO
- 1 X 73’ Wire Copper Clad KEVLAR PTFE (Teflon) (-70°C to 150°C) wire
- 1 X 25’ Wire Copper Clad KEVLAR PTFE (Teflon) (-70°C to 150°C) wire
- 1 X CHA MIL 2.0 (113″ Long)
- 1 X CHA MIL EXT 2.0 (105.5″ Long)
- 1 X CHA SPIKE
- 1 X CHA 50’ Coax with RFI Choke

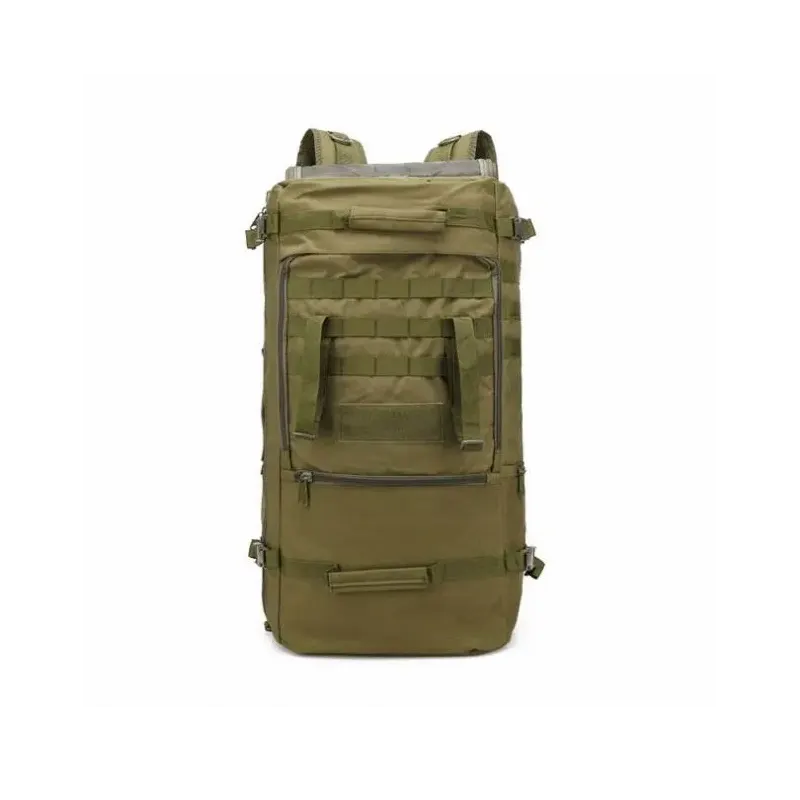

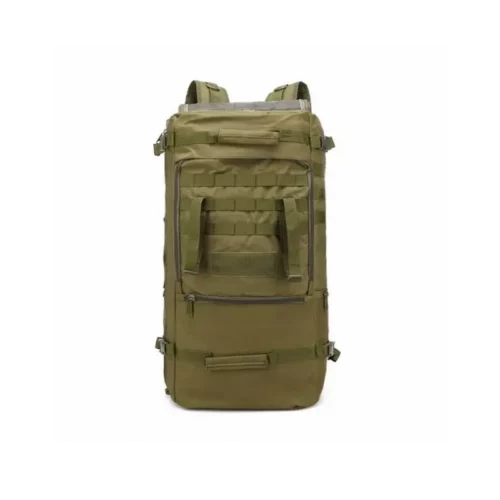

- 1 X CHA MILITARY BACKPACK ***** BAG MAY VARY IN SHAPE AND COLOR *****
- 2 X 3/8-24 SS Nuts
- Stainless Steel Hardware
The MPAS 2.0 MINI antenna system consists of:
- 1 X CHA HYBRID-MINI
- 1 X 73’ Wire Copper Clad KEVLAR PTFE (Teflon) (-70°C to 150°C) wire
- 1 X 25’ Wire Copper Clad KEVLAR PTFE (Teflon) (-70°C to 150°C) wire
- 1 X CHA MIL 2.0 (113″ Long)
- 1 X CHA MIL EXT 2.0 (105.5″ Long)
- 1 X CHA SPIKE
- 1 X CHA 50’ Coax with RFI Choke
- 1 X CHA MILITARY BACKPACK ***** BAG MAY VARY IN SHAPE AND COLOR *****
- 2 X 3/8-24 SS Nuts
- Stainless Steel Hardware
