Chameleon Antenna: CHA HYBRID-MICRO
Price range: $315.00 through $435.00
The CHA HYBRID-MICRO is a lightweight highly portable broadband antenna system designed to offer maximum portability and performance.
In stock
The CHA HYBRID-MICRO is a lightweight highly portable broadband antenna system designed to offer maximum portability and performance. The antenna weights about 1 lb.
The antenna will operate at all frequencies in the 1.8-54 MHz band without any adjustment with most modern external antenna tuners. No masts or guying are required.
The antenna will work successfully supported by trees, masts, the tops of vehicles or any convenient object or structure. The antenna works most effectively when elevated at a reasonable height.
CHA HYBRID-MICRO Specifications:
- Frequency: 6M – 160M
- Power: 100 SSB or 50W CW
- Mounting Configuration: 3/8-24 Thread

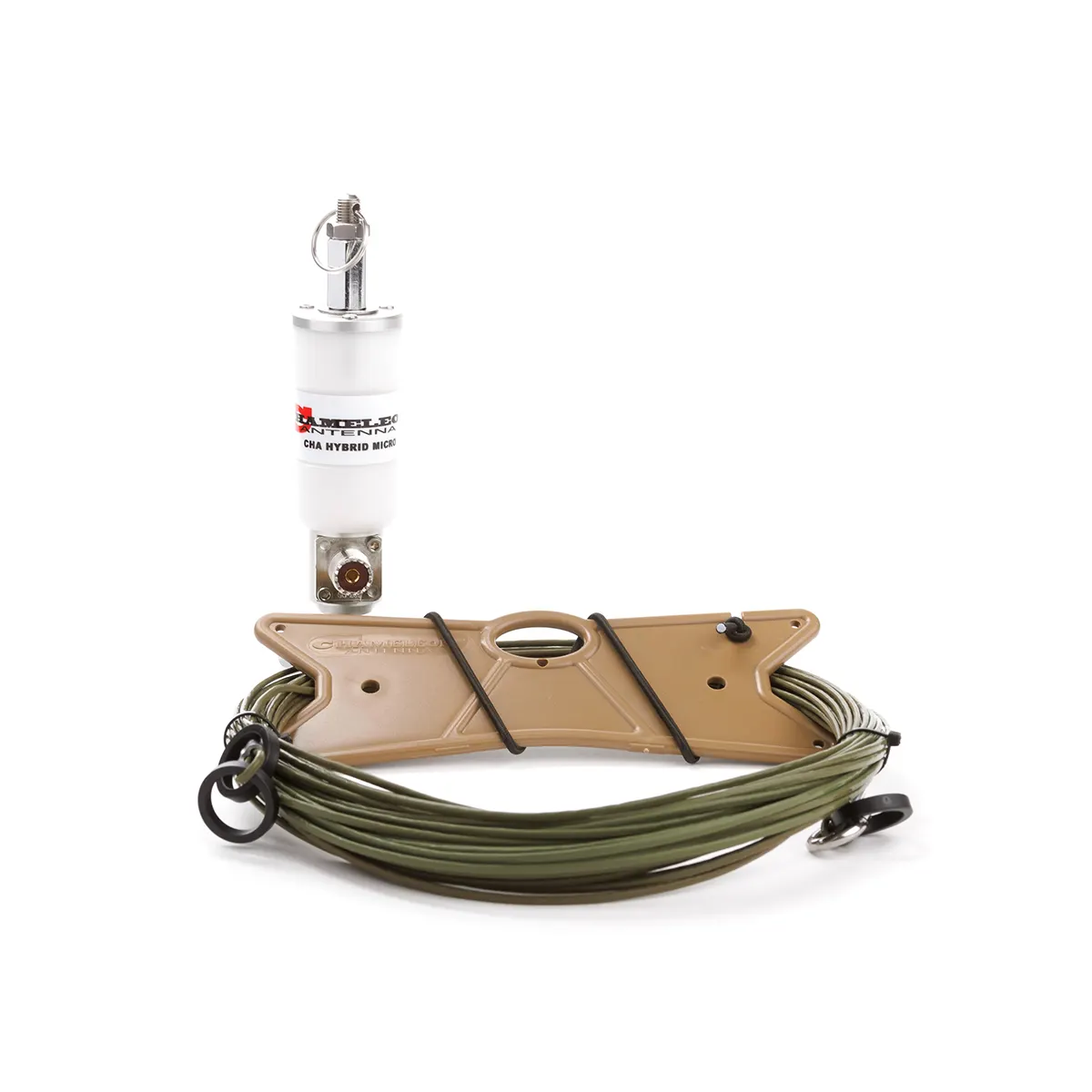

The antenna system consists of:
- 1 X HYBRID-MICRO Matching Unit Base
- 1 X 60′ Copper Clad KEVLAR PTFE (Teflon) (-70°C to 150°C) wire
- Stainless Steel Hardware
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Version | CHA-HYBRID-MICRO – Antenna System, CHA-HYBRID-MICRO-COIL – Coil ONLY |
