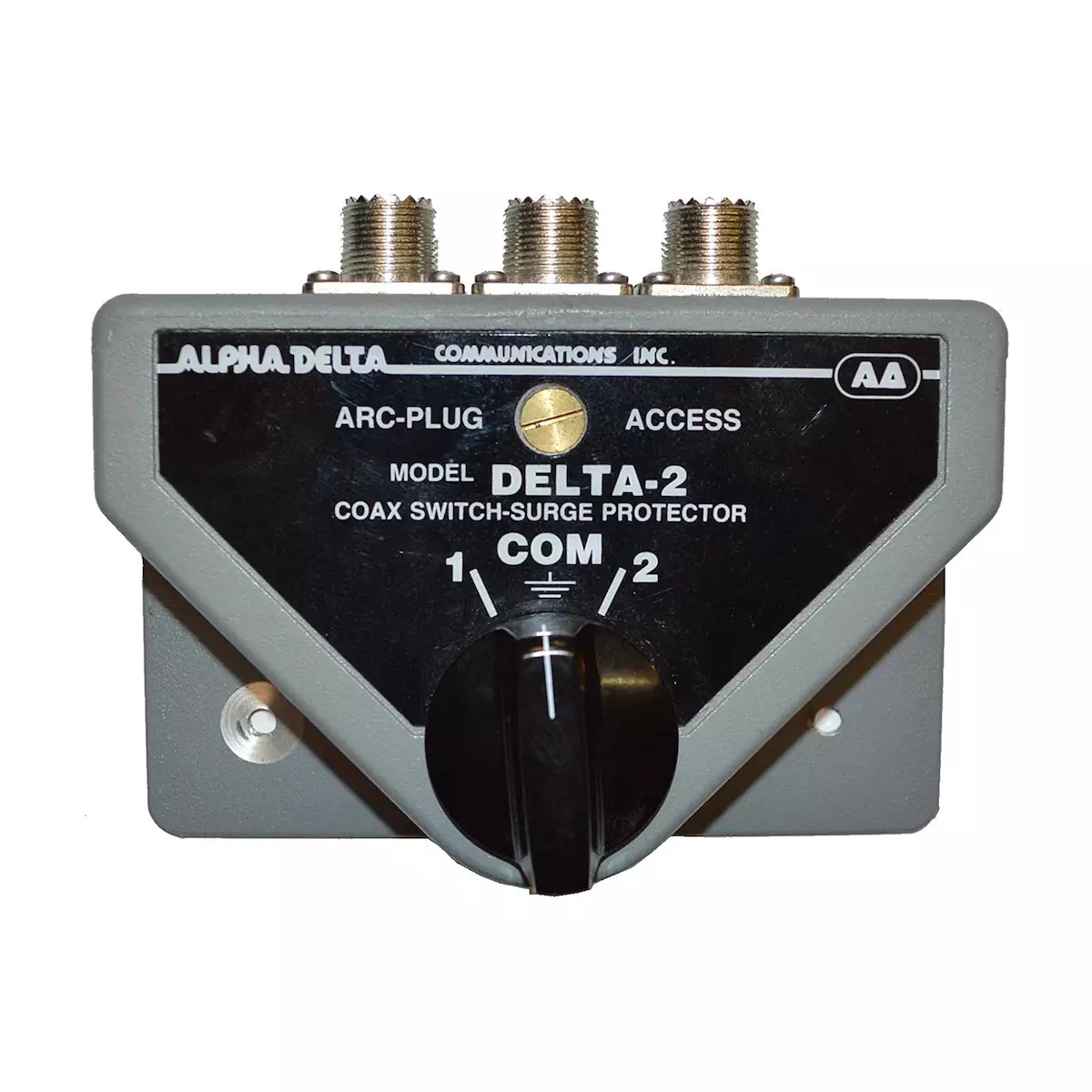

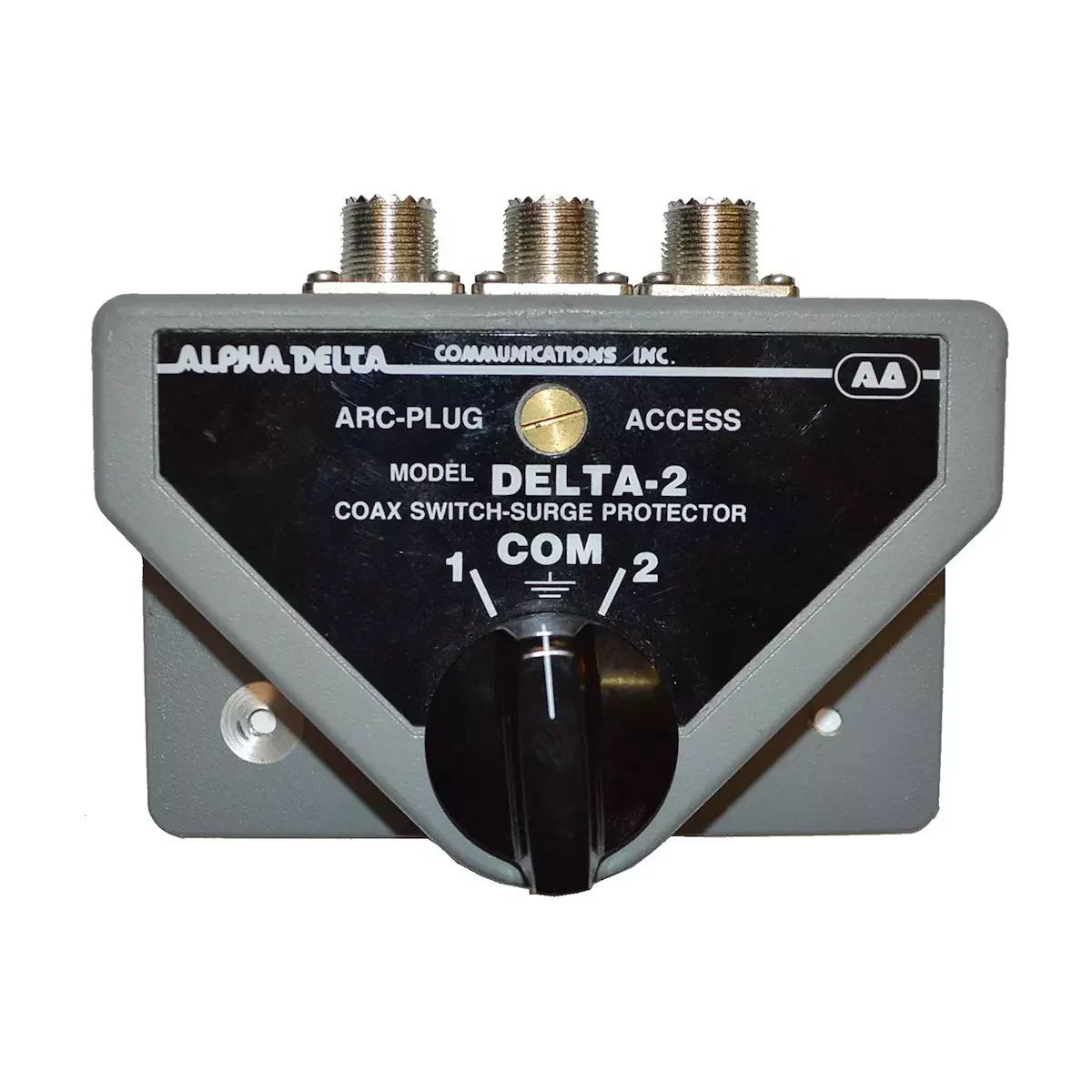

Alpha Delta Coax Switch – DELTA-2

Antenna Switch Positions: 2-port

Antenna Switch Connector Type: UHF female, SO-239

Switch Impedance: 50 ohms

Switch Insertion Loss: Less than 0.10 dB

Switch Port Isolation (Crosstalk): More than 50 dB

All Ports Grounded Position: Yes

Power Rating (0 to 30 MHz): 1,500W PEP/1,500 CW

Notes: Rated through 500 MHz. 0.10 dB loss to 30 MHz, less than 0.5 dB through 450 MHz.

Alpha Delta Coax Switches have a precision-machined switch shaft and quadrant mechanism for more accurate and stable switching performance.

These switches have a low-loss micro-strip cavity design, positive detent switching, master antenna ground function, a front panel removable arc-plug surge protection module, and excellent HF through UHF performance. The unselected antenna ports are grounded for protection and maximum isolation.

Alpha Delta Coax Switches are used worldwide in government, military, and commercial applications and are manufactured in Alpha Delta’s ISO-9001 certified production facility in the USA. They come available with either a 2-port or 4-port position, and both have the option of either the UHF female (SO-239) or N female connector.

Note: When placed in the “COM” position, all switch positions are grounded. When a port is selected, that port is ungrounded while all other ports remain grounded.

Additional features include:

• Higher strength, lower resistance sliver bearing solder
• Durable abrasion resistance with powder-coated finish
• Brass arc-plug housing for improved gas tube positioning
