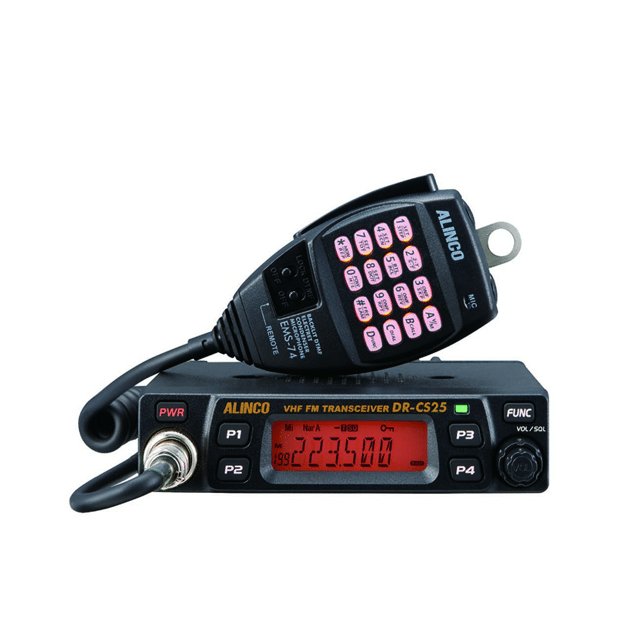

Alinco DR-CS25 220 MHz Mobile Transceiver

MPN: DR-CS25

$390.00

Out of Stock (On Order)

Get notified when this product is back in stock

SKU: ALI-DRCS25 Categories: , Brand:

Alinco DR-CS25 Mobile 50 Watt 220 Mhz Transceiver

The Alinco’s latest 220MHz DR-CS25 in its ultra compact package is loaded with high technology features.The easy and smooth operation of DR-CS25 is inherited from popular Alinco radio equipment series such as a large back-lit display & microphone, excellent transmit/receive audio, 200ch memories, various scanning and more! Affordable, easy-to-use DR-CS25 will offer everything you may expect from a 222MHz mobile transceiver.

  • Output power selectable 50W / 25W / 10W
  • PC-programmable 200 channel
  • Alphanumeric name tags
  • Wide variety of selective calling features*
    * Built-In, 2-Tone/5-Tone, 51 CTCSS, 1024 DCS, 4 Tone-burst tones and DTMF / ANI decode
  • Large, bright LCD and easy-to-operate backlit microphone keys
  • Multi-function microphone enables direct frequency entry & remote control
  • Various scan modes, Key lock, Wide / Narrow operations and more!
  • Clean, clear Alinco audio
Brand

Alinco
Manufacturer Part Number DR-CS25

Specifications

Alinco DR-CS25 Specs

General
Frequency Range TX:222.000-224.9975MHz
RX:220.000-259.9975MHz
Number of Channels 200 channels
Channel Spacing 25KHz (Wide mode)
20KHz (Middle mode)
12.SKHz (Narrow mode)
Channel step 2.5KHz,5KHz, 6.25KHz, 8.33KHz, 1 0KHz, 12.SKHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz
Operating Voltage 13.8V DC ±15%
Squelch Carrier/ CTCSS / DCS / 5Tone / 2Tone / DT MF
Frequency Stability ±2.5ppm
Dimensions 145 (W) x 35 (H) x 180 (D) mm approx.
5.709(W) x1.378(H)x 7.087(D) in approx.
Weight Weight approx. 0.910 kg/ 32.1 ounce
Operating Temperature -20°C ~ +60ºC

Package Includes

In the Box:

  • DR-CS25 Transceiver
  • EMS-74 DTMF Microphone
  • ADUA38 DC Power Cable
  • Mounting Bracket with screw kit
  • Instruction manual

Product Guides & Documentation
