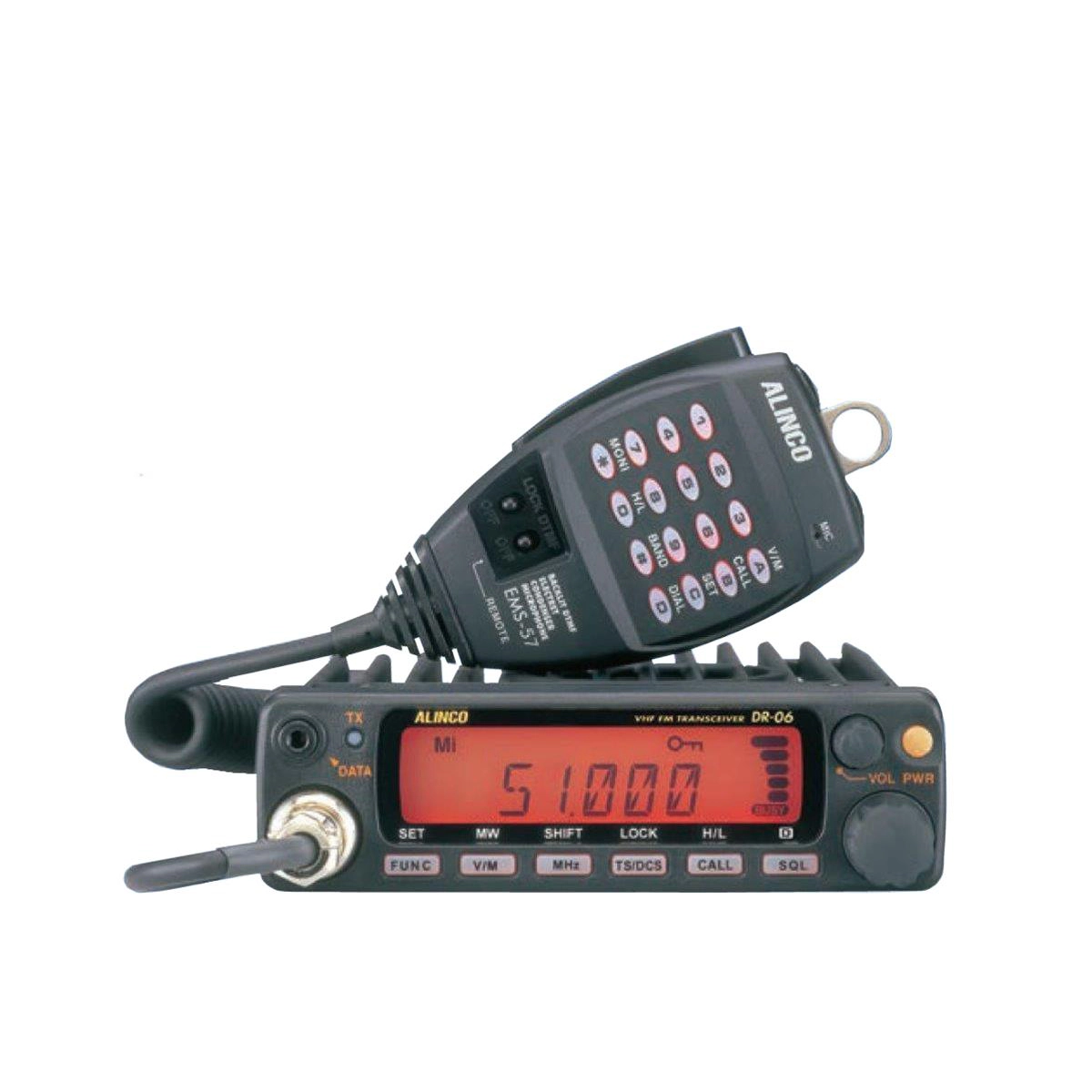

Alinco DR-06T Mobile Transceiver
MPN: DR-06T
$410.00
Special Order
Out of Stock (On Order)
Get notified when this product is back in stock
- Description
- Additional information
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
Features of DR-06T
- Revised NEW circuit to be compliant to RoHS/Lead-free order in EU.
- Same key-operations as DR-135-435 series mobile radios.
- EJ-41U internal TNC board is available as an option for 1200/9600bps packet, no need to remove mic for packet operation.
- 50 watts, H(50W)/M(20W)/L(5W) power settings.
- 100 memory channels.
- Front panel data port
- Rear panel DSUB9 computer connection
- CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards
- Clean, clear Alinco audio
- Super-wide 7 character alphanumeric display
- Wide and narrow FM modes (16K0 & 8K50F3E)
- Theft alarm feature
- A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!
- Stays in mode you select (voice/packet) through power off cycles
- Ten autodial memories
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 5.58 × 6.83 × 1.57 in |
| Brand | Alinco |
Specifications
Alinco DR-06T Specs
| General | |
|---|---|
| Frequency range: | TX(T): 50~53.995MHz
RX(T): 40~69.995MHz |
| Operating mode | 16K0F3E (FM)/8K50F3E (NFM)
F1(9600bps)/F2(1200bps)/10F3 optional with EJ-41U/EJ-47U on DR-06T |
| Channel steps | 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz |
| Memory channel | 100 channels + 1 quick recall (CALL) |
| Antenna impedance | 50 ohm unbalanced |
| Frequency stability | +/- 5 ppm |
| Microphone impedance | 12K ohm |
| Current drain | Transmit: approx. 8.0 A
Receive: approx. 600 mA (Max) 400 mA (Squelched) |
| Usable temperature range | -10 – +60c (14 – 140F) |
| Dimensions (w/o projection) | 140(W) x 40(H) x 174(D) mm 5.59″(W) x 1.57″(H) x 6.85″(D) |
| Weight: | Approx. 1.0Kg (35.3oz) |
| CTCSS tone | encoder/decoder 39 tones |
| Digital Coded Squelch | encoder/decoder 104 codes |
| Transmitter | |
| Power output: (Approx.value) |
Approx. 50W / 10W(HI) Approx. 20W / 5W(MID) Approx. 5W /2W(LOW) |
| Modulation system | Variable reactance frequency modulation |
| Spurious emission: | Less than -60 dB or less |
| Maximum frequency deviation | +/- 5 KHz (FM) / +/- 2.5 KHz (NFM) |
| Receiver | |
| System: | Double-conversion superheterodyne |
| Sensitivity: | Less than -12.0dBu |
| Intermediate frequency: | 1st IF 10.7 MHz, 2nd IF 450 KHz |
| Selectivity: | -6dB: +/-12KHz or more (FM) -60dB: +/-28KHz or less -6dB: +/-6KHz or more (NFM) -60dB: +/-16KHz or less |
| Audio output power | More than 2W(8ohm 10%THD) |
| Optional Accessories | |
| Microphones | EMS-53 Plain microphone EMS-57 DTMF/Remote microphone |
| Digital voice unit | EJ-47U |
| TNC unit | EJ-41U |
| DC Power supply | DM330MVT (120VAC) 30A switching DM330MVE (240VAC) 25A switching |
Package Includes
In the Box:
- DR-06T Transceiver
- EMS-57 DTMF Microphone
- Mounting Bracket w/screw kit
- DC Power Cable (ADUA38)
- Mobile microphone holder
- Alarm Cable
- Instruction manual
