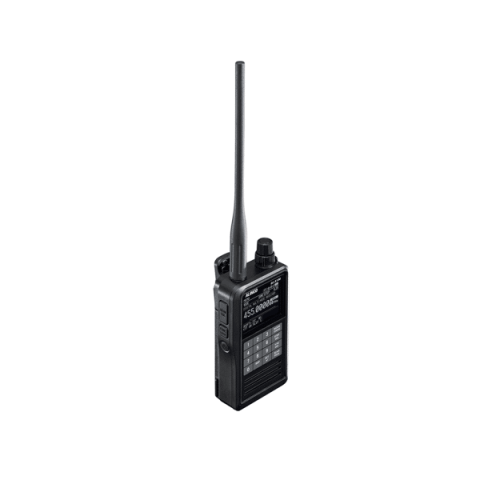

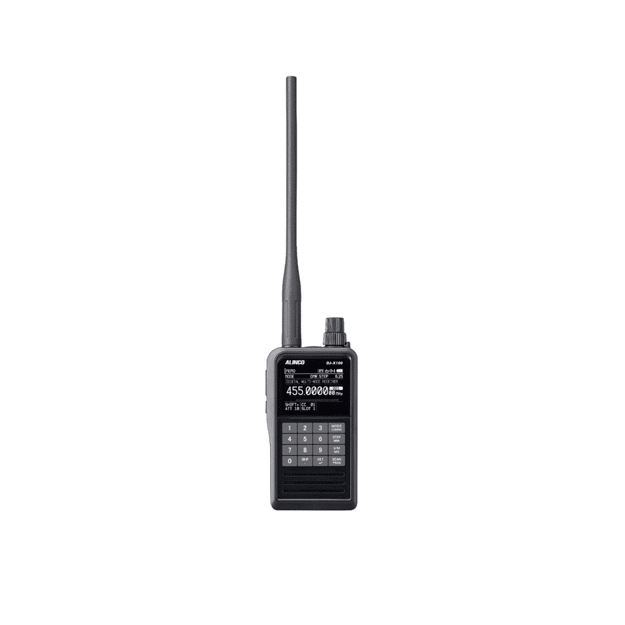

Alinco DJ-X100T Digital Multi-Mode Portable Receiver

Alinco DJ-X100 Digital Multi-Mode Receiver Features

• Intuitive operation with an easy-to-understand operation system
  The setting menu is operated by dialing and the Enter key, and operation guide icons are displayed at the bottom of the screen. The hierarchical, easy-to-understand structure provides both multifunctionality and gentle operability.
• USB Type-C port
  Charging with an USB adapter (approx. 5 hours) or connection to a PC is now possible with only the included USB cable. It can also be recharged with a portable battery charger, so it can be used together with the optional dry cell battery case for long-time field reception.
• Instrument-inspired design and easy-to-read color TFT LCD
  A simple design reminiscent of a measuring instrument is adopted. The numeric keypad is finished smartly with membrane switches, and the screen display uses a 2.0-inch color TFT LCD with 320 x 240 pixels to display various information in a surprisingly easy-to-read manner. The display color can be freely specified using RGB values for the screen and text. The display color can be freely specified using RGB values for the screen and text. No matter what the color, the battery consumption is the same.
• Equipped with a FM radio monitor
  A dedicated IC is used for FM radio reception, allowing users to enjoy FM radio broadcasts when there is no communication. When a signal is received, the radio volume can be automatically lowered to make it easier to hear communications.
• Receiving Modes
  Analog Voice : AM / NAM / FM (20kHz) / NFM (12.5kHz) / FM radio broadcasts
  Digital Voice : DCR / NXDN / DMR (Tier 1/2) / D-STAR / C4FM (DN) / dPMR
  DATA : compatible FSK DATA signals (AIS and ACARS modes show texts and locations information on the display)
• SDR configuration with low-current-consumption DSP
  A low-current-consumption DSP is used for demodulation processing of digital AND analog signals.
• Find the nearest radio station with GPS
  The GPS receiver is compatible with MICHIBIKI, GALILEO and GLONASS, and the “in-range search” function,which calls up only the memory channels of radio stations whose longitude and latitude are registered in advance.
• Equipped with 999 high-function memory channels
  The 999 channel memory system supports advanced memory channel operation by registering a wide variety of data,including communication settings, memory names with 14 double-byte characters (28 single-byte characters), location information, and multiple registrations in 26 banks. (The ch 001 is used for priority-scan function.)
• Position Display mode displays stations’positions on the screen
  GPS position information and the position information contained in the received data signal are analyzed to display the other party’s position and heading. AIS mode (position information transmitted by the vessel in real time) displays the vessel’s position, direction of travel, and distance from the receiving location.
• Editing and position display software
  Utility software for memory, bank, and various scan-link settings and name entry, as well as location display software that allows location information to be overlaid on a map, will be distributed free of charge from the Alinco website. The 12 kHz IF output (W/N) used by third-party receiver software is also supported.

AND MORE—

• Programmed scans can be freely set up to 50 pairs, which can be connected to form up to 20 sets of links, allowing for a variety of scans.
• Timer skip, which is automatically cancelled after a specified period of time has elapsed.
• Priority scan that operates even during scanning to ensure that the desired signal is not missed.
• Convenient backlight control, such as turning on when scanning is stopped or when audio is output.
• Offset step for easy step switching
• CTCSS and DCS decoding including reverse.
• Analog tones/codes and DCR/NXDN user codes are automatically analyzed, received and displayed.
• 9 status of VFO/Memory, Scan, Setting screens, etc. can be instantly recalled with a long press of a key.
• Message display function that automatically displays text information when received.
• Large-diameter speakers and BTL amplifiers for high volume
• Commercially available stereo earphones usable (monaural audio)

* Cellular frequencies blocked on all models.
* Inversion-scramble decoder is available in E-version only

Indicative battery duration (Approx):

• Condition : RX 6sec, Stand-by 54sec Battery save ON.
  Battery pack / Dry cell battery case.
• GPS/FM broadcasting : Off 16 hours / ON 7 hours
• GPS : On (FM off) 13 hours / 6 hours
• FM : On (GPS off) 12 hours / 5 hours

* Operating times may vary subject to usage and settings. High-grade alkaline cells recommended.
