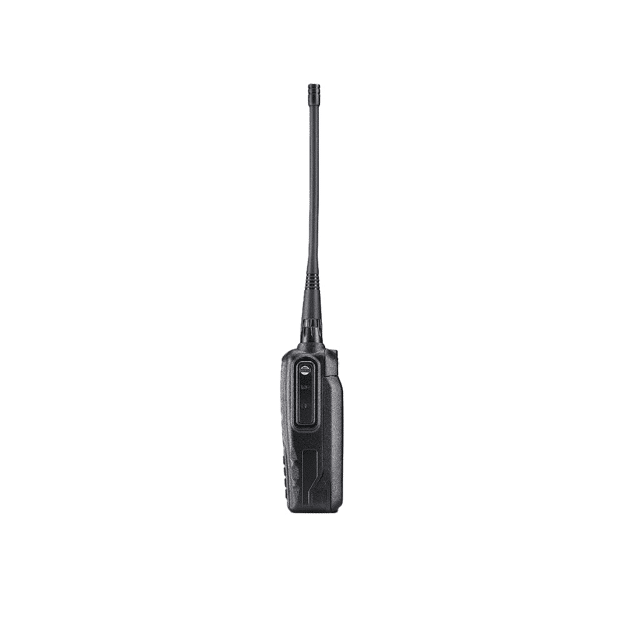

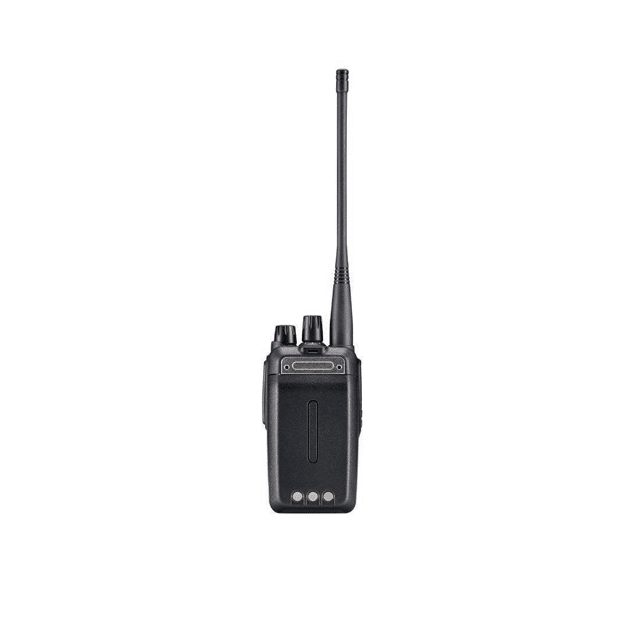

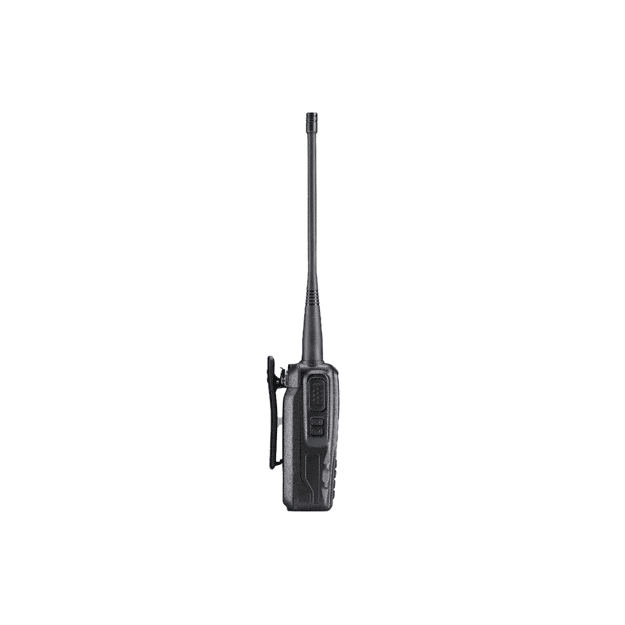

Alinco DJ-VX50T VHF/UHF FM Dual Band Handheld Transceiver
$159.00
In stock
Full of advanced features, the DJ-VX50 offers Professional-grade operation and powerful 5W (VHF) / 4W (UHF) output. In a compact IP67 dust/water proof body, CTCSS, DTMF, DCS are standard, along with a variety of tone bursts for repeater access or selective calling. Convenience features include direct frequency input, alphanumeric channel labels and 200 memory channels that can each store operating parameters. In addition, DJ-VX50 sports VHF AM aircraft, FM broadcast and NOAA Weather Channel receiver for an extra listening pleasure! A Li-lon battery pack and a stand charger are standard, adding power and convenience. The DJ-VX50 places one of the world’s most versatile transceivers at your command, at ALINCO’s affordable price!
ALINCO DJ-VX50T Features
- 3 Color-selectable display and keypad
- Semi-Duplex Dualband,V/V-U/U, FM broadcast, VHF AM aircraft and NOAA Weather Channel receiver
- 200 memory channels, any mix of VHF/UHF
- Internal VOX
- Alphanumeric channel labels
- Direct frequency input from keypad
- Auto-repeater shift setting
- Variety of scanning modes
- Wide and narrow FM TX/RX
- High power Li-Ion battery pack, stand charger and beltclip included
- 1800mAh Li-ion battery
- IP67 Rated (Dust and Water Protection)
- FCC Certified
Advanced Features
- Professional-grade signaling features include CTCSS, DTMF, DCS, 2Tone/5Tone, Tone-burst and more with Talk-around, Reverse, BCLO and TOT
- Variety of scanning modes including Programming, CTCSS/DCS Tone, VFO, FM Broadcast, NOAA channels and Memory with skip features
| Brand | Alinco |
|---|---|
Specifications
ALINCO DJ-VX50T SPECIFICATIONS |
|
| RX Frequency range: | 136-174MHz, 400-470MHz |
| WFM: 76-107.95MHz/ AM: 118-135.995MHz FM: 162.400 – 162.550MHz |
|
| TX Frequency coverage: | 144-148MHz. 420-450MHz |
| Modulation: | F3E(16K0F3E / 11K0F3E / RX only WFM, AM) |
| Frequency step: | 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz |
| Antenna impedance: | 50 ohm unbalanced |
| Frequency stability: | ±2.5ppm |
| Supply voltage: | 7.4V (Battery) |
| Current consumption: (Typical value) |
1500mA TX / 300mA receive at Max audio output 80mA squelched |
| Temperature range: | -4°F~131°F (-20°C ~ +55°C) |
| Ground: | Negative |
| Dimensions: | 4.65×2.32×1.50 in (118×59×38 mm) with Battery pack/ant |
| Weight: | Approx. 230g or 8.11oz inclusive of battery pack and antenna |
TRANSMITTER |
|
| Power output: | Approx. 5W (VHF) 4W (UHF) / 2W / 1W |
| Spurious emission: | -60dB or less |
| Max. deviation: | FM : +/- 5KHz / +/- 2.5KHz |
RECEIVER |
|
| System: | Direct-conversion |
| Sensitivity: | Wide -12dBu / Narrow -9dBu |
| Adjacent Channel Selectivity | Wide More than 65dB / Narrow More than 60dB |
| Audio output: | 1W (10% distortion) |
Package Includes
In the Box:
- DJ-VX50T Transciever
- EBP-101 Li-ion Battery Pack 1800mAh 7.4V
- EDC-219 Li-Ion Rapid Charger
- EDC-305 AC Adapter
- EA-253 Antenna (SMA-P)
- EBC-51 Beltclip
- User Manual
