Alaskan Arrow Handheld Antenna – 146/347-14

The Alaskan Arrow handheld antenna is meant for those who live in the higher latitudes and need a little more gain.

Please note: Due to the size of this antenna, additional shipping charges will apply.

Specifications

“BP” Stands for Back Pack – Two-piece Boom – Split boom.

The Arrow II line of Antennas has been engineered to provide maximum gain and efficiency in the smallest practical size & weight.

Only About 25 oz. (split boom add 1 oz.)

The 2 in-line Gamma Matches (shown below) are pre-assembled & pre-tuned. One connector for VHF and one for UHF. Only female BNC is available.

(Diplexer & Cables included with 10W Models only).

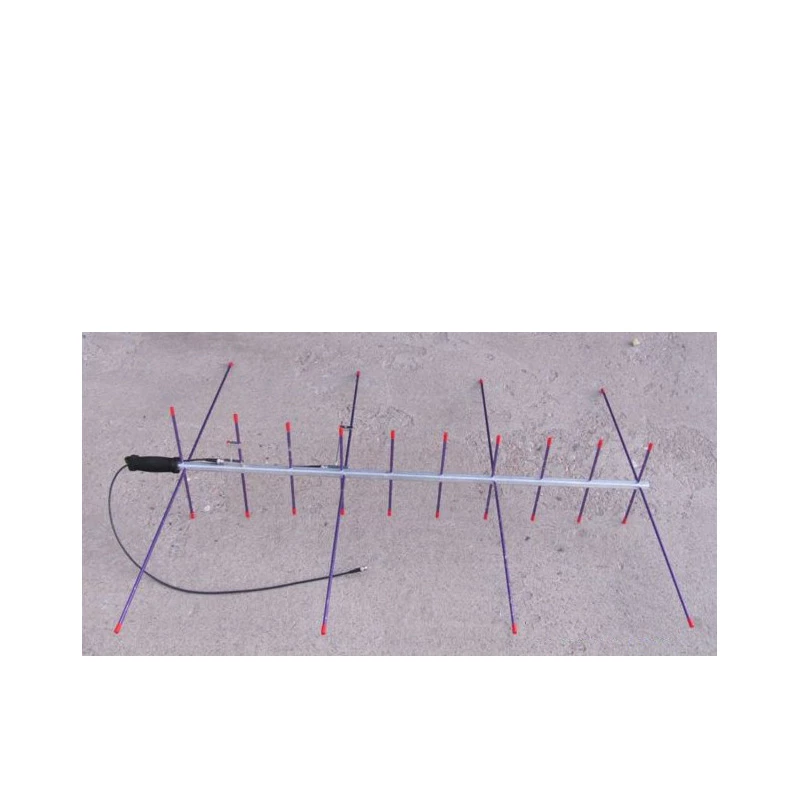

The Boom is 3/4″ square (with rounded corners) and 53 3/4″ long.

Model BP Split Boom longest part is less than 22 inches long. The boom is split in two places.

Note the big black foam grip for comfortable holding.

Under the foam grip, the boom is drilled & tapped with a 1/4-20 hole for most camera tri-pods.

Boom & elements all have plastic tips for safety.

Because the antenna is hand held, power should be kept to less than 10 watts maximum. If mounted and away from people, maximum power is 150 watts.
